CRANKCASE
GSX750F KATANA 1993 (P) USA (E03)

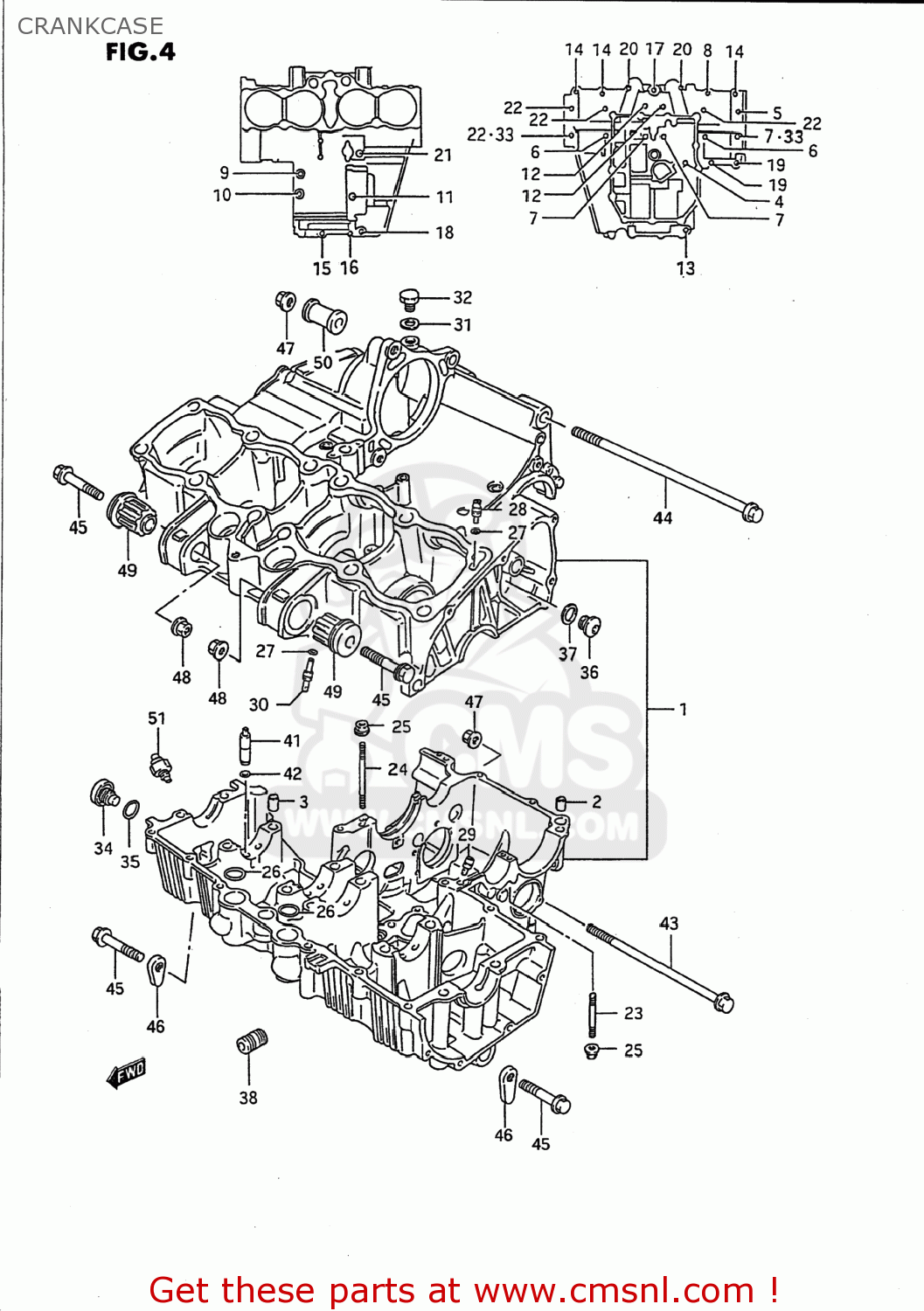

Crankcase diagram GSX750F KATANA 1993 (P) USA (E03)
CRANKCASE GSX750F KATANA 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130020892
ref: 1-1
11300-20894
CRANKCASE SET
€ 2,191.50
1-2
1130020893
ref: 1-2
11300-20894
CRANKCASE SET
€ 2,191.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4-1
0910306067
ref: 4-1
BOLT(6X105)
€ 3.50
4-2
0910306163
ref: 4-2
BOLT(6X105)
€ 4.00
5
0910308097
ref: 5
BOLT(8X105)
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
€ 3.00
8-1
0151706354
ref: 8-1
01550-0635A
BOLT 6X35
€ 2.50
8-2
0151706358
ref: 8-2
01550-06357
BOLT 6X35
€ 2.50
8-3
0155006353
ref: 8-3
01550-0635A
BOLT
€ 2.50
9-1
0711006405
ref: 9-1
07130-0640B
BOLT
€ 3.50
9-2
0713006408
ref: 9-2
07130-06407
BOLT
€ 2.50
9-3
0713006403
ref: 9-3
07130-0640B
BOLT
€ 3.50
10-1
0711006505
ref: 10-1
07130-0650B
BOLT
€ 3.00
10-2
0713006508
ref: 10-2
07130-0650B
BOLT
€ 3.00
10-3
0713006503
ref: 10-3
07130-0650B
BOLT,CL.COVER
€ 3.00
11-1
0711006655
ref: 11-1
07130-0665B
BOLT
€ 4.00
11-2
0713006658
ref: 11-2
07130-0665B
BOLT
€ 4.00
11-3
0713006653
ref: 11-3
07130-0665B
BOLT
€ 4.00
12-1
0711008655
ref: 12-1
07130-0865B
BOLT
€ 3.50
12-2
0713008658
ref: 12-2
07130-0865B
BOLT
€ 3.50
12-3
0713008653
ref: 12-3
07130-0865B
BOLT
€ 3.50
13-1
0151708605
ref: 13-1
01550-0860A
BOLT 8X60
€ 3.50
13-2
0151708608
ref: 13-2
01550-08607
BOLT
€ 3.50
13-3
0155008603
ref: 13-3
01550-0860A
BOLT
€ 3.50
14-1
0151706354
ref: 14-1
01550-0635A
BOLT 6X35
€ 2.50
14-2
0151706358
ref: 14-2
01550-06357
BOLT 6X35
€ 2.50
14-3
0155006353
ref: 14-3
01550-0635A
BOLT
€ 2.50
15-1
0151706404
ref: 15-1
01550-0640A
BOLT
€ 2.00
15-2
0151706408
ref: 15-2
01550-06407
BOLT
€ 2.50
15-3
0155006403
ref: 15-3
01550-0640A
BOLT
€ 2.00
16
0155006407
ref: 16
BOLT
€ 2.50
17-1
0151706505
ref: 17-1
01550-0650A
BOLT 6X50
€ 2.00
17-2
0151706508
ref: 17-2
01550-06507
BOLT ,6X50
€ 2.00
17-3
0155006503
ref: 17-3
01550-0650A
BOLT
€ 2.00
18-1
0151706605
ref: 18-1
01550-0660A
BOLT ,6X60
€ 2.50
18-2
0151706608
ref: 18-2
01550-06607
BOLT (6X60)
€ 2.50
18-3
0155006603
ref: 18-3
01550-0660A
BOLT
€ 2.50
19-1
0151706557
ref: 19-1
01550-06557
BOLT
€ 2.50
19-2
0155006553
ref: 19-2
01550-0655B
BOLT, HYDRAULIC UNIT NO.2
€ 2.00
20-1
0151706705
ref: 20-1
01550-0670B
BOLT
€ 2.50
20-2
0151706708
ref: 20-2
01550-06707
BOLT (6X70)
€ 3.00
20-3
0155006703
ref: 20-3
01550-0670B
BOLT
€ 2.50
21-1
0151706805
ref: 21-1
01550-06803
BOLT
€ 2.50
21-2
0151706808
ref: 21-2
01550-06807
BOLT (6X80)
€ 3.00
21-3
0155006803
ref: 21-3
BOLT
€ 2.50
22
0910308105
ref: 22
BOLT(8X95)
€ 3.00
23
0142106408
ref: 23
01421-0640A
STUD BOLT
€ 2.50
24
0142106608
ref: 24
01421-0660A
STUD BOLT
€ 2.50
25-1
0915906017
ref: 25-1
08319-31067
NUT
€ 2.50
25-2
0831610063
ref: 25-2
08316-1006B
NUT
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
€ 2.00
28
0949314002
ref: 28
JET,AIR
€ 8.00
29
0949324010
ref: 29
JET
€ 12.00
30
0949380008
ref: 30
JET,OIL GALLERY
€ 8.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
€ 3.50
33
0916808021
ref: 33
GASKET(8.5X17X2.3) (NAS)
€ 3.00
34
0924816003
ref: 34
09248-16007
PLUG
€ 16.50
35
0928017002
ref: 35
O RING(D:2.4,ID:16.8)
€ 3.50
36-1
0924814004
ref: 36-1
09248-14010
PLUG
€ 5.00
36-2
0924814005
ref: 36-2
PLUG,14X12
€ 5.00
37
0916814002
ref: 37
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
38
1659106B00
ref: 38
16591-06B01
UNION,OIL STAND
€ 6.00
39
1222848B000E0
ref: 39
BEARING,CRANK THRUST(GREEN)
€ 8.00
39
1222848B000E0
ref: 39
BEARING,CRANK THRUST(GREEN)
€ 8.00
40-1
1222848B000C0
ref: 40-1
BEARING,CRANK THRUST(RED)
€ 7.50
40-1
1222848B000C0
ref: 40-1
BEARING,CRANK THRUST(RED)
€ 7.50
40-2
1222848B000E0
ref: 40-2
BEARING,CRANK THRUST(GREEN)
€ 8.00
40-2
1222848B000E0
ref: 40-2
BEARING,CRANK THRUST(GREEN)
€ 8.00
40-3
1222848B000H0
ref: 40-3
BEARING,CRANK THRUST(BLACK)
€ 7.50
40-3
1222848B000H0
ref: 40-3
BEARING,CRANK THRUST(BLACK)
€ 7.50
41
1643027A00
ref: 41
VALVE ASSEMBLY,PISTON OIL
€ 21.00
42
0928005007
ref: 42
O RING(D:1.2,ID:4.7)
€ 2.00
43-1
0910310237
ref: 43-1
BOLT(10X130)
€ 5.50
43-2
0910310122
ref: 43-2
BOLT(10X130)
€ 9.50
44
0910310151
ref: 44
BOLT(10X175)
€ 14.50
45-1
0198710555
ref: 45-1
01580-1055B
BOLT
€ 3.50
45-2
0158010553
ref: 45-2
01580-1055B
BOLT
€ 3.00
46
0915910020
ref: 46
NUT
€ 7.50
47-1
0915910044
ref: 47-1
09159-10115
NUT (10MM)
€ 4.00
47-2
0915910058
ref: 47-2
09159-10115
NUT
€ 4.00
48-1
0831616105
ref: 48-1
08316-1010B
NUT
€ 2.00
48-2
0831610103
ref: 48-2
08316-1010B
NUT
€ 2.00
49
1168106B00
ref: 49
BUSH,ENGINE MOUNTING
€ 26.00
50-1
1161106B01
ref: 50-1
11610-20C00
SPACER,ENGINE MOUNT
€ 10.00
50-2
1161020C00
ref: 50-2
SPACER,ENGINE MOUNT(L27)
€ 10.00
51-1
3782033200
ref: 51-1
37820-33D10
SWITCH ASSEMBLY
€ 29.00
51-2
3782033D00
ref: 51-2
37820-33D10
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
