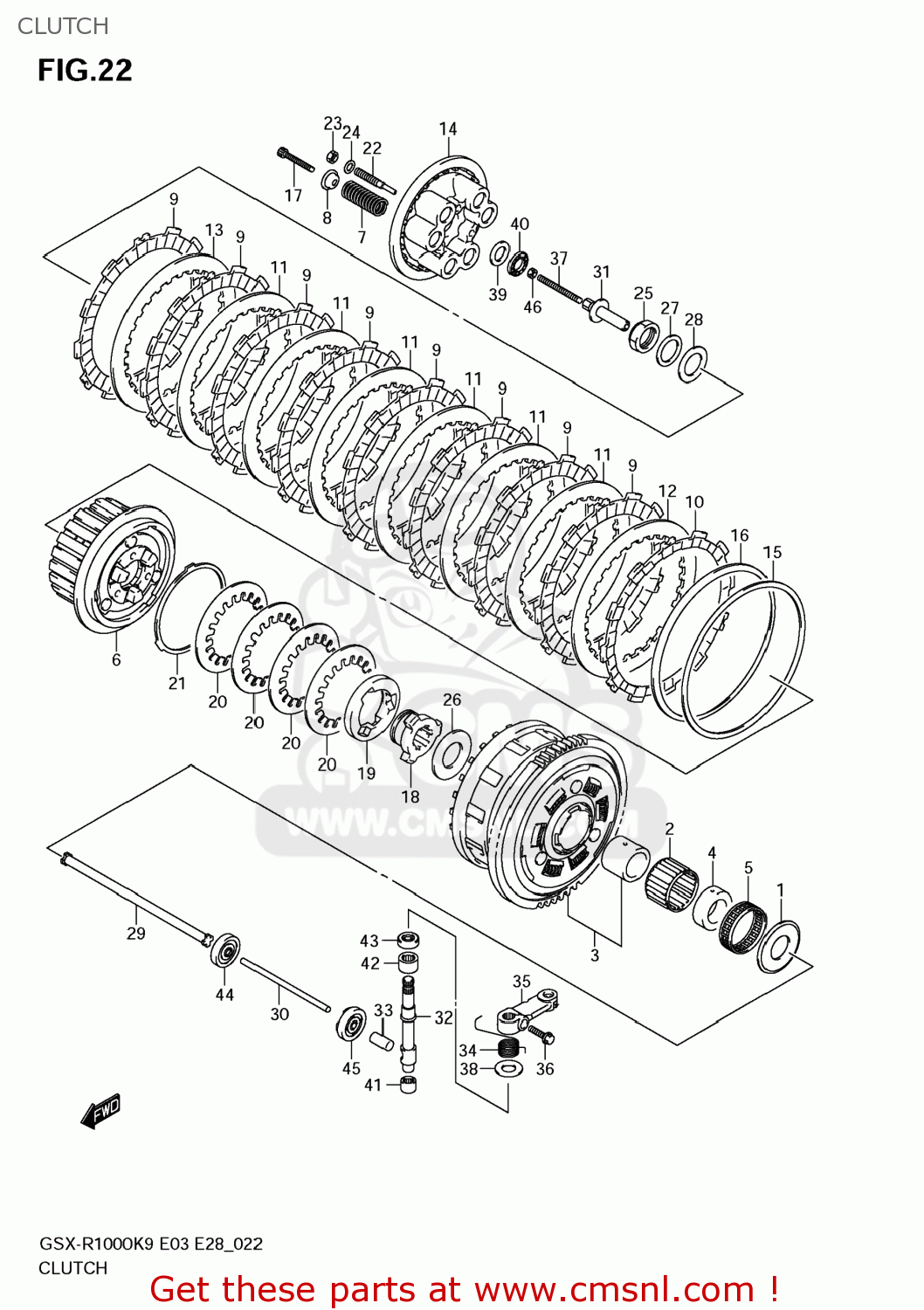

CLUTCH

ref

part #

description

quantity

1

0916025073
ref: 1

WASHER(25X54X2.4)

€ 8.50

2

0926335015
ref: 2

BEARING(35X40X26.8)

€ 20.00

3

2120047810
ref: 3

GEAR ASSY,PRI DRIVEN

€ 485.50

4

2125301H10
ref: 4

SPACER,OIL PUMP DRIVE SPROCKET

€ 21.50

5

0926335045
ref: 5

BEARING(35X40X12)

€ 11.50

6

2141041G40
ref: 6

HUB,CLUTCH SLEEVE

€ 205.00

7

2141347H00
ref: 7

SPRING,CLUTCH

€ 9.00

8

2141429F00
ref: 8

WASHER

€ 4.50

9

2144142F20
ref: 9

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 14.50

10

2144242F10
ref: 10

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 13.50

11

2145147H00
ref: 11

PLATE,CLUTCH DRIVEN NO.1 (NAS)

€ 10.00

12

2145147H10
ref: 12

PLATE,CLUTCH DRIVEN NO.2 (NAS)

€ 7.00

13

2145147H20
ref: 13

PLATE,CLUTCH DRIVEN NO.3 (NAS)

€ 10.00

14

2146241G10
ref: 14

DISC,CLUTCH PRESSURE

€ 57.50

15

2147102F20
ref: 15

SEAT,WAVE WASHER

€ 11.50

16

2147202F20
ref: 16

WASHER,CLUTCH PLATE WAVE

€ 16.00

17

2148241G10
ref: 17

BOLT,CLUTCH SPRING

€ 3.00

18

2161141G20
ref: 18

CAM,CLUTCH DRIVE

€ 98.50

19

2161241G20
ref: 19

CAM,CLUTCH DRIVEN

€ 82.00

20

2162141G00
ref: 20

WASHER,CAM REACTION WAVE

€ 12.00

21

2162441G20
ref: 21

WASHER,CAM REACTION SEAT

€ 13.50

22

2162241G10
ref: 22

LIFTER,CLUTCH PRESSURE DISC

€ 11.00

23

2162341G00
ref: 23

NUT,CL PRESS DISC LIFTER LOCK

€ 2.00

24

0918108139
ref: 24

SHIM(8.8X14X1)

€ 1.50

25

0915924010
ref: 25

NUT

€ 11.00

26

0916025056
ref: 26

WASHER(25X50X2.5)

€ 9.50

27

0916025077
ref: 27

WASHER(25X41X2.5)

€ 6.50

28

0916424008
ref: 28

WASHER

€ 3.00

29

2311027A00
ref: 29

ROD,CLUTCH

€ 17.00

30

2311147H00
ref: 30

ROD,CLUTCH PUSH,L

€ 17.00

31

2312141G20
ref: 31

PICE,CLUTCH PUSH

€ 30.50

32

2312241G00
ref: 32

CAMSHAFT,CLUTCH RELEASE

€ 36.50

33

2312341G00
ref: 33

CAP,CLUTCH PUSH ROD

€ 9.00

34

2312541G00
ref: 34

SPRING,CLUTCH RELEASE RETURN

€ 3.00

35

2327141G30
ref: 35
23271-41G31

ARM,CLUTCH REL

€ 47.50

36

0910306223
ref: 36

BOLT(6X20)

€ 2.50

37

0913406015
ref: 37

SCREW(6X73)

€ 5.50

38

0916010020
ref: 38

WASHER(10.5X24X1)

€ 2.00

39

0916015045
ref: 39

WASHER(15.5X28X1)

€ 4.00

40

0926315003
ref: 40

BEARING(15X28X2)

€ 7.00

41

0926310014
ref: 41

BEARING(10X14X10)

€ 12.00

42

0926312027
ref: 42

BEARING(12X18X12)

€ 6.00

43

0928210012
ref: 43

SEAL,OIL(10X20X6)

€ 7.50

44

0928306010
ref: 44

SEAL,OIL(6X34X10.5)

€ 14.00

45

0928510004
ref: 45

SEAL,OIL(10X17X5)

€ 3.50

46

083100006A
ref: 46

NUT

€ 2.00

all assemblies
