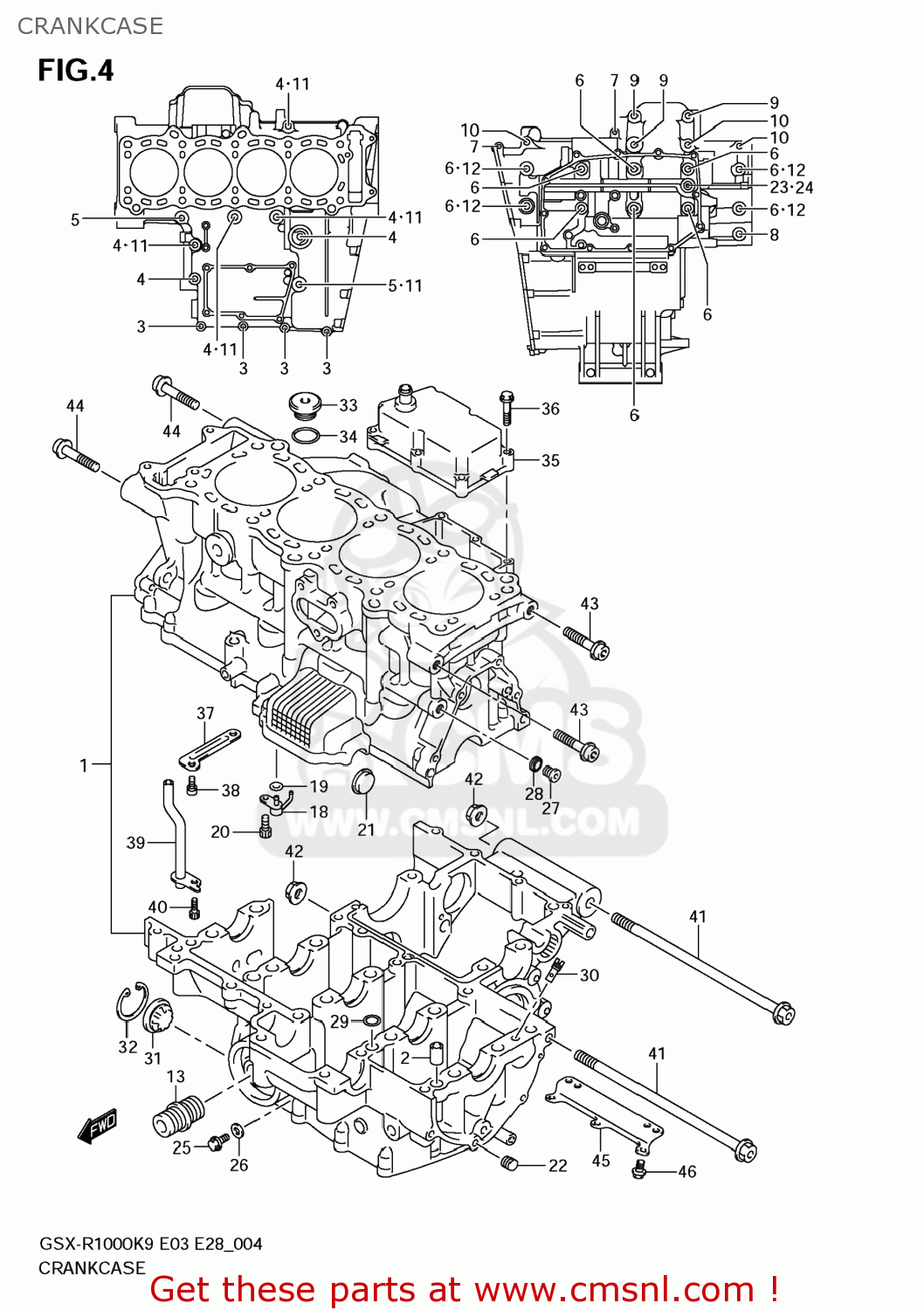

CRANKCASE

ref

part #

description

quantity

1

1130047880
ref: 1

CRANKCASE ASSY

€ 3,387.00

2

1131933E50
ref: 2

PIN,CRANKCASE

€ 4.00

3

015470635A
ref: 3

BOLT

€ 3.00

4

015500855A
ref: 4

BOLT

€ 2.00

5

015500865A
ref: 5

BOLT

€ 3.00

6

0910309012
ref: 6

BOLT(9X95)

€ 7.00

7

015470645A
ref: 7

BOLT

€ 2.50

8

015500835A
ref: 8

BOLT

€ 3.50

9

015500855A
ref: 9

BOLT

€ 2.00

10

015500865A
ref: 10

BOLT

€ 3.00

11

0916808016
ref: 11

GASKET(8.2X14X1) (NAS)

€ 1.00

12

0916810031
ref: 12

GASKET(10.2X20X2).3 (NAS)

€ 2.00

13

1659106B01
ref: 13

UNION,OIL STAND

€ 6.00

14

0928000045
ref: 14

O RING(D:3,ID:102)

€ 37.50

14

0928000045
ref: 14

O RING(D:3,ID:102)

€ 37.50

15

0913906151
ref: 15

BOLT(6X20)

€ 2.50

15

0913906151
ref: 15

BOLT(6X20)

€ 2.50

16

1222848B000E0
ref: 16

BEARING,CRANK THRUST(GREEN)

€ 8.00

17-1

1222848B000B0
ref: 17-1

BEARING,CRANK THRUST(BROWN)

€ 7.50

17-2

1222848B000C0
ref: 17-2

BEARING,CRANK THRUST(RED)

€ 7.50

17-3

1222848B000D0
ref: 17-3

BEARING,CRANK THRUST(YELLOW)

€ 7.50

17-4

1222848B000E0
ref: 17-4

BEARING,CRANK THRUST(GREEN)

€ 8.00

17-5

1222848B000F0
ref: 17-5

BEARING,CRANK THRUST(BLUE)

€ 7.50

17-6

1222848B000G0
ref: 17-6

BEARING,CRANK THRUST(ORANGE)

€ 7.50

17-7

1222848B000H0
ref: 17-7

BEARING,CRANK THRUST(BLACK)

€ 7.50

18

1139021H00
ref: 18

JET,PISTON COOLING

€ 26.50

19

0928004004
ref: 19

O RING(D:1.2,ID:4)

€ 2.00

20

0910606075
ref: 20

BOLT(6X12)

€ 2.50

21

0924123005
ref: 21

PLUG

€ 10.00

22

0924605006
ref: 22

PLUG(1/8PT,H:5.5)

€ 3.50

23

0924812004
ref: 23

PLUG(L:12)

€ 5.50

24

0916812002
ref: 24

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

25

015470612A
ref: 25

BOLT

€ 2.00

26

0916806018
ref: 26

GASKET(6.2X13X1.2) (NAS)

€ 2.00

27

0924810010
ref: 27

PLUG(10X10)

€ 4.00

28

0916810002
ref: 28

GASKET(10X14X3.6) (NAS)

€ 2.00

29

0928008012
ref: 29

O RING(D:1.9,ID:7.8)

€ 4.00

30

0949328012
ref: 30

JET(140)

€ 8.00

31

1197133210
ref: 31

LENS,OIL LEVEL CHECK

€ 13.50

32

083314130A
ref: 32

CIRCLIP

€ 2.00

33

0925926011
ref: 33

PLUG(26X9)

€ 8.50

34

0928022008
ref: 34

O RING(D:3.1,ID:22.7)

€ 2.50

35

1138047H00
ref: 35

COVER,BREATHER

€ 123.50

36

015470630A
ref: 36

BOLT

€ 2.50

37

1138247H00
ref: 37

PLATE,BREATHER OIL RETURN

€ 4.00

38

0910606075
ref: 38

BOLT(6X12)

€ 2.50

39

1138347H00
ref: 39

PIPE,BREATHER OIL RETURN

€ 39.00

40

071300612A
ref: 40

BOLT

€ 2.50

41

0910312110
ref: 41

BOLT(12X220)

€ 15.50

42

0915912054
ref: 42

NUT

€ 8.00

43

0910610089
ref: 43

BOLT(10X45)

€ 12.00

44

0910610090
ref: 44

BOLT(10X55)

€ 15.00

45

1132247H00
ref: 45

PLATE,CRANKCASE LWR

€ 12.00

46

0910306188
ref: 46

BOLT(6X10)

€ 2.00
