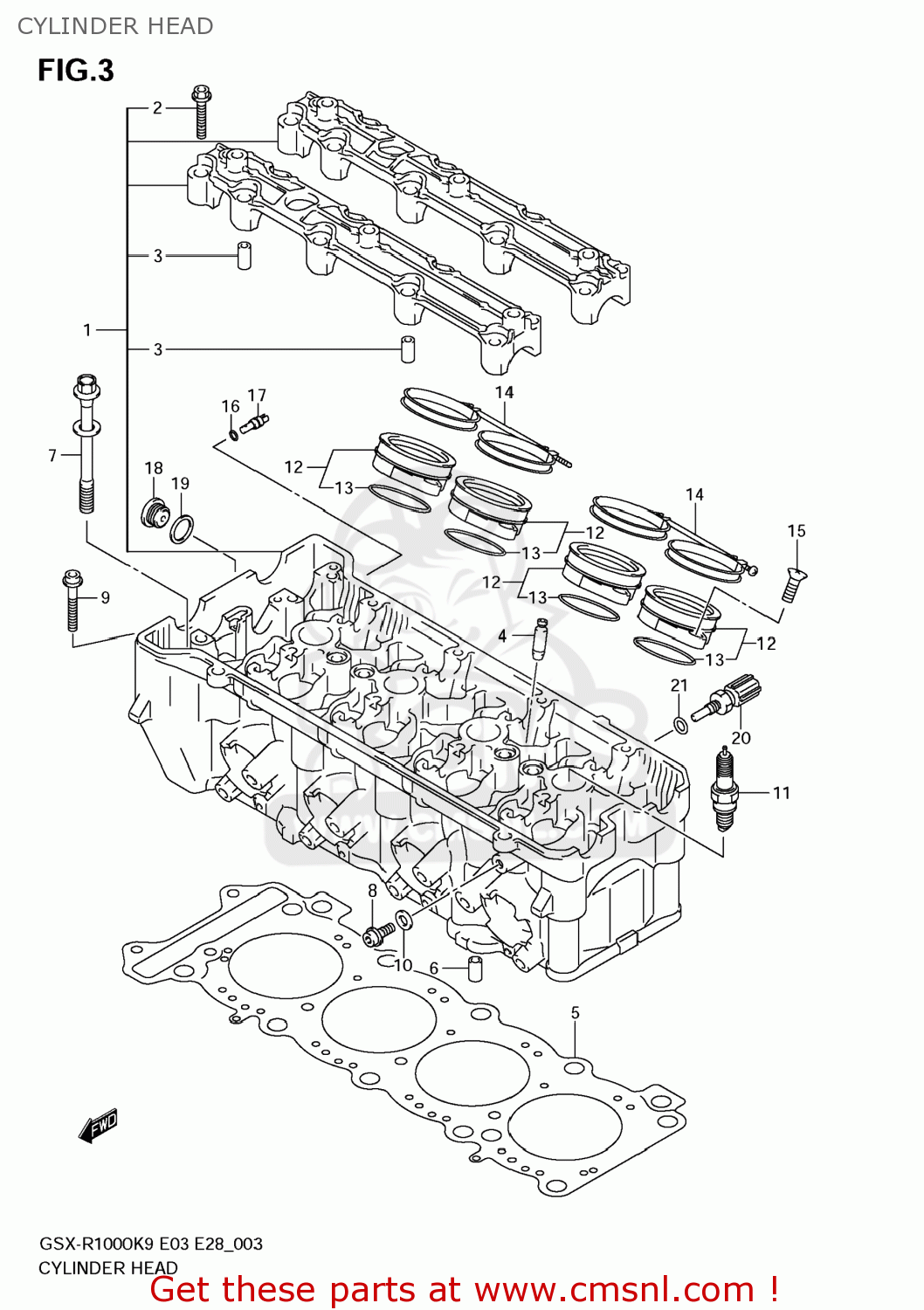

CYLINDER HEAD

ref

part #

description

quantity

1

1110047H00
ref: 1

HEAD ASSY,CYLINDER

€ 2,785.50

2

0910306266
ref: 2

BOLT(6X40)

€ 2.50

3

0920608007
ref: 3

PIN(6.2X8X16)

€ 2.50

4

1111529G70
ref: 4

GUIDE,VALVE(OS:0.3)

€ 18.50

5

1114147H00
ref: 5
11141-47H01

GASKET,CYLINDE (NAS)

€ 76.50

6

0421111169
ref: 6

PIN

€ 2.00

7

1111730G00
ref: 7

BOLT,CYLINDER HEAD(L:105)

€ 8.00

8

0910306222
ref: 8

BOLT(6X12)

€ 2.00

9

071200650A
ref: 9

BOLT

€ 2.50

10

0916806023
ref: 10

GASKET(5.8X13X1.2) (NAS)

€ 2.00

11-1

0948200558
ref: 11-1

PLUG,SPARK(CR9EIA-9)

€ 21.00

11-2

0948200557
ref: 11-2

PLUG,SPARK(IU27D)

€ 21.00

11-3

0948200556
ref: 11-3

PLUG,SPARK(CR8EIA-9)

€ 20.00

11-4

0948200560
ref: 11-4

PLUG,SPARK(CR10EIA-9)

€ 13.50

11-5

0948200555
ref: 11-5

PLUG,SPARK(IU24D)

€ 20.00

11-6

0948200559
ref: 11-6

PLUG,SPARK(IU31D)

€ 13.50

12

1310147H00
ref: 12

PIPE ASSY,INTAKE

€ 42.00

13

0928048010
ref: 13

O RING(D:2.4,ID:47.2)

€ 7.00

14

1317047H00
ref: 14

CLAMP,INTAKE PIPE

€ 27.00

15

021220616B
ref: 15

SCREW

€ 2.00

16

0928004004
ref: 16

O RING(D:1.2,ID:4)

€ 2.00

17

0949332006
ref: 17

JET,OIL GALLERY(16)

€ 8.00

18

0924816012
ref: 18

PLUG,16X8

€ 4.50

19

0916816009
ref: 19

GASKET(16X22X0.8) (NAS)

€ 2.00

20

1365049X00
ref: 20

SENSOR,TEMP

€ 73.00

21

0916812017
ref: 21

GASKET(12X17X1) (NAS)

€ 2.00
