FRONT FENDER

GSXR1000 2009 (K9) USA (E03)

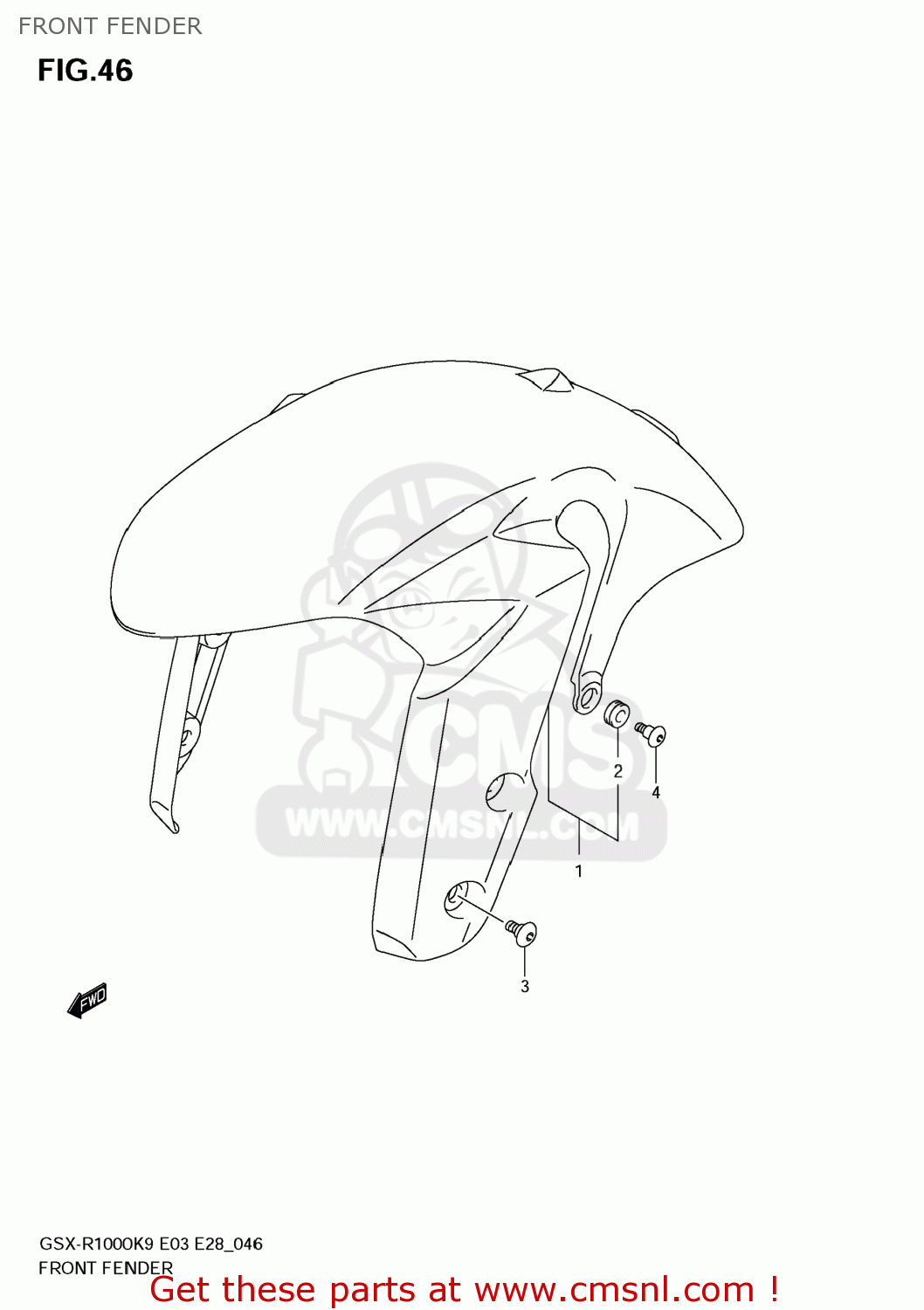

Front fender diagram GSXR1000 2009 (K9) USA (E03)

FRONT FENDER GSXR1000 2009 (K9) USA (E03)

FRONT FENDER GSXR1000 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5310047H00019
ref: 1-1

FENDER ASSY,FR(BLACK)

€ 217.50

1-2

5310047H00YBD
ref: 1-2

FENDER ASSY,FR(WHITE)

€ 217.50

1-3

5310047H00YSF
ref: 1-3

FENDER ASSY,FR(BLUE)

€ 197.50

1-4

5310047H00YMK
ref: 1-4

FENDER ASSY,FR(RED)

€ 160.00

2

0932009016
ref: 2

CUSHION

€ 2.50

3

0913906131
ref: 3

SCREW(6X16)

€ 4.00

4

0913906146
ref: 4

SCREW(6X16)

€ 3.00
