FUEL TANK FRONT COVER

GSXR1000 2009 (K9) USA (E03)

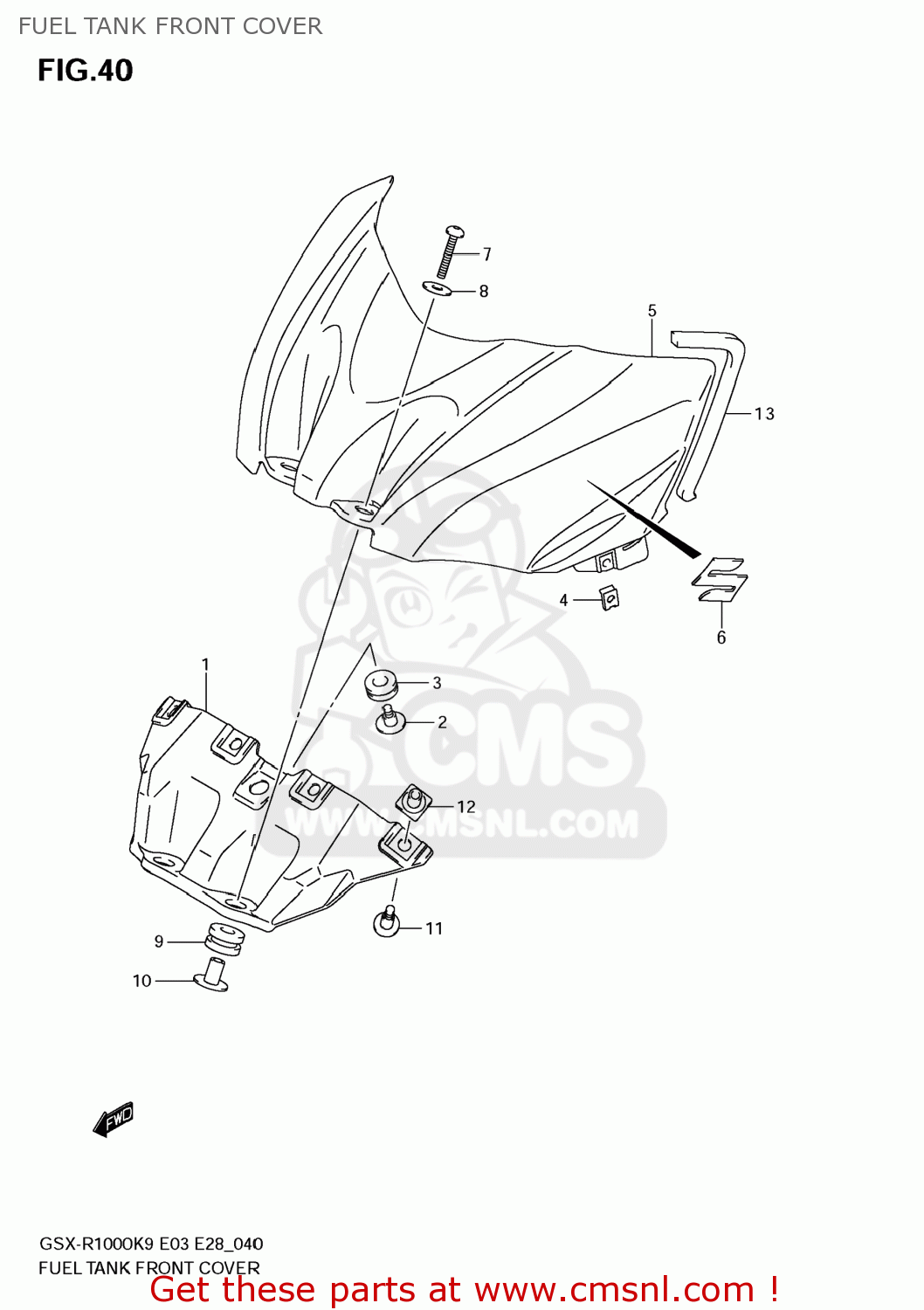

Fuel tank front cover diagram GSXR1000 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

4452147H00
ref: 1

BRACKET,FUEL TANK FR

€ 160.50

0913905078
ref: 2

SCREW(5X16.4)

€ 3.50

0932008021
ref: 3

CUSHION

€ 4.00

0914805052
ref: 4

NUT

€ 3.50

5-1

4429147H00YKV
ref: 5-1

COVER,FUEL TANK FR

€ 201.50

5-2

4429147H00YBD
ref: 5-2

COVER,FUEL TANK FR

€ 202.50

5-3

4429147H00YSF
ref: 5-3

COVER,FUEL TANK FR

€ 201.50

5-4

4429147H00YMK
ref: 5-4

COVER,FUEL TANK FR

€ 168.00

6811118G20
ref: 6

EMBLEM,S

€ 22.50

0913906105
ref: 7

SCREW(6X40)

€ 6.50

0916006054
ref: 8

WASHER(6.5X22X1.6)

€ 2.00

0932010050
ref: 9

CUSHION

€ 2.50

4451247H00
ref: 10

SPACER,FUEL TANK FR

€ 10.50

0913906181
ref: 11

SCREW(6X10)

€ 3.00

4452347H00
ref: 12

NUT(M6)

€ 5.50

4427737H00
ref: 13

CUSHION,FUEL TANK COVER

€ 4.00
