MUFFLER
GSXR1000 2009 (K9) USA (E03)

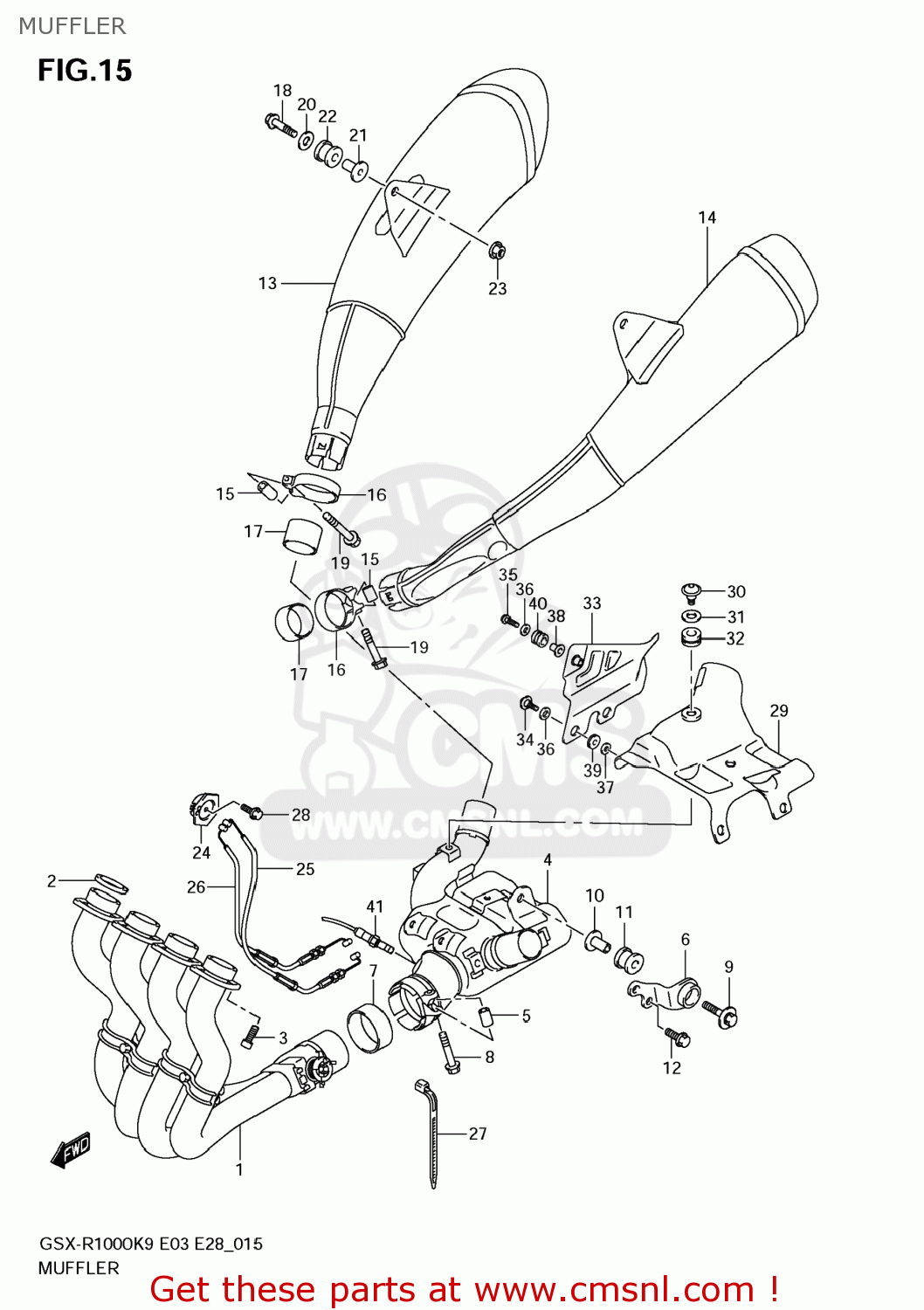

Muffler diagram GSXR1000 2009 (K9) USA (E03)
MUFFLER GSXR1000 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410047H00
ref: 1
PIPE,EXHAUST
€ 2,018.50
2
1418122D01
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 9.00
3
0910608165
ref: 3
BOLT(8X25)
€ 5.00
4
1420047H00
ref: 4
CHAMBER
€ 1,021.00
5
1445806H00
ref: 5
SPACER,MUFFLER
€ 3.00
6
1477047H00
ref: 6
BRACKET,CHAMBER SPRT
€ 21.50
7
1477121H00
ref: 7
CONNECTOR,CHAMBER
€ 18.50
8
0910308392
ref: 8
BOLT(8X40)
€ 4.00
9
0911808152
ref: 9
09118-08152-A05
BOLT 8X45
€ 5.00
10
0918008152
ref: 10
SPACER(8.6X12X24.2)
€ 6.00
11
0932012077
ref: 11
CUSHION
€ 6.50
12
015500816A
ref: 12
BOLT
€ 2.50
13
1431047H00H01
ref: 13
BODY,MUFFLER,R
€ 2,298.50
14
1434047H00H01
ref: 14
BODY,MUFFLER,L
€ 2,625.00
15
1445806H00
ref: 15
SPACER,MUFFLER
€ 3.00
16
1445921H30
ref: 16
CLAMP,MUFFLER CONNECTOR
€ 14.00
17
1477142F10
ref: 17
CONNECTOR,MUFFLER
€ 13.00
18
0910308358
ref: 18
BOLT(8X45)
€ 3.50
19
0910308392
ref: 19
BOLT(8X40)
€ 4.00
20
0916008142
ref: 20
WASHER(8.5X28X1.5)
€ 2.50
21
0918008152
ref: 21
SPACER(8.6X12X24.2)
€ 6.00
22
0932012077
ref: 22
CUSHION
€ 6.50
23
083612508A
ref: 23
NUT
€ 2.50
24
1126918G00
ref: 24
11269-18G01
PULLEY CONTROL
€ 17.00
25
1127647H00
ref: 25
CABLE,EXHAUST VALVE NO.1
€ 39.00
26
1127747H00
ref: 26
CABLE,EXHAUST VALVE NO.2
€ 39.00
27
0940714403
ref: 27
CLAMP(L:125)
€ 2.50
28
015470516A
ref: 28
BOLT
€ 2.00
29
1473147H00
ref: 29
GUARD,CHAMBER HEAT NO.1
€ 98.50
30
0913906124
ref: 30
SCREW(6X12)
€ 3.00
31
0916008043
ref: 31
WASHER(8.5X18X1)
€ 1.50
32
0932008030
ref: 32
CUSHION
€ 3.00
33
1473247H00
ref: 33
GUARD,CHAMBER HEAT NO.2
€ 67.50
34
0913906028
ref: 34
SCREW(6X20)
€ 3.50
35
0913906029
ref: 35
SCREW(6X25)
€ 5.00
36
0916006094
ref: 36
WASHER(6.5X15X1.0)
€ 1.50
37
0916906040
ref: 37
WASHER
€ 2.00
38
0918006331
ref: 38
SPACER(6.2X8.4X10.9)
€ 2.50
39
0932008030
ref: 39
CUSHION
€ 3.00
40
0932009501
ref: 40
CUSHION
€ 2.00
41
1821318H00
ref: 41
18213-18H10
SENSOR,OXYGEN
€ 336.00
