STAND

GSXR1000 2009 (K9) USA (E03)

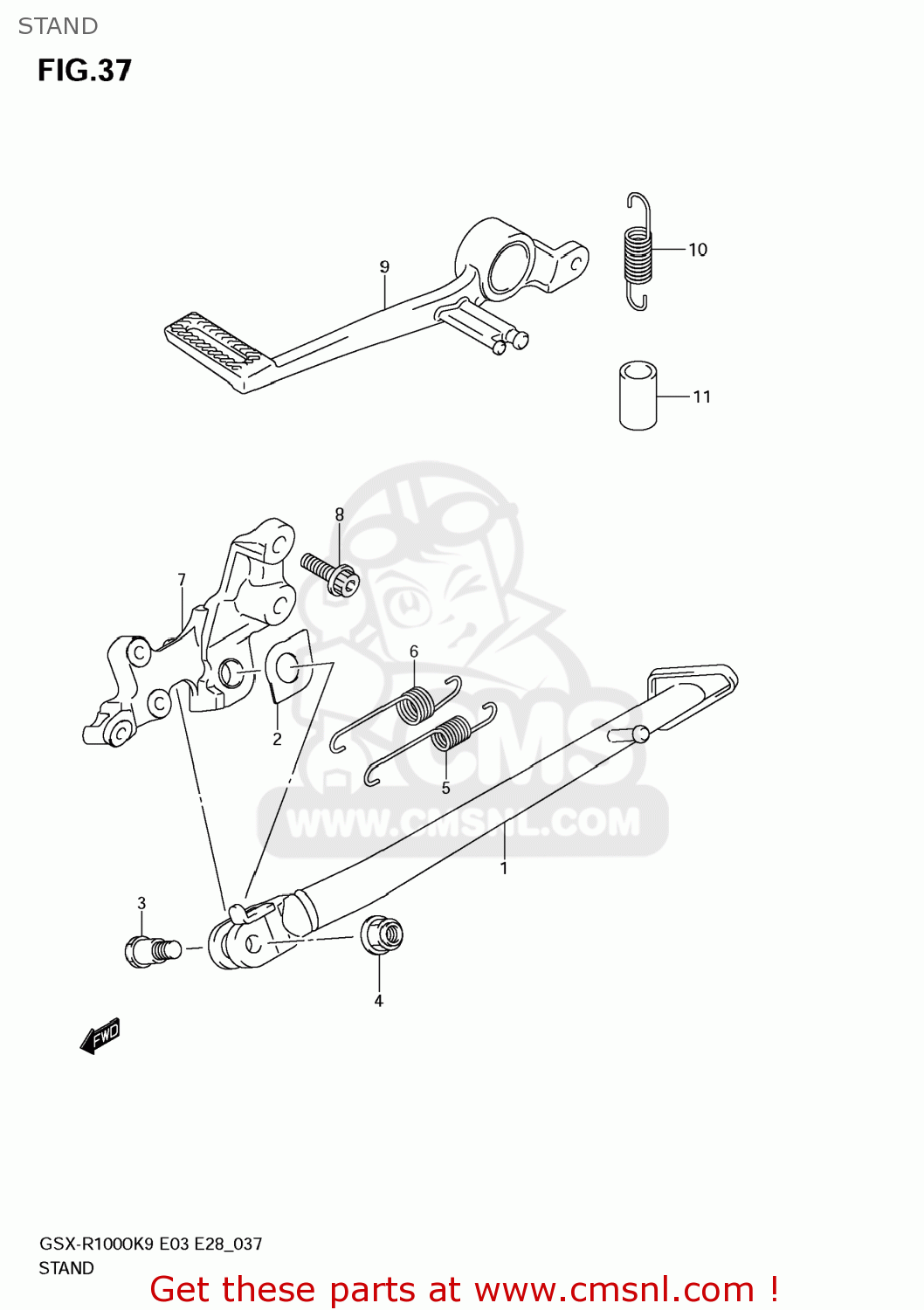

Stand diagram GSXR1000 2009 (K9) USA (E03)

STAND GSXR1000 2009 (K9) USA (E03)

STAND GSXR1000 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231047H00
ref: 1

STAND,PROP

€ 209.50

2

4233547H00
ref: 2

WASHER,PROP STAND

€ 5.50

3

4241147H00
ref: 3

BOLT,PROP STAND

€ 9.00

4

0915910103
ref: 4

NUT

€ 3.00

5

0944314070
ref: 5

SPRING

€ 5.00

6

0944319016
ref: 6

SPRING

€ 5.50

7

4233047H00
ref: 7

BRACKET,PROP STAND

€ 151.50

8

0910610064
ref: 8

BOLT(10X28)

€ 4.50

9

4311047H00
ref: 9

PEDAL,BRAKE

€ 100.50

10

0944311033
ref: 10

SPRING

€ 4.50

11

0935211153600
ref: 11

HOSE(11X15X600)

€ 13.50
