BATTERY

GSXR1000Z 2003 (K3) USA (E03)

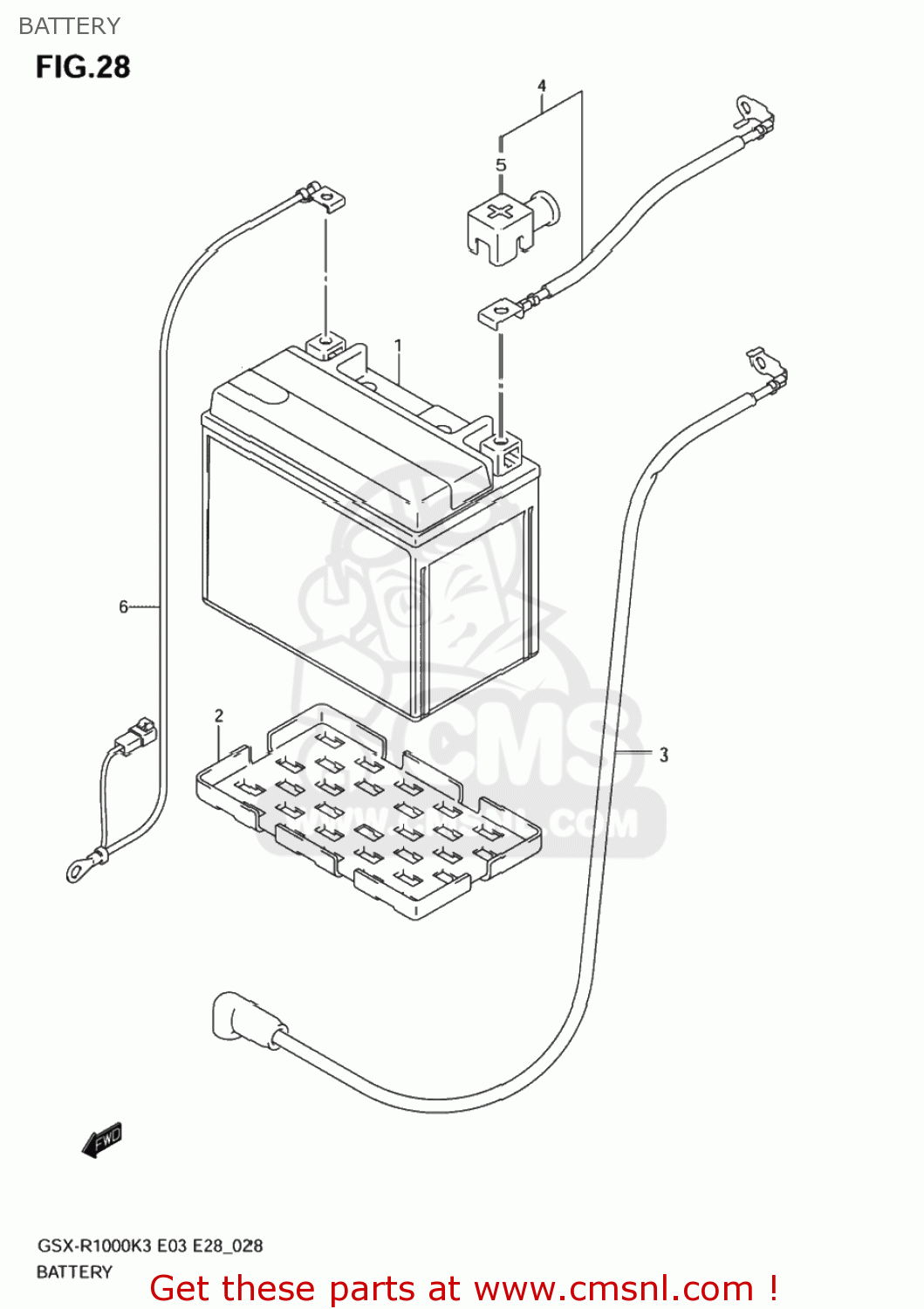

Battery diagram GSXR1000Z 2003 (K3) USA (E03)

BATTERY GSXR1000Z 2003 (K3) USA (E03)

BATTERY GSXR1000Z 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361048E20
ref: 1

BATTERY ASSEMBLY (12V) FTX

€ 97.50

1

3361048E20
ref: 1

BATTERY ASSEMBLY (12V) FTX

€ 97.50

2

3365216G00
ref: 2

PROTECTOR,BATTERY

€ 5.50

3

3381018G00
ref: 3

WIRE,STARTER MOTOR LEAD

€ 28.00

4

3382018G00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 26.50

5

3362435B00
ref: 5

CAP,BATTERY PLUS

€ 6.50

6

3386018G00
ref: 6

WIRE,BATTERY MINUS LEAD

€ 26.00
