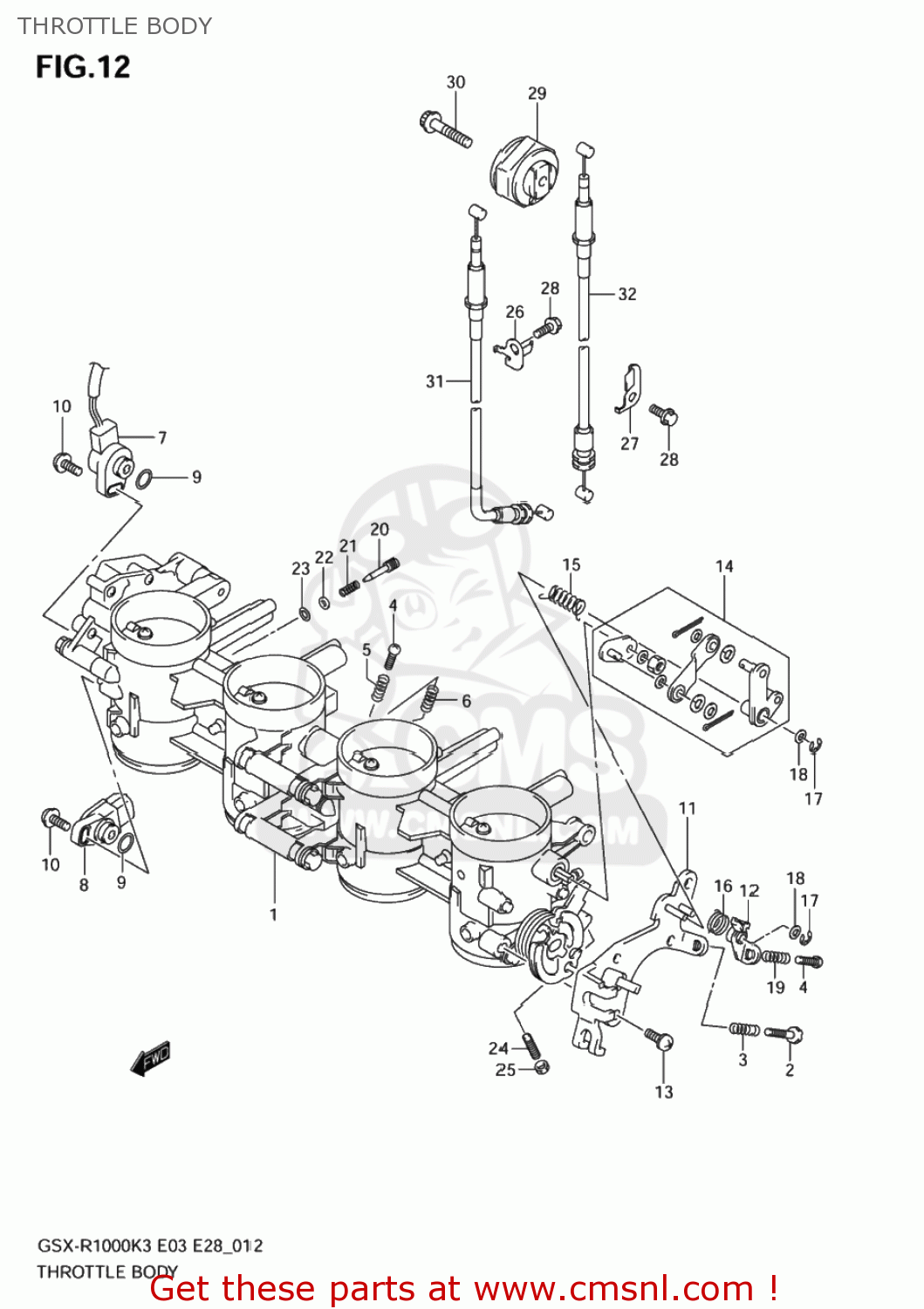

THROTTLE BODY

ref

part #

description

quantity

1-1

1340540F40
ref: 1-1

BODY ASSY,THROTTLE

€ 1,265.00

1-2

1340540F50
ref: 1-2

BODY ASSY,THROTTLE

€ 0.00

2

1326735F00
ref: 2

SCREW,STOP

€ 26.00

3

1326835F00
ref: 3

SPRING

€ 4.50

4

1342335F00
ref: 4

SCREW,STOP

€ 7.00

5

1354324F00
ref: 5

SPRING

€ 4.50

6

1326803F50
ref: 6

SPRING

€ 5.00

7

1358040F30
ref: 7

SENSOR ASSY,TH

€ 188.00

8

1358018G00
ref: 8

SENSOR ASSY,THROTTLE MAIN

€ 188.00

9

1357540F00
ref: 9

O RING

€ 3.50

10

1360540F00
ref: 10

SCREW

€ 3.00

11

1356518G00
ref: 11

PLATE,STAY

€ 76.50

12

1341440F00
ref: 12

LEVER,LINK

€ 25.50

13

1515324F00
ref: 13

SCREW

€ 3.00

14

1342040F20
ref: 14

LEVER SET,LINK

€ 60.00

15

1342640F00
ref: 15

SPRING

€ 4.00

16

1342635F10
ref: 16

SPRING

€ 4.00

17

1342435F10
ref: 17

E CLIP

€ 3.00

18

1342735F10
ref: 18

WASHER

€ 3.50

19

1327126E10
ref: 19

SPRING

€ 4.50

20

1326918G00
ref: 20

SCREW,AIR ADJUST

€ 7.50

21

1327143E00
ref: 21

SPRING

€ 4.00

22

1329126E00
ref: 22

WASHER

€ 3.00

23

1329526E00
ref: 23

O RING

€ 4.50

24

1326718G00
ref: 24

SCREW,STOP

€ 6.50

25

1366110G00
ref: 25

NUT

€ 3.00

26

1125818G00
ref: 26

BRACKET,EXHAUST VALVE CABLE UP

€ 3.00

27

1125918G00
ref: 27

BRACKET,EXH VALVE CABLE LOW

€ 2.50

28

0154706123
ref: 28
01547-0612B

BOLT

€ 2.00

29

1126918G00
ref: 29
11269-18G01

PULLEY CONTROL

€ 17.00

30

0712005163
ref: 30
07120-0516B

BOLT

€ 1.50

31

1127618G00
ref: 31

CABLE,EXHAUST VALVE NO.1

€ 38.50

32

1127718G00
ref: 32

CABLE,EXHAUST VALVE NO.2

€ 34.50
