GEAR SHIFTING
GSXR1000Z 2003 (K3) USA (E03)

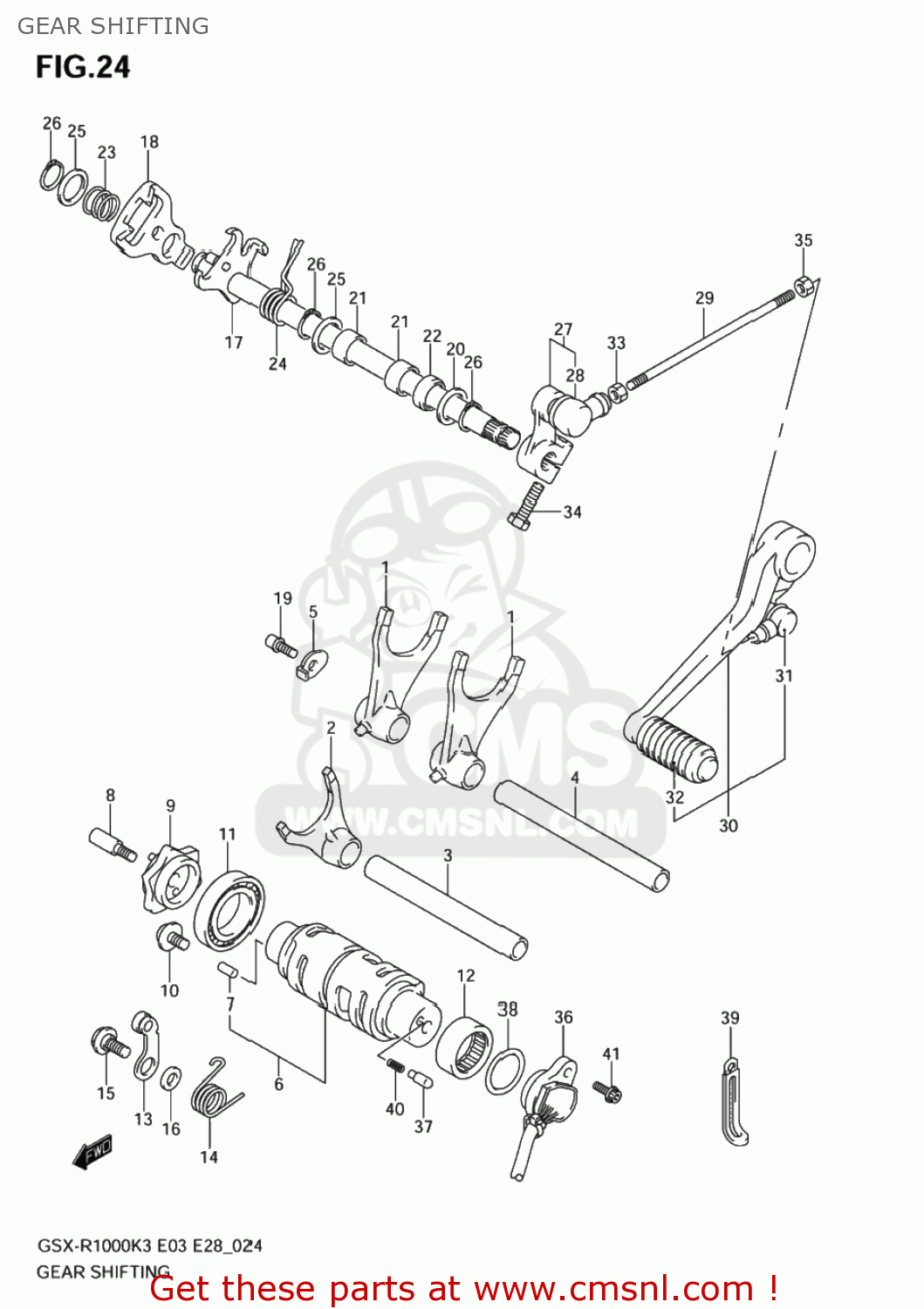

Gear shifting diagram GSXR1000Z 2003 (K3) USA (E03)
GEAR SHIFTING GSXR1000Z 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521135F00
ref: 1
FORK,GEAR SHIFT NO.1
€ 99.00
2
2523135F00
ref: 2
FORK,GEAR SHIFT NO.3
€ 108.50
3
2541126D01
ref: 3
SHAFT,GEAR SHIFT FORK
€ 16.00
4
2541124F00
ref: 4
SHAFT,SHIFT FORK NO.2(L:132)
€ 19.00
5
2545135F00
ref: 5
RETAINER,GEAR SHIFT FORK SHAFT
€ 3.00
6
2531040F00
ref: 6
CAM,GEAR SHIFT
€ 147.50
7
0422104089
ref: 7
PIN
€ 1.50
8
2531242F00
ref: 8
25312-42F01
BOLT,GEAR SHIF
€ 5.50
9
2538113E00
ref: 9
PLATE,GEAR SHIFT CAM
€ 30.00
10
0913606147
ref: 10
SCREW(6X12)
€ 2.00
11
0926225006
ref: 11
BEARING(25X47X8)
€ 24.00
12
0926325018
ref: 12
BEARING(25X32X12)
€ 17.50
13
2535035F00
ref: 13
STOPPER,SHIFT CAM
€ 18.00
14
2535503G00
ref: 14
SPRING,SHIFT CAM STOPPER
€ 3.00
15
0911106041
ref: 15
BOLT(6X14.3)
€ 3.00
16
0821106141
ref: 16
WASHER
€ 2.50
17
2551040F00
ref: 17
SHAFT,GEAR SHIFT
€ 74.50
18
2551206G00
ref: 18
PLATE,GEAR SHIFT CAM DRIVE
€ 36.00
19
2567135F00
ref: 19
STOPPER,GEAR SHIFT ARM
€ 2.50
20
0916014016
ref: 20
WASHER(14X29X0.8)
€ 1.50
21
0926314027
ref: 21
BEARING(14X20X12)
€ 11.00
22
0928314006
ref: 22
SEAL,OIL(14X22X6)
€ 6.50
23
0944017009
ref: 23
SPRING
€ 1.50
24
0944420001
ref: 24
SPRING
€ 5.00
25
0918114167
ref: 25
SHIM(14X22X1)
€ 3.50
26
0833131146
ref: 26
08331-3114A
CIRCLIP
€ 2.00
27
2552040F00
ref: 27
ARM,GEAR SHIFT LINK
€ 46.50
28
2552647000
ref: 28
COVER,DUST
€ 3.50
29
2552505A10
ref: 29
ROD,GEAR SHIFT LINK
€ 12.00
30
2560040F00
ref: 30
LEVER ASSY,GEAR SHIFT
€ 120.00
31
2552647000
ref: 31
COVER,DUST
€ 3.50
32
2565220C00
ref: 32
RUBBER,GEAR SHIFT PEDAL
€ 8.00
33
0914006025
ref: 33
NUT
€ 2.00
34
0150006253
ref: 34
01500-0625A
BOLT
€ 2.50
35
0831000067
ref: 35
NUT
€ 2.50
36
3773035F10
ref: 36
BASE ASSY,GEAR SHIFT TERMINAL
€ 126.00
37
0920905011
ref: 37
PIN(5X15.5)
€ 2.00
38
0928026007
ref: 38
O RING(D:2.4,ID:25.7)
€ 6.50
39
0940406429
ref: 39
CLAMP(L:45)
€ 2.50
40
0944004010
ref: 40
SPRING
€ 1.50
41
0910605023
ref: 41
BOLT(5X16)
€ 2.50
