STAND

GSXR1000Z 2003 (K3) USA (E03)

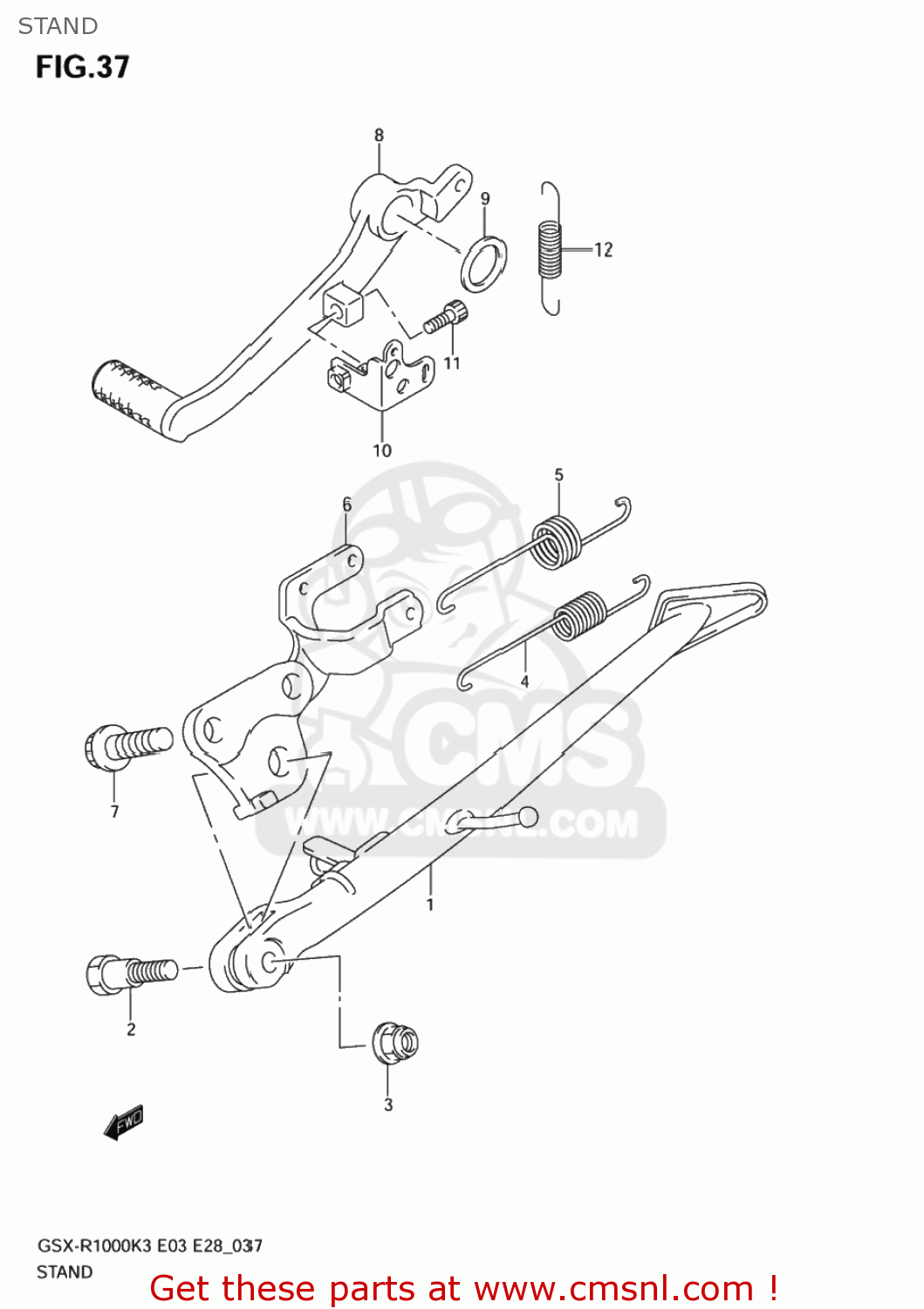

Stand diagram GSXR1000Z 2003 (K3) USA (E03)

STAND GSXR1000Z 2003 (K3) USA (E03)

STAND GSXR1000Z 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4231018G00
ref: 1-1

STAND,PROP

€ 98.50

1-2

4231040F00
ref: 1-2
42310-40F10

STAND COMP,PRO

€ 160.00

1-3

4231018G00
ref: 1-3

STAND,PROP

€ 98.50

2

0911110059
ref: 2

BOLT(10X21)

€ 7.00

3

0915910103
ref: 3

NUT

€ 3.00

4

0944314070
ref: 4

SPRING

€ 5.00

5

0944319016
ref: 5

SPRING

€ 5.50

6-1

4233035F01
ref: 6-1
42330-35F02

BRACKET COMP,PROP STAND

€ 80.50

6-2

4233035F02
ref: 6-2

BRACKET,PROP STAND

€ 80.50

7

0910610064
ref: 7

BOLT(10X28)

€ 4.50

8

4311135F10
ref: 8

PEDAL,BRAKE

€ 100.50

9

0916018022
ref: 9

WASHER(18X24X1)

€ 3.00

10

4356035F10
ref: 10

BRACKET,RETURN SPRING

€ 9.50

11

0713006163
ref: 11
07130-0616B

BOLT,OIL FILLE

€ 3.00

12

0944311035
ref: 12

SPRING

€ 22.00
