INSTALLATION PARTS (2)

GSXR1000Z 2003 (K3) USA (E03)

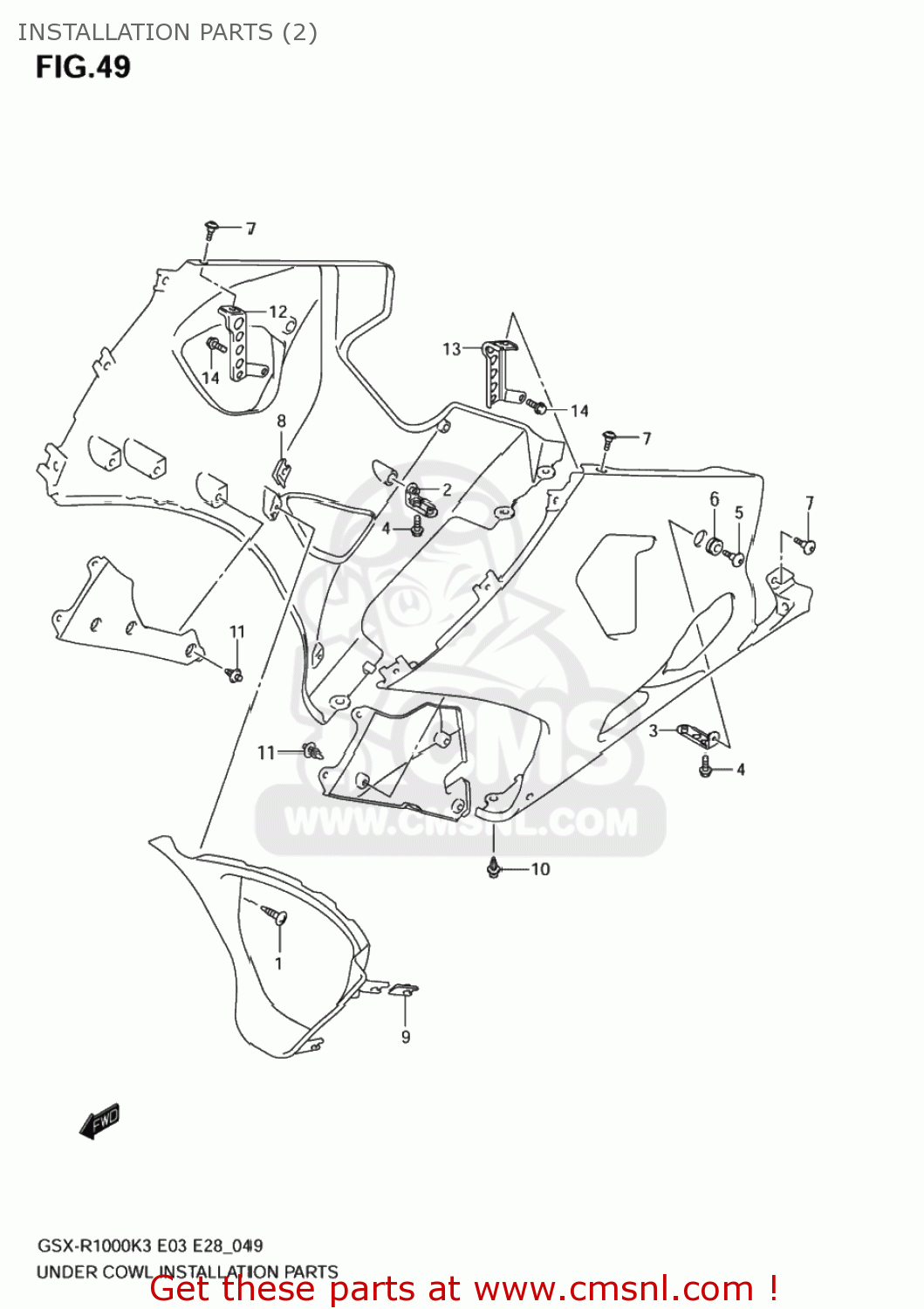

Installation parts (2) diagram GSXR1000Z 2003 (K3) USA (E03)

INSTALLATION PARTS (2) GSXR1000Z 2003 (K3) USA (E03)

INSTALLATION PARTS (2) GSXR1000Z 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

0354105163
ref: 1
03541-0516A

SCREW

€ 1.50

2

9453333E01
ref: 2

BRACKET,UNDER COWLING LWR,R

€ 6.50

3

9453433E01
ref: 3

BRACKET,UNDER COWLING LWR,L

€ 7.50

4

0155006123
ref: 4
01550-0612A

BOLT

€ 2.50

5

0913906087
ref: 5
09139-06126

SCREW(6X20)

€ 4.00

6

0932009016
ref: 6

CUSHION

€ 2.50

7

0913905064
ref: 7

SCREW(5X13)

€ 2.50

8

0914805019
ref: 8

NUT

€ 2.00

9

9448424F00
ref: 9

NUT,COWL

€ 4.00

10

9447935F00
ref: 10

CLIP

€ 3.50

11

09409063145PK
ref: 11

CLIP(BLACK)

€ 3.50

12

9452018G00
ref: 12

BRACKET,COWLING,R

€ 17.00

13

9453018G00
ref: 13

BRACKET,COWLING,L

€ 12.00

14

0155006123
ref: 14
01550-0612A

BOLT

€ 2.50
