SPEEDOMETER

GSXR1000Z 2003 (K3) USA (E03)

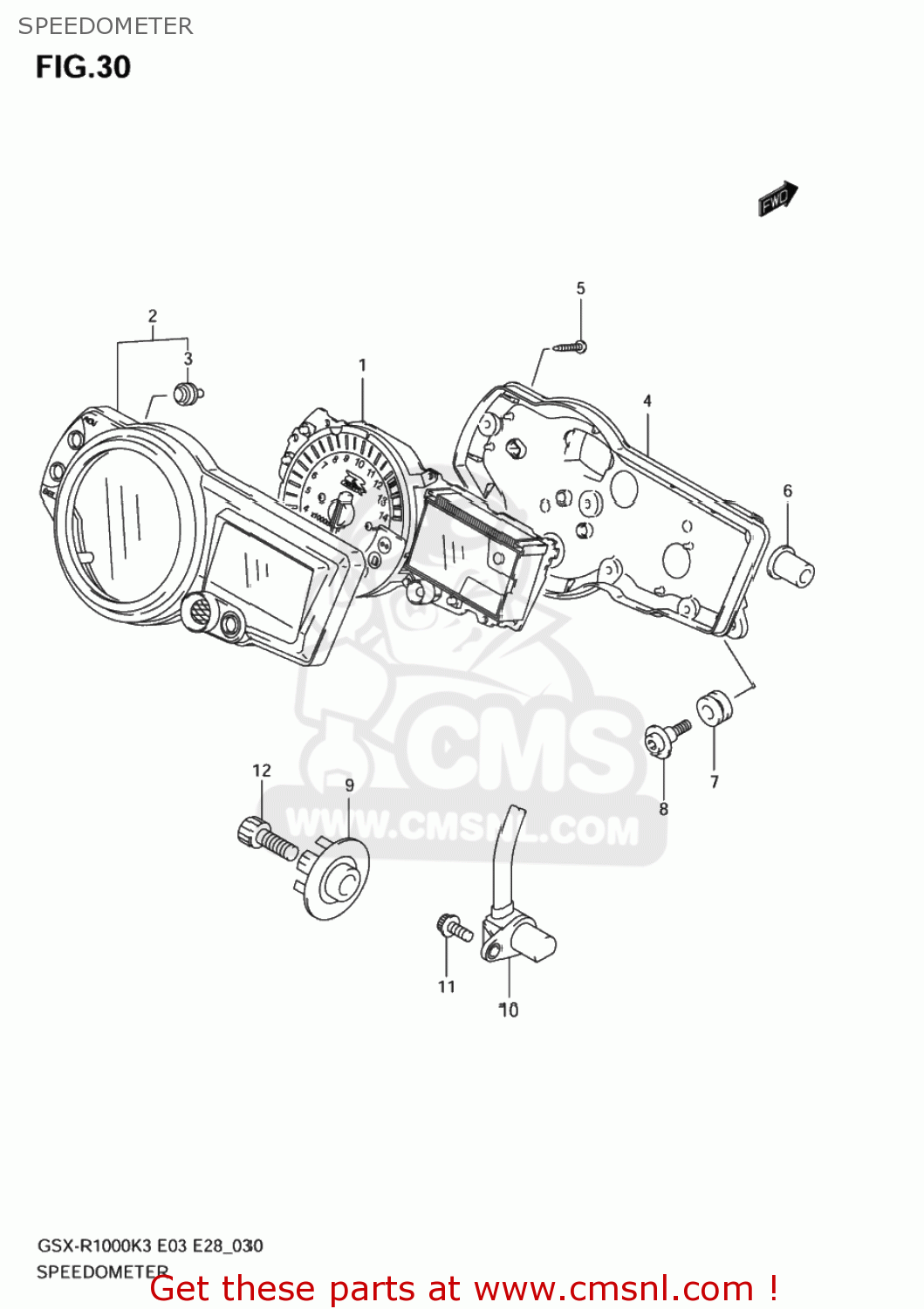

Speedometer diagram GSXR1000Z 2003 (K3) USA (E03)

SPEEDOMETER GSXR1000Z 2003 (K3) USA (E03)

SPEEDOMETER GSXR1000Z 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3412018G20
ref: 1-1

SPEED & TACHOMETER ASSY

€ 0.00

1-2

3412018G00
ref: 1-2

SPEED & TACHOMETER ASSY

€ 785.00

2

3415018G00
ref: 2

CASE,SPEEDOMETER UPR

€ 114.50

3

3412424F00
ref: 3

SWITCH,LEVER

€ 6.50

4

3411118G00
ref: 4

CASE,SPEEDOMETER LWR

€ 79.50

5

3438335F00
ref: 5

SCREW(3X16)

€ 3.00

6

0932007010
ref: 6

CUSHION

€ 3.50

7

3495533E00
ref: 7

CUSHION,METER

€ 3.00

8

3414918G00
ref: 8

SCREW,SPEEDOMETER

€ 2.00

9

3498135F00
ref: 9
34981-38G01

ROTOR,SPEED

€ 15.00

10

3499035F00
ref: 10

SENSOR,SPEED

€ 112.50

11

0712005123
ref: 11
07120-0512B

BOLT

€ 2.00

12

0713008253
ref: 12
07130-0825B

BOLT

€ 3.50
