TURN SIGNAL LAMP
GSXR1000Z 2003 (K3) USA (E03)

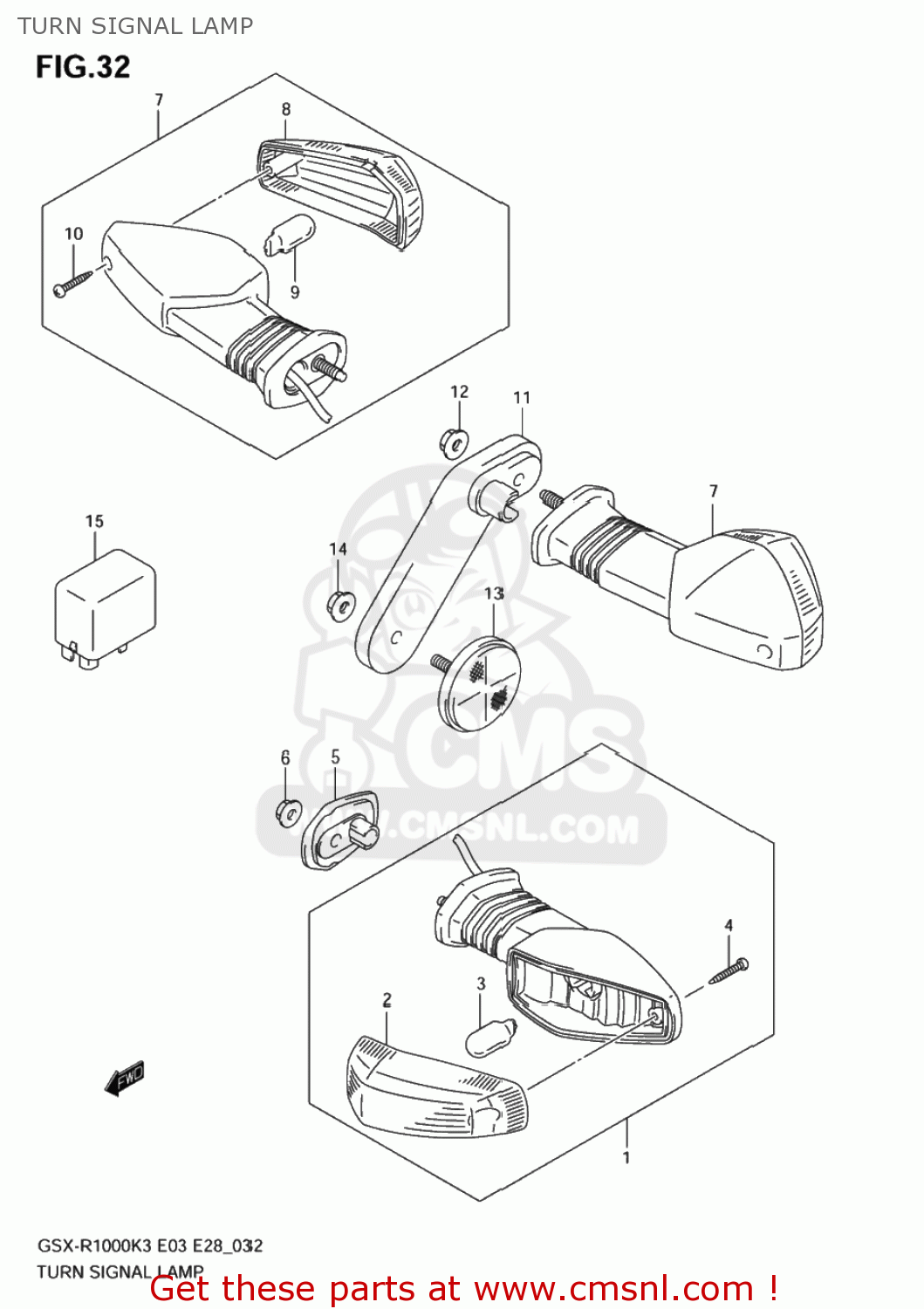

Turn signal lamp diagram GSXR1000Z 2003 (K3) USA (E03)
TURN SIGNAL LAMP GSXR1000Z 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560118G00
ref: 1-1
LAMP ASSY,FR TURN SIGNAL,R
€ 103.50
1-2
3560218G00
ref: 1-2
LAMP ASSY,FR TURN SIGNAL,L
€ 94.50
2-1
3561218G00
ref: 2-1
35612-18G01
LENS
€ 18.00
2-2
3563218G00
ref: 2-2
35632-18G01
LENS
€ 18.00
3
3522218G00
ref: 3
BULB(12V18W)
€ 5.50
4
3572540511
ref: 4
SCREW
€ 1.50
5
3562918G00
ref: 5
PLATE,FR TURNSIGNAL
€ 2.00
6
0831610053
ref: 6
08316-1005A
NUT
€ 2.50
7-1
3560318G30
ref: 7-1
LAMP ASSY,RR TURNSIGNAL,R
€ 100.50
7-2
3560418G30
ref: 7-2
LAMP ASSY,RR TURNSIGNAL,L
€ 93.50
8-1
3563218G00
ref: 8-1
35632-18G01
LENS
€ 18.00
8-2
3561218G00
ref: 8-2
35612-18G01
LENS
€ 18.00
9
3522218G00
ref: 9
BULB(12V18W)
€ 5.50
10
3572540511
ref: 10
SCREW
€ 1.50
11-1
3566918G00
ref: 11-1
PLATE,RR TURN SIGNAL,R
€ 6.00
11-2
3567918G00
ref: 11-2
PLATE,RR TURN SIGNAL,L
€ 6.00
12
0831610053
ref: 12
08316-1005A
NUT
€ 2.50
13
3597014A20
ref: 13
REFLECTOR ASSY,RR SIDE
€ 11.00
14
0831610053
ref: 14
08316-1005A
NUT
€ 2.50
15
3861007F00
ref: 15
RELAY ASSY,TURNSIGNAL
€ 121.50
