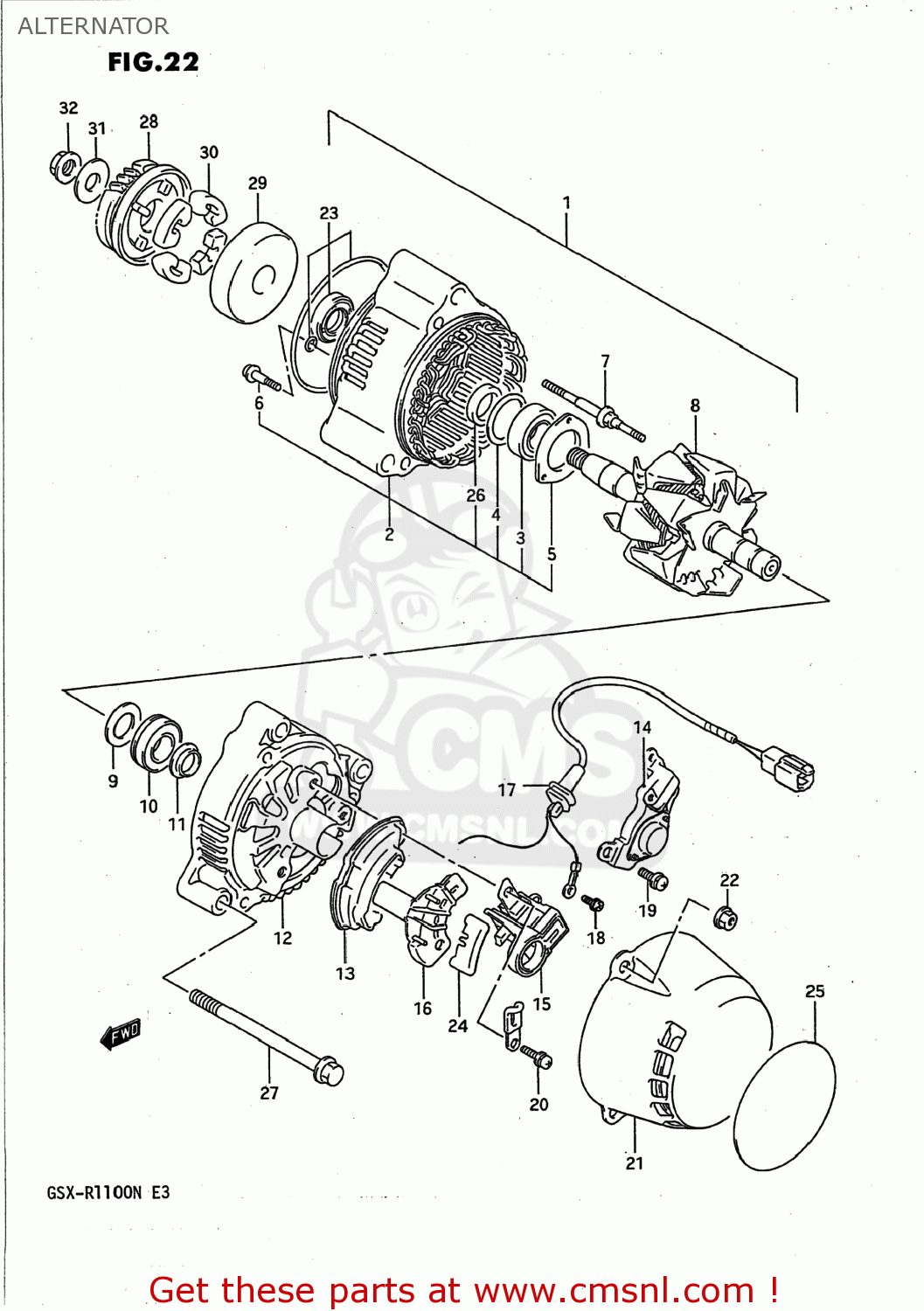

ALTERNATOR

ref

part #

description

quantity

1

3140048B03
ref: 1
31400-17C04

GENERATOR ASSEMBLY

€ 1,063.50

2

3158048B00
ref: 2

FRAME,DRIVE END

€ 248.50

3

3161206B00
ref: 3

BEARING

€ 36.50

4

3161348B00
ref: 4

COVER,BEARING

€ 5.50

5

3158548B00
ref: 5

RETAINER

€ 9.00

6

3158648B00
ref: 6

SCREW,BEARING RETAINER

€ 3.50

7

3158719C00
ref: 7
31587-85250

STUD BOLT

€ 9.00

8

3171048B03
ref: 8
31710-48B04

ROTOR ASSEMBLY

€ 277.50

9

3161382610
ref: 9

COVER,BEARING

€ 3.50

10

3161248B00
ref: 10

BEARING

€ 42.50

11

3161327A10
ref: 11

COVER(2)

€ 5.50

12

3161148B00
ref: 12

FRAME,END

€ 83.00

13

3162127A00
ref: 13

HOLDER,RECTIFIER

€ 225.50

14

3250027A00
ref: 14

REGULATOR

€ 321.00

15

3165648B00
ref: 15

HOLDER,BRUSH

€ 55.50

16

3168727A00
ref: 16
31687-17E00

COVER,RECTIFIER

€ 4.50

17

3148048B00
ref: 17

WIRE,LEAD

€ 22.00

18

3151685250
ref: 18
02112-0406B

SCREW

€ 2.00

19

3168827A00
ref: 19

SCREW

€ 2.50

20

3168806B00
ref: 20
31688-27A00

SCREW

€ 2.50

21

3161448B00
ref: 21

COVER

€ 67.50

22

0831616055
ref: 22

NUT ,5MM

€ 2.00

23

3178048B00
ref: 23
31780-27X50

SEAL SET,OIL

€ 47.50

24

3151427A00
ref: 24
31687-17E00

BUSH

€ 4.50

25

3161517C00
ref: 25
31615-27E00

PROTECTOR,ALTERNATOR

€ 10.00

26

3177606B00
ref: 26

SPACER

€ 22.00

27

0151708908
ref: 27
01550-08907

BOLT 8X90

€ 3.50

28

2273006B03
ref: 28
22730-06B04

GEAR,GENERATOR DRIVEN

€ 113.50

29

2273327A04
ref: 29
22733-27A05

HOUSING,GENERATOR GEAR

€ 95.00

30

2123106B00
ref: 30

DAMPER,GENERATOR DRIVEN

€ 5.50

31

0821110283
ref: 31

WASHER

€ 3.00

32

0831626106
ref: 32
08316-2010B

NUT

€ 3.50
