GEAR SHIFTING
GSXR1100 1992 (N) USA (E03)

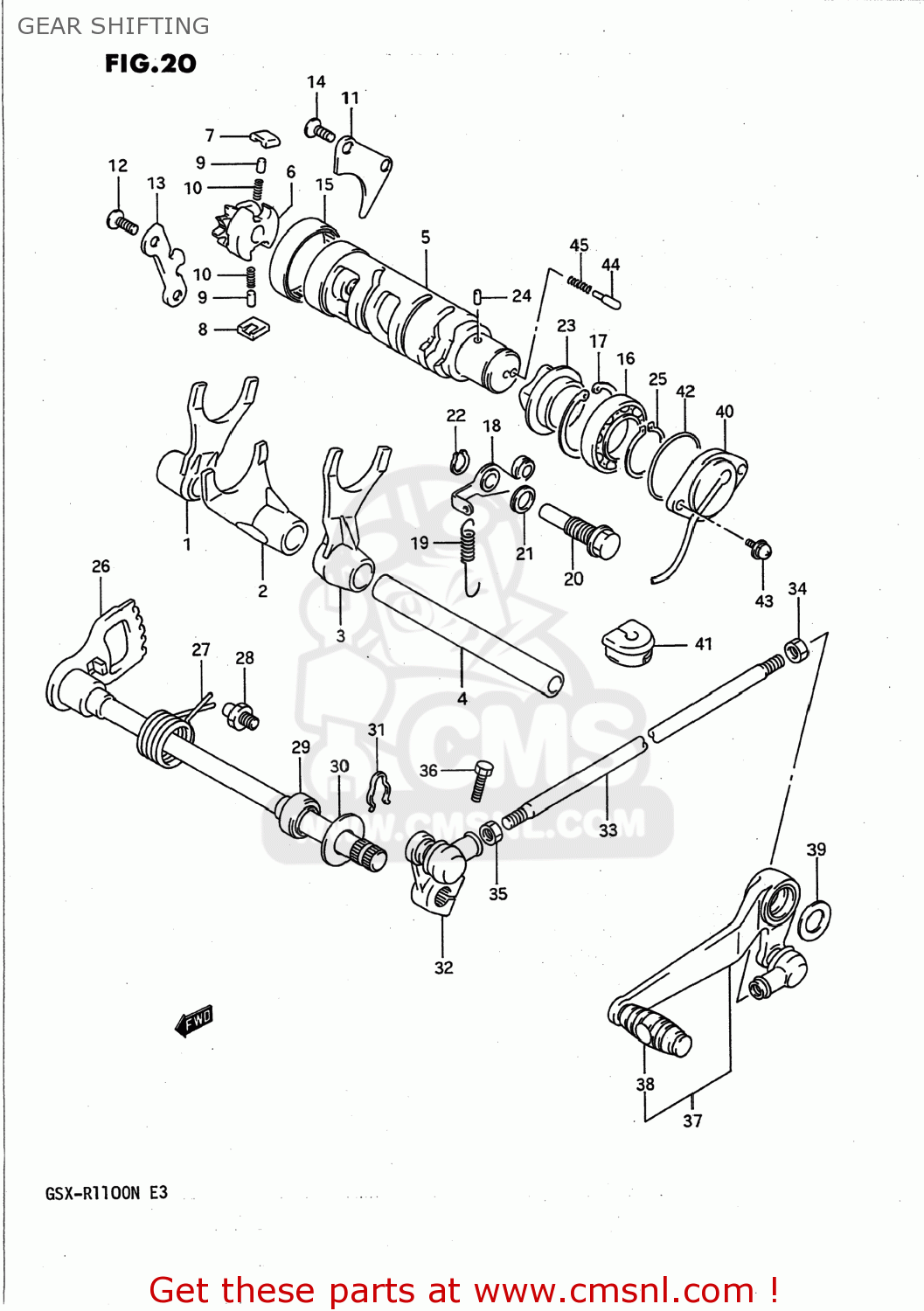

Gear shifting diagram GSXR1100 1992 (N) USA (E03)
GEAR SHIFTING GSXR1100 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521106B01
ref: 1
25211-06B02
FORK,GEAR SHIFT NO.1
€ 83.50
2
2522106B00
ref: 2
FORK,GEAR SHIFT NO.2
€ 83.50
3
2523106B00
ref: 3
FORK,GEAR SHIFT NO.3
€ 83.50
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
5
2531006B02
ref: 5
25310-06B03
CAM,GEAR SHIFT
€ 196.50
6
2532231301
ref: 6
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533131301
ref: 11
25331-31310
LIFTER,GEAR SHIFT PAWL
€ 7.00
12
0212206128
ref: 12
02122-06127
SCREW
€ 3.00
13
2534127A00
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14
0212206128
ref: 14
02122-06127
SCREW
€ 3.00
15
0926343001
ref: 15
BEARING(43X49X12)
€ 30.00
16
0811069050
ref: 16
08113-69050
BALL BEARING
€ 36.00
17
0833141426
ref: 17
08331-4142A
CIRCLIP
€ 1.50
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
€ 13.00
19
0944309031
ref: 19
SPRING
€ 4.00
20
2535327A00
ref: 20
SHAFT,GEAR SHIFT CAM STOPPER
€ 5.50
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
€ 2.00
22
0833131086
ref: 22
08331-3108A
CIRCLIP
€ 2.00
23
2538138400
ref: 23
PLATE,STOPPER
€ 22.00
24
0621104063
ref: 24
04221-04069
PIN 4X6
€ 2.00
25
0833131256
ref: 25
08331-3125A
CIRCLIP
€ 2.00
26
2551019C00
ref: 26
25510-19C01
SHAFT,GEAR SHIFT
€ 91.50
27
0944426017
ref: 27
SPRING
€ 5.00
28
2567101000
ref: 28
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
09285-12006
OIL SEAL
€ 7.00
30
0916012020
ref: 30
09160-12089
WASHER (12.5X27X1.6)
€ 2.00
31
0938412001
ref: 31
08331-3112A
SPRING,RETAINER
€ 2.00
32
2552019C02
ref: 32
ARM,GEAR SHIFT LINK
€ 53.50
33
2552517C02
ref: 33
25525-17C20
ROD,GEAR SHIFT LINK
€ 14.50
34
0914006011
ref: 34
NUT
€ 1.50
35
0831011067
ref: 35
08310-00067
NUT 6MM
€ 2.50
36
0110706257
ref: 36
01500-06257
BOLT
€ 2.00
37
2560017C03
ref: 37
25600-33E00
LEVER ASSEMBLY,GEAR SHIFTING
€ 106.00
38
2565216500
ref: 38
RUBBER,GEAR SHIFT PEDAL
€ 4.00
39
0916018022
ref: 39
WASHER(18X24X1)
€ 3.00
40
3772040C00
ref: 40
BASE ASSY,GEAR SHIFT TERMINAL
€ 46.50
41
3388527A01
ref: 41
GROMMET,LEADWIRE
€ 20.50
42
0928036001
ref: 42
O RING(D:2.4,ID:36.5)
€ 4.50
43
0913805003
ref: 43
09138-05011
SCREW
€ 1.50
44
0920905011
ref: 44
PIN(5X15.5)
€ 2.00
45
0944004010
ref: 45
SPRING
€ 1.50
