FRONT MASTER CYLINDER

GSXR1100 1992 (N) USA (E03)

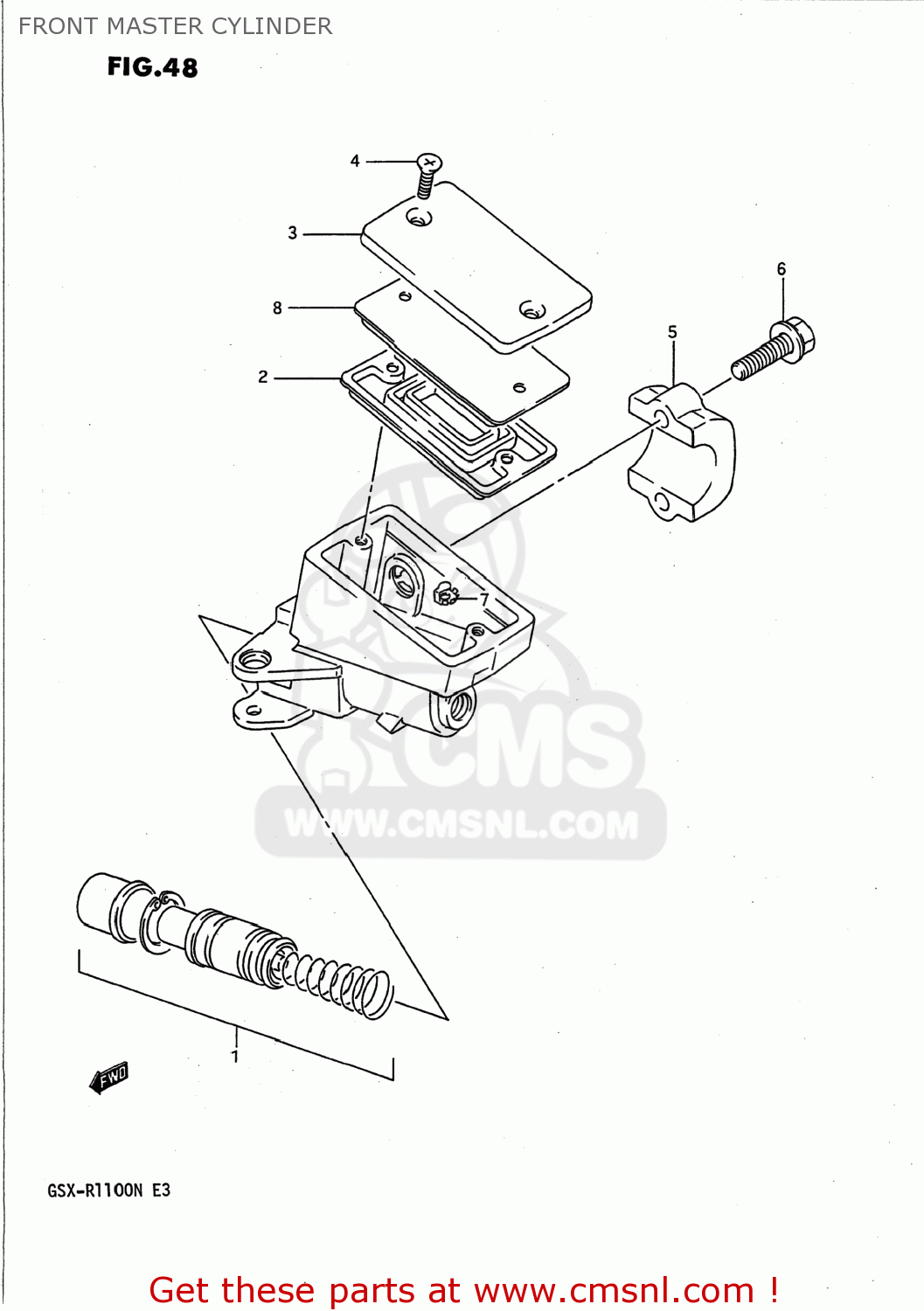

Front master cylinder diagram GSXR1100 1992 (N) USA (E03)

FRONT MASTER CYLINDER GSXR1100 1992 (N) USA (E03)

FRONT MASTER CYLINDER GSXR1100 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity



5960041C00
ref:
59600-41C01

CYLINDER ASSEMBLY,FRONT MASTER

€ 226.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

5966749460
ref: 2

5966749460

3

5966941C00
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967119B00
ref: 5

HOLDER

€ 18.50

6

5967517C00
ref: 6
59675-19C00

BOLT

€ 3.00

7

5966448B00
ref: 7

PROTECTOR

€ 8.00

8

5966841C00
ref: 8

PLATE,DIAPHRAGM

€ 8.00
