TRANSMISSION
GSXR1100 1992 (N) USA (E03)

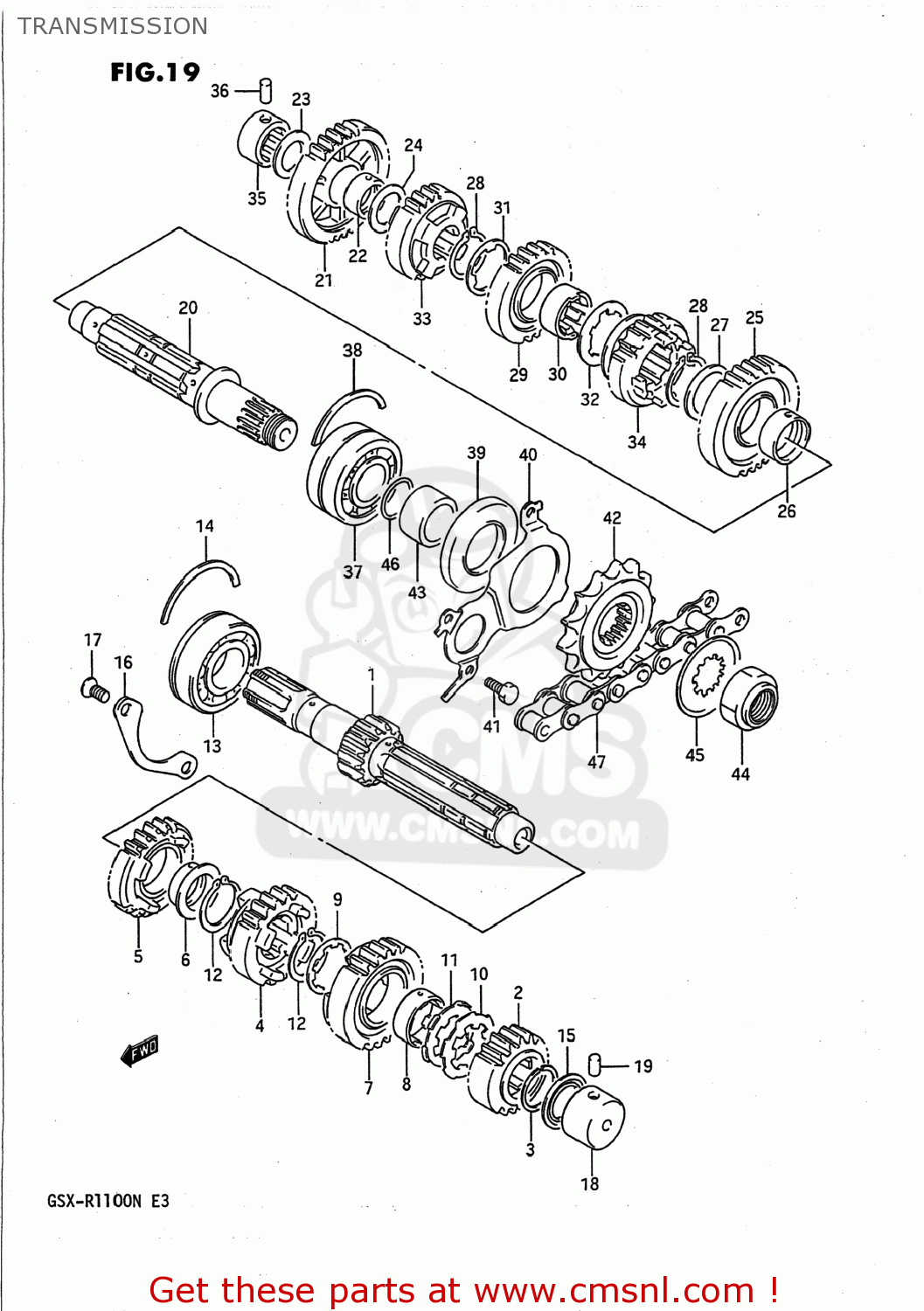

Transmission diagram GSXR1100 1992 (N) USA (E03)
TRANSMISSION GSXR1100 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412140C03
ref: 1
SHAFT,COUNTER
€ 220.50
2
2422140C00
ref: 2
GEAR,2ND DRIVE(NT:19)
€ 79.50
3
0938025013
ref: 3
CIRCLIP
€ 3.00
4
2423148B01
ref: 4
24231-48B10
GEAR,THIRD DRIVE (NT:20)
€ 174.50
5
2424148B00
ref: 5
24241-48B50
GEAR,FOURTH DRIVE (NT:22)
€ 162.00
6
0930125001
ref: 6
24322-19F00
BUSHING
€ 12.50
7
2425148B02
ref: 7
24251-48B30
GEAR,FIFTH DRIVE (NT:23)
€ 145.50
8
2425248B00
ref: 8
BUSH,5TH DRIVE GEAR
€ 18.00
9
0916725021
ref: 9
WASHER,LOCK
€ 3.00
10
0916725013
ref: 10
WASHER,LOCK
€ 2.50
11
0916925001
ref: 11
WASHER
€ 2.00
12
0938025003
ref: 12
RING,SNAP
€ 3.00
13
0926225051
ref: 13
09262-25105
BEARING(25X62X17)
€ 59.50
14
0939062011
ref: 14
C RING
€ 6.00
15
0928520006
ref: 15
SEAL,OIL(20X31.2X2.7)
€ 7.00
16
2474127A00
ref: 16
RETAINER,CNTR SHAFT BEARING
€ 7.00
17
0212206167
ref: 17
SCREW
€ 2.00
18
0926320049
ref: 18
BEARING(20X34X17.5)
€ 58.00
19
0422107129
ref: 19
PIN
€ 1.50
20
2413140C10
ref: 20
24131-40C21
SHAFT,DRIVE
€ 233.00
21
2431148B00
ref: 21
24311-48B20
GEAR,FIRST DRIVEN
€ 109.00
22
0930022005
ref: 22
24312-02F00
BUSHING
€ 19.50
23
0821120341
ref: 23
WASHER
€ 2.00
24
0821122341
ref: 24
WASHER
€ 3.00
25
2432148B02
ref: 25
24321-48B10
GEAR,SECOND DRIVEN
€ 132.50
26
0930028002
ref: 26
BUSH(28X32X11)
€ 15.50
27
0821128361
ref: 27
WASHER
€ 3.50
28
0833131286
ref: 28
08331-3128A
CIRCLIP
€ 2.50
29
2433148B03
ref: 29
24331-48B30
GEAR,THIRD DRIVEN (NT:25)
€ 130.50
30
2433248B00
ref: 30
24332-48B01
BUSHING,THIRD DRIVEN GEAR
€ 28.50
31
0916728001
ref: 31
WASHER,LOCK
€ 3.00
32
0916728008
ref: 32
WASHER,LOCK
€ 6.00
33
2434106B01
ref: 33
24341-06B30
GEAR,FOURTH DRIVEN (NT:23)
€ 136.00
34
2435148B03
ref: 34
24351-48B06
GEAR,FIFTH DRIVEN
€ 132.00
35
0926320040
ref: 35
BEARING(20X34X20)
€ 42.50
36
0422107209
ref: 36
PIN
€ 1.50
37
0926725011
ref: 37
BEARING(25X62X21.6)
€ 136.00
38
0939062011
ref: 38
C RING
€ 6.00
39
0928334005
ref: 39
SEAL,OIL(34X62X6)
€ 14.50
40
2475140C01
ref: 40
RETAINER,DRIVE SHAFT OIL SEAL
€ 7.00
41
0110706107
ref: 41
01500-06107
BOLT
€ 2.00
42
2751048B00
ref: 42
SPROCKET,ENGINE(15T)
€ 53.50
43
0918025081
ref: 43
09180-25100
SPACER (25X34X18.1)
€ 23.50
44
0915920004
ref: 44
NUT
€ 12.00
45
0916725019
ref: 45
WASHER,LOCK
€ 2.50
46
0928025001
ref: 46
O RING(D:1,ID:24.5)
€ 2.50
47
2760040C20118
ref: 47
CHAIN,DRIVE(118LE)
€ 313.50
