CAM SHAFT / VALVE
GSXR1100 1992 (N) USA (E03)

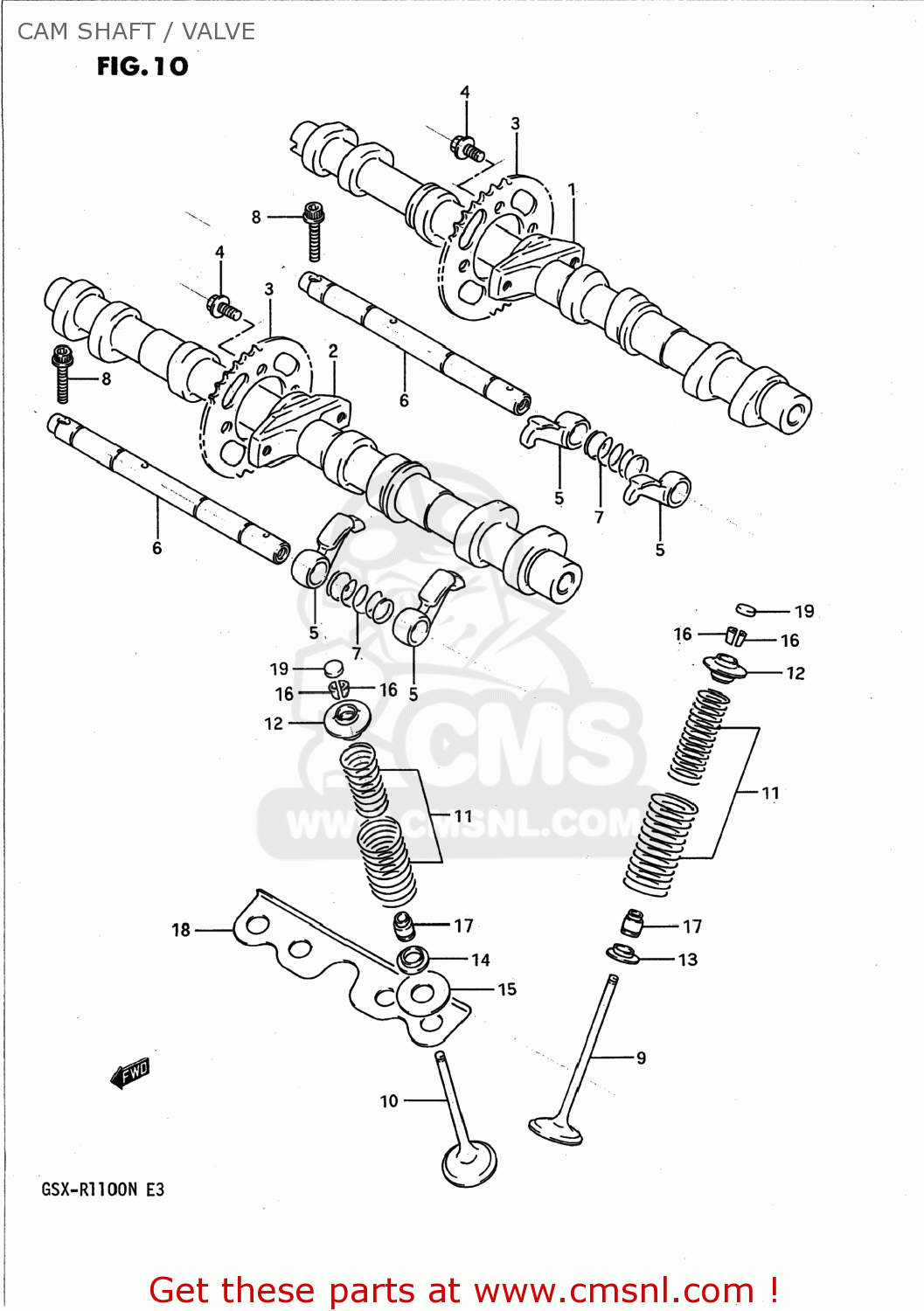

Cam shaft / valve diagram GSXR1100 1992 (N) USA (E03)
CAM SHAFT / VALVE GSXR1100 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271141C00
ref: 1
CAMSHAFT,INTAKE
€ 337.00
2
1272141C00
ref: 2
CAMSHAFT,EXHAUST
€ 382.00
3
1274106B00
ref: 3
SPROCKET,CAMSHAFT
€ 36.50
4
0910307001
ref: 4
BOLT(7X11)
€ 2.00
5
1284133C02
ref: 5
ARM,VALVE ROCKER
€ 48.50
6
1286141C00
ref: 6
12861-19E00
SHAFT,VALVE ROCKER
€ 36.50
7
0944014019
ref: 7
09440-14044
SPRING
€ 3.00
8
0712006255
ref: 8
07120-0625A
BOLT
€ 2.50
9
1291141C00
ref: 9
VALVE,INTAKE
€ 37.50
10
1291241C00
ref: 10
VALVE,EXHAUST
€ 46.50
11
1292041C00
ref: 11
SPRING SET,VALVE
€ 12.50
12
1293141C00
ref: 12
12931-41C01
RETAINER,VALVE SPRING
€ 8.50
13
1293381400
ref: 13
SEAT,VALVE SPRING
€ 4.00
14
1293427A00
ref: 14
12934-27A01
SEAT,VALVE SPRING
€ 7.00
15
1293527A00
ref: 15
SEAT,VALVE SPRING EXH OUTER
€ 3.50
16
1293227A00
ref: 16
COTTER VALVE
€ 2.50
17
0928905011
ref: 17
SEAL,OIL(5X10X9.7)
€ 6.00
18
1113727A01
ref: 18
11137-27A02
PLATE
€ 7.50
19-1
1289241C00230
ref: 19-1
SHIM,TAPPET(T:2.3)
€ 7.50
19-10
1289241C00275
ref: 19-10
SHIM,TAPPET(T:2.75)
€ 7.50
19-11
1289241C00280
ref: 19-11
SHIM,TAPPET(T:2.8)
€ 7.50
19-12
1289241C00285
ref: 19-12
SHIM,TAPPET(T:2.85)
€ 7.50
19-13
1289241C00290
ref: 19-13
SHIM,TAPPET(T:2.9)
€ 7.50
19-14
1289241C00295
ref: 19-14
SHIM,TAPPET(T:2.95)
€ 7.00
19-15
1289241C00300
ref: 19-15
SHIM,TAPPET(T:3.0)
€ 7.00
19-16
1289241C00305
ref: 19-16
SHIM,TAPPET(T:3.05)
€ 7.50
19-17
1289241C00310
ref: 19-17
SHIM,TAPPET(T:3.1)
€ 7.50
19-18
1289241C00315
ref: 19-18
SHIM,TAPPET(T:3.15)
€ 7.50
19-19
1289241C00320
ref: 19-19
SHIM,TAPPET(T:3.2)
€ 7.50
19-2
1289241C00235
ref: 19-2
SHIM,TAPPET(T:2.35)
€ 7.00
19-20
1289241C00325
ref: 19-20
SHIM,TAPPET(T:3.25)
€ 7.00
19-21
1289241C00330
ref: 19-21
SHIM,TAPPET(T:3.3)
€ 7.00
19-22
1289241C00335
ref: 19-22
SHIM,TAPPET(T:3.35)
€ 7.00
19-23
1289241C00340
ref: 19-23
SHIM,TAPPET(T:3.4)
€ 7.00
19-24
1289241C00345
ref: 19-24
SHIM,TAPPET(T:3.45)
€ 7.00
19-25
1289241C00350
ref: 19-25
SHIM,TAPPET(T:3.5)
€ 7.00
19-3
1289241C00240
ref: 19-3
SHIM,TAPPET(T:2.4)
€ 7.00
19-4
1289241C00245
ref: 19-4
SHIM,TAPPET(T:2.45)
€ 7.00
19-5
1289241C00250
ref: 19-5
SHIM,TAPPET(T:2.5)
€ 7.00
19-6
1289241C00255
ref: 19-6
SHIM,TAPPET(T:2.55)
€ 7.50
19-7
1289241C00260
ref: 19-7
SHIM,TAPPET(T:2.6)
€ 8.00
19-8
1289241C00265
ref: 19-8
SHIM,TAPPET(T:2.65)
€ 7.00
19-9
1289241C00270
ref: 19-9
SHIM,TAPPET(T:2.7)
€ 8.00
20
1280041810
ref: 20
SHIM SET,TAPPET
€ 793.00
20
1280041810
ref: 20
SHIM SET,TAPPET
€ 793.00
21
9900069471
ref: 21
CASE,TAPPET SHIM
€ 103.50
