OIL PAN
GSXR1100 1992 (N) USA (E03)

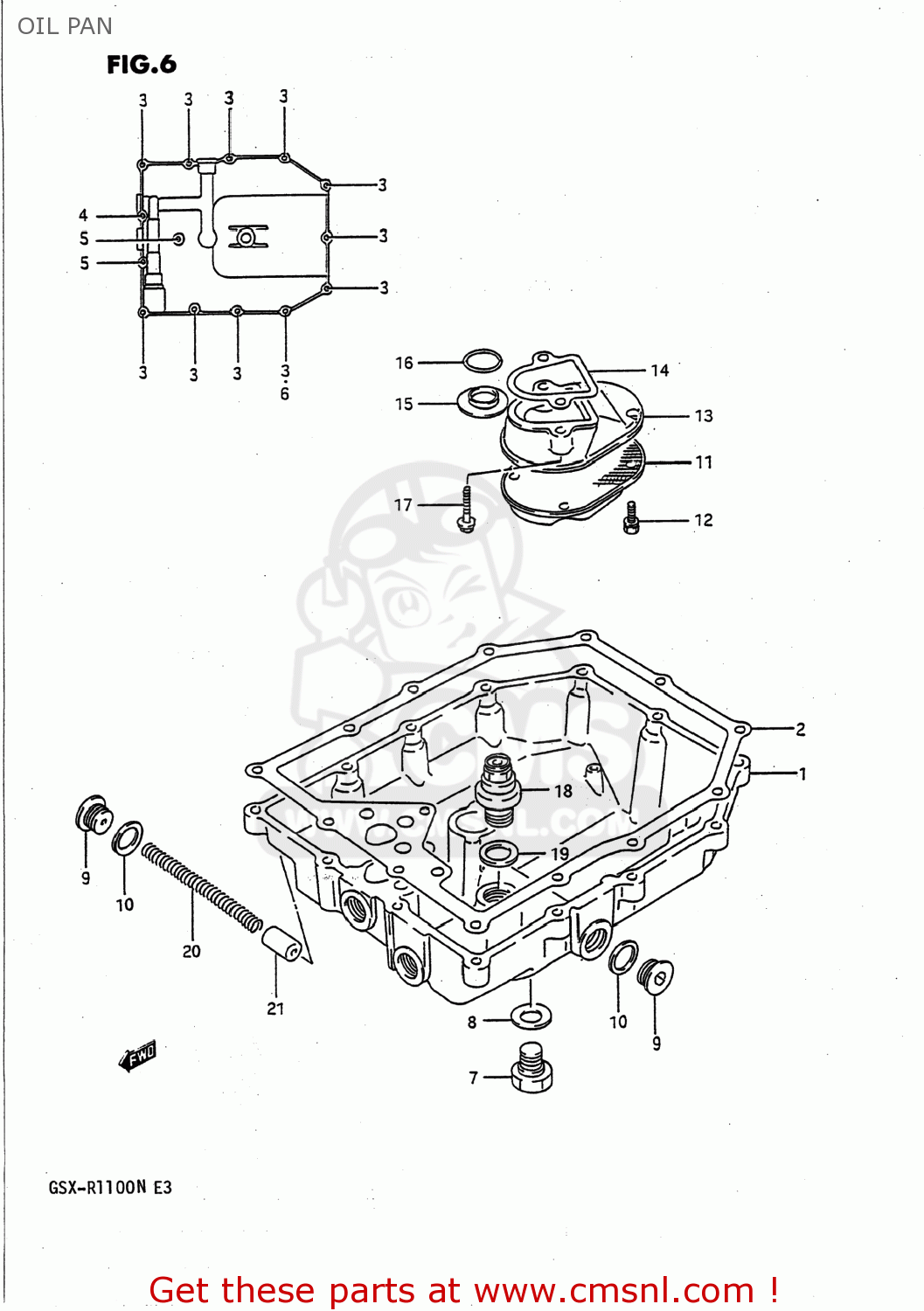

Oil pan diagram GSXR1100 1992 (N) USA (E03)
OIL PAN GSXR1100 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151117C02
ref: 1
PAN,OIL
€ 148.00
2
1148927A10
ref: 2
11489-27A21
GASKET,OIL PAN (NAS)
€ 23.00
3
0711006257
ref: 3
07130-06257
BOLT
€ 2.50
4
0910606067
ref: 4
07130-0655B
BOLT
€ 2.50
5
0711006458
ref: 5
07130-0645B
BOLT
€ 2.50
6
0916806024
ref: 6
GASKET(5.8X11X1.2) (NAS)
€ 2.00
7
0924714001
ref: 7
09247-14002
PLUG
€ 5.00
8
0916814004
ref: 8
GASKET(14X19.2X2) (NAS)
€ 2.50
9
0924816010
ref: 9
09248-16012
PLUG
€ 4.50
10
0916816002
ref: 10
GASKET(16X22X2) (NAS)
€ 2.00
11
1652017C00
ref: 11
STRAINER,ENGINE OIL
€ 13.00
12
0113706128
ref: 12
01570-06127
BOLT
€ 2.50
13
1652517C00
ref: 13
PROTECTOR,OIL STRAINER
€ 21.00
14
1652827A10
ref: 14
16528-27A21
O-RING
€ 9.00
15
1652927A01
ref: 15
GASKET,OIL OUTLET (NAS)
€ 2.00
16
0928018009
ref: 16
O RING(D:3.2,ID:17.8)
€ 8.00
17
0151706257
ref: 17
01550-06257
BOLT 6X25
€ 2.50
18
1644017C00
ref: 18
16440-17C10
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
19
0916816002
ref: 19
GASKET(16X22X2) (NAS)
€ 2.00
20
0944009027
ref: 20
SPRING
€ 4.50
21
1644234301
ref: 21
PLUNGER,OIL CONTROLL
€ 16.00
