Buy Suzuki GSXR Parts Online


FRAME COVER (MODEL T)

GSXR1100W 1994 (R) USA (E03)

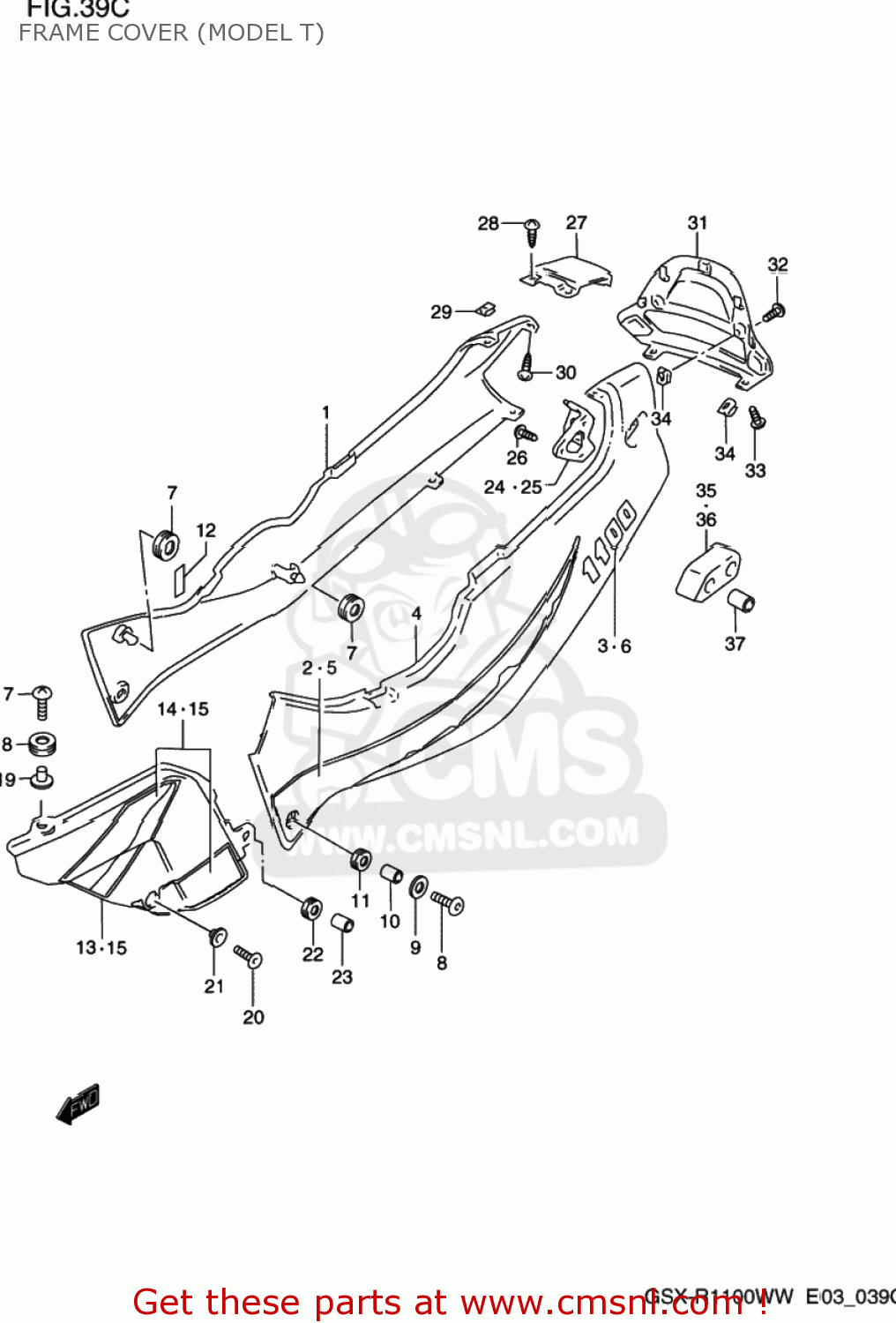

Frame cover (model t) diagram GSXR1100W 1994 (R) USA (E03)

FRAME COVER (MODEL T) GSXR1100W 1994 (R) USA (E03)
FRAME COVER (MODEL T) GSXR1100W 1994 (R) USA (E03)
FRAME COVER (MODEL T) GSXR1100W 1994 (R) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4710046E600JW
ref: 1-1
COVER ASSY,FRAME,R(WHITE)
€ 373.00
1-2
4710046E6017U
ref: 1-2
COVER ASSY,FRAME,R(GRAY)
4710046E6017U
€ 373.00
2-1
6813546E40E9P
ref: 2-1
TAPE,FRAME COVER STRIPE
€ 85.50
2-2
6813546E40C3B
ref: 2-2
TAPE,FRAME COVER STRIPE
6813546E40C3B
€ 72.50
3-1
6813146E30Z75
ref: 3-1
EMBLEM,FRAME COVER,R
€ 22.00
3-2
6813146E30Z76
ref: 3-2
EMBLEM,FRAME COVER,R
€ 22.00
4-1
4720046E600JW
ref: 4-1
COVER ASSY,FRAME,L(WHITE)
4720046E600JW
€ 373.00
4-2
4720046E6017U
ref: 4-2
COVER ASSEMBLY,FRAME,LEFT
4720046E6017U
€ 369.00
5-1
6814546E40E9P
ref: 5-1
TAPE,FRAME COVER STRIPE
€ 85.50
5-2
6814546E40C3B
ref: 5-2
TAPE, FRONT LH
€ 64.50
6-1
6814146E30Z75
ref: 6-1
EMBLEM,FRAME COVER,LEFT (
€ 26.00
6-2
6814146E30Z76
ref: 6-2
EMBLEM,FRAME COVER,L
€ 22.00
7
0932008018
ref: 7
CUSHION
0932008018
€ 4.00
8
0913906042
ref: 8
SCREW(6X30)
0913906042
€ 7.50
9
0916006006
ref: 9
09160-06084
WASHER
0916006006
€ 2.00
10
0918006011
ref: 10
09180-06263
SPACER (6.1X9X9)
0918006011
€ 2.00
11
0932009016
ref: 11
CUSHION
0932009016
€ 2.50
12
4488538A00
ref: 12
CUSHION
4488538A00
€ 3.00
13-1
4750046E600JW
ref: 13-1
COVER ASSY,FRAME BODY,R
€ 161.00
13-2
4750046E6017U
ref: 13-2
COVER ASSY,FRAME BODY,R
€ 161.00
14-1
6866046E20E9P
ref: 14-1
TAPE SET,FRAME COVER BODY,R
6866046E20E9P
€ 21.00
14-2
6866046E20C3B
ref: 14-2
TAPE SET,FRAME COVER B
€ 21.00
15-1
4760046E600JW
ref: 15-1
COVER ASSY,FRAME BODY,L
€ 161.00
15-2
4760046E6017U
ref: 15-2
COVER ASSY,FRAME BODY,L
€ 161.00
16-1
6867046E20E9P
ref: 16-1
TAPE SET,FRAME COVER BODY,L
€ 21.00
16-2
6867046E20C3B
ref: 16-2
TAPE SET,FRAME COVER B
6867046E20C3B
€ 23.50
17
0913606113
ref: 17
SCREW(6X25)
0913606113
€ 2.00
18
0932009016
ref: 18
CUSHION
0932009016
€ 2.50
19
0916906062
ref: 19
WASHER
0916906062
€ 3.00
20
0913905025
ref: 20
SCREW(5X14)
0913905025
€ 2.00
21
0916906040
ref: 21
WASHER
0916906040
€ 2.00
22
0932009016
ref: 22
CUSHION
0932009016
€ 2.50
23
0918006011
ref: 23
09180-06263
SPACER (6.1X9X9)
0918006011
€ 2.00
24
4553146E00
ref: 24
BRACKET,RR COMBINATION LAMP,L
€ 13.50
25
4553246E00
ref: 25
BRACKET,RR COMBINATION LAMP,L
€ 13.50
26
0354104103
ref: 26
03541-0410A
SCREW
0354104103
€ 1.50
27-1
4730046E000JW
ref: 27-1
COVER ASSY,FRAME CTR
€ 40.00
27-2
4730046E0017U
ref: 27-2
COVER ASSY,FRAME CTR
€ 33.00
28
0214205123
ref: 28
02142-0512A
SCREW 5X12
0214205123
€ 1.50
29
0914805021
ref: 29
NUT
0914805021
€ 1.50
30
0354104103
ref: 30
03541-0410A
SCREW
0354104103
€ 1.50
31
4741146E00
ref: 31
COVER,FRAME RR
4741146E00
€ 24.50
32
0913905021
ref: 32
SCREW(5X12)
0913905021
€ 2.00
33
0214205123
ref: 33
02142-0512A
SCREW 5X12
0214205123
€ 1.50
34
0914805021
ref: 34
NUT
0914805021
€ 1.50
35
4623846E00
ref: 35
CUSHION,PILLION RIDER HANDLE,R
4623846E00
€ 12.50
36
4623946E00
ref: 36
CUSHION,PILLION RIDER HANDLE,L
4623946E00
€ 9.50
37
0918008180
ref: 37
09180-08180-XC0
SPACER (8.5X16X37)
0918008180
€ 5.50
