REAR SWINGING ARM (MODEL P/R)
GSXR1100W 1994 (R) USA (E03)

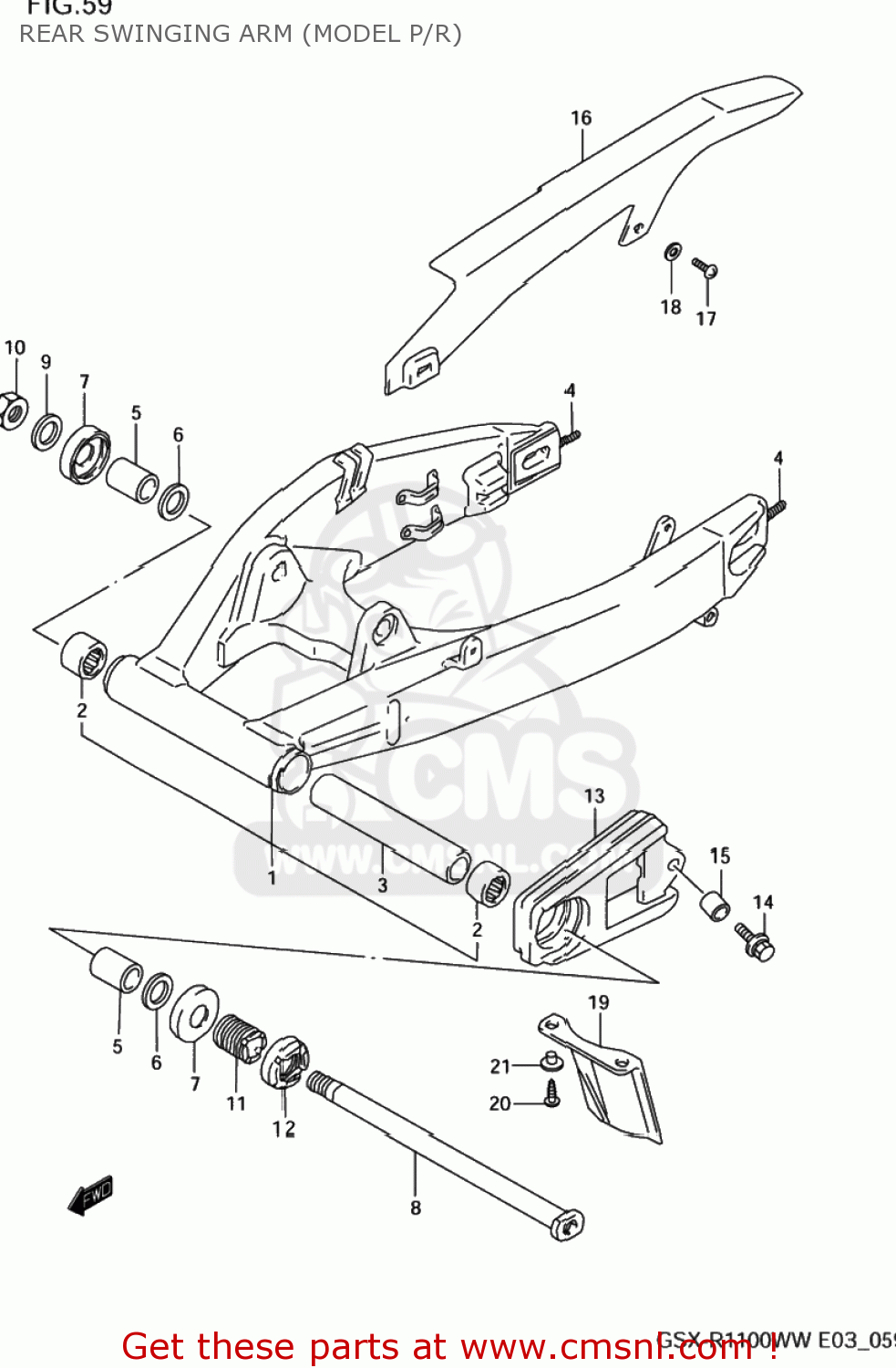

Rear swinging arm (model p/r) diagram GSXR1100W 1994 (R) USA (E03)
REAR SWINGING ARM (MODEL P/R) GSXR1100W 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100046E00
ref: 1
SWINGINGARM ASSY,RR
€ 1,958.50
2
0926325024
ref: 2
BEARING(25X33X30)
€ 31.50
3
6128217C00
ref: 3
SPACER,RR SWGARM PIVOT CTR
€ 11.50
4
6143140C00
ref: 4
09108-08261
STUD,CHAIN ADJUSTER BOLT
€ 7.50
5
6125117C00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
€ 36.00
6
0821120381
ref: 6
WASHER
€ 3.00
7
6126217C00
ref: 7
DUST SEAL,RR SWGARM PIVOT
€ 8.00
8
6121117E01
ref: 8
SHAFT,REAR SWING ARM
€ 55.50
9-1
0832211188
ref: 9-1
08322-0118B
WASHER
€ 2.50
9-2
0832201183
ref: 9-2
08322-0118B
WASHER
€ 2.50
10
0915918007
ref: 10
NUT
€ 14.00
11
6121340C30
ref: 11
BOLT,RR SWGARM PIVOT
€ 63.50
12
6121440C30
ref: 12
61214-40C31
NUT,REAR SWING ARM PIVOT
€ 16.50
13
6127346E00
ref: 13
BUFFER,CHAIN TOUCH DEFENSE
€ 84.00
14
0911606111
ref: 14
09116-06152
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
15
0918006002
ref: 15
09180-06283
SPACER
€ 2.00
16
6131017E00
ref: 16
CASE,CHAIN
€ 94.00
17-1
0214206104
ref: 17-1
02142-0610A
SCREW
€ 2.00
17-2
0214206103
ref: 17-2
02142-0610A
SCREW 6X10
€ 2.00
18
0916906026
ref: 18
WASHER
€ 2.00
19
6341142A00
ref: 19
63411C42A00J000
GUARD,RR UNIT MUD
€ 3.50
20-1
0214206167
ref: 20-1
SCREW
€ 2.00
20-2
0214206163
ref: 20-2
02142-0616A
SCREW
€ 2.50
21-1
0916906025
ref: 21-1
09169-06010
WASHER,LOCK
€ 3.00
21-2
0916906010
ref: 21-2
WASHER
€ 3.00
