REAR MASTER CYLINDER (MODEL P/R)
GSXR1100W 1994 (R) USA (E03)

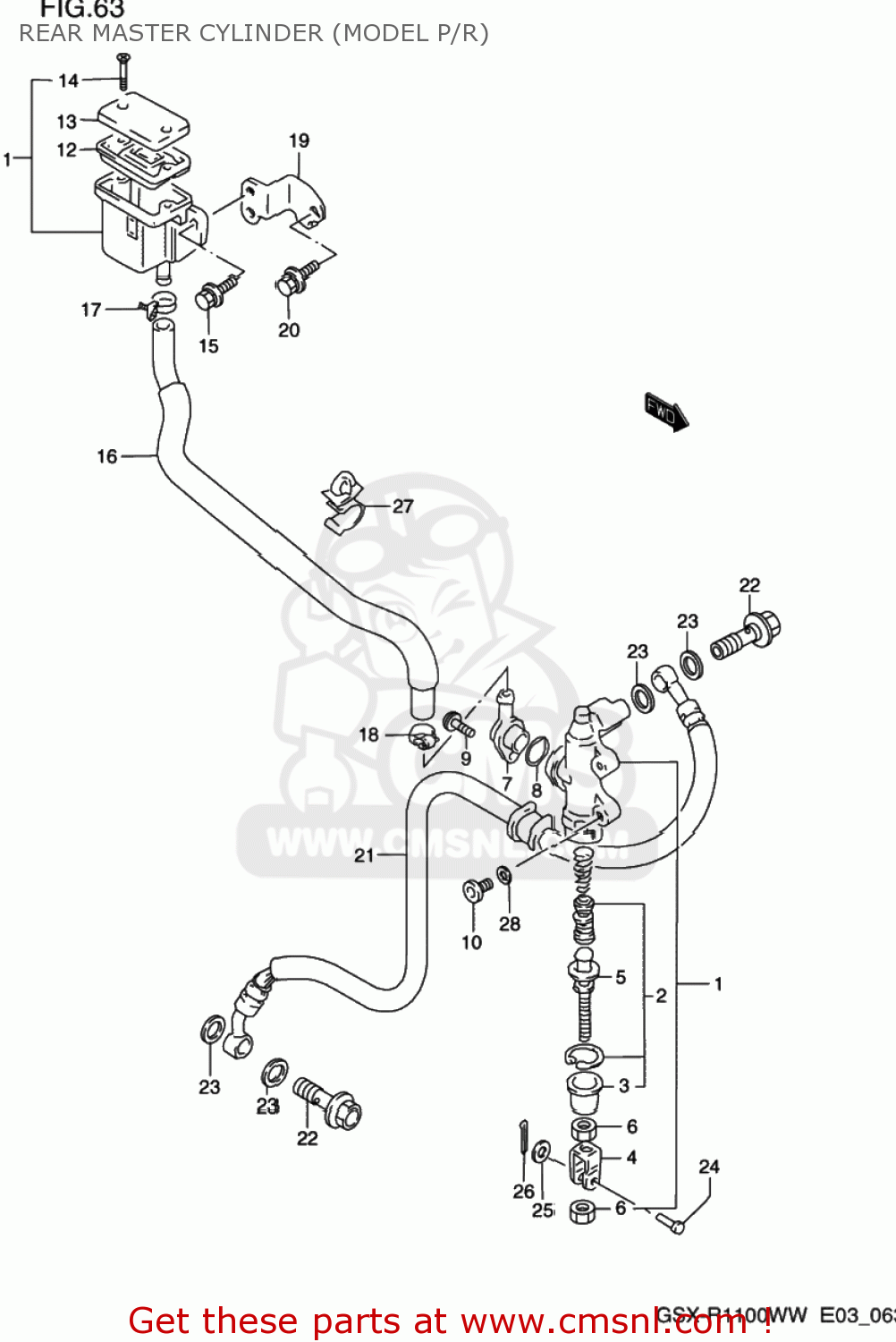

Rear master cylinder (model p/r) diagram GSXR1100W 1994 (R) USA (E03)
REAR MASTER CYLINDER (MODEL P/R) GSXR1100W 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960017E00
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 151.00
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969227A30
ref: 4
YOKE
€ 12.50
5
6967017E00
ref: 5
ROD,PUSH
€ 25.00
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
€ 4.50
8
6968634200
ref: 8
O RING
€ 3.50
9
0211274125
ref: 9
02112-7412A
SCREW
€ 2.50
10
0913908009
ref: 10
SCREW(8X22)
€ 6.50
11
6974024A01
ref: 11
TANK ASSY,RESERVOIR
€ 99.50
12
5966704700
ref: 12
DIAPHRAGM
€ 8.00
13
5966905D00
ref: 13
CAP
€ 13.50
14
6968904A00
ref: 14
SCREW
€ 2.00
15-1
0151706127
ref: 15-1
01550-06127
BOLT 6X12
€ 2.50
15-2
0155006123
ref: 15-2
01550-0612A
BOLT
€ 2.50
16
6973117E00
ref: 16
HOSE,RESERVOIR TANK
€ 29.00
17
0940016302
ref: 17
09400-16304
CLAMP
€ 4.50
18
0940215502
ref: 18
09402-17511
CLAMP
€ 8.00
19
6975046E00
ref: 19
PLATE,RESERVOIR TANK
€ 8.50
20-1
0151706207
ref: 20-1
01550-06207
BOLT 6X20
€ 2.50
20-2
0155006163
ref: 20-2
01550-0616A
BOLT
€ 2.50
21
6948046E00
ref: 21
HOSE COMP,REAR BRAKE
€ 82.00
22-1
0936010017
ref: 22-1
BOLT UNION
€ 6.50
22-2
0936010039
ref: 22-2
09360-10061
BOLT UNION
€ 6.50
23
0916110009
ref: 23
WASHER(10X15X1.5)
€ 2.00
24
0920006037
ref: 24
09200-06068
PIN
€ 5.00
25-1
0832221067
ref: 25-1
08322-01067
WASHER
€ 2.00
25-2
0832201063
ref: 25-2
08322-0106B
WASHER
€ 2.00
26
0411120158
ref: 26
04111-2015A
PIN
€ 1.50
27
0940316307
ref: 27
CLAMP
€ 2.00
28-1
0832121088
ref: 28-1
08321-01087
LOCK WASHER
€ 2.00
28-2
0832101083
ref: 28-2
08321-0108A
LOCK WASHER
€ 2.50
