FRONT DAMPER (MODEL S/T/V/W)
GSXR1100W 1994 (R) USA (E03)

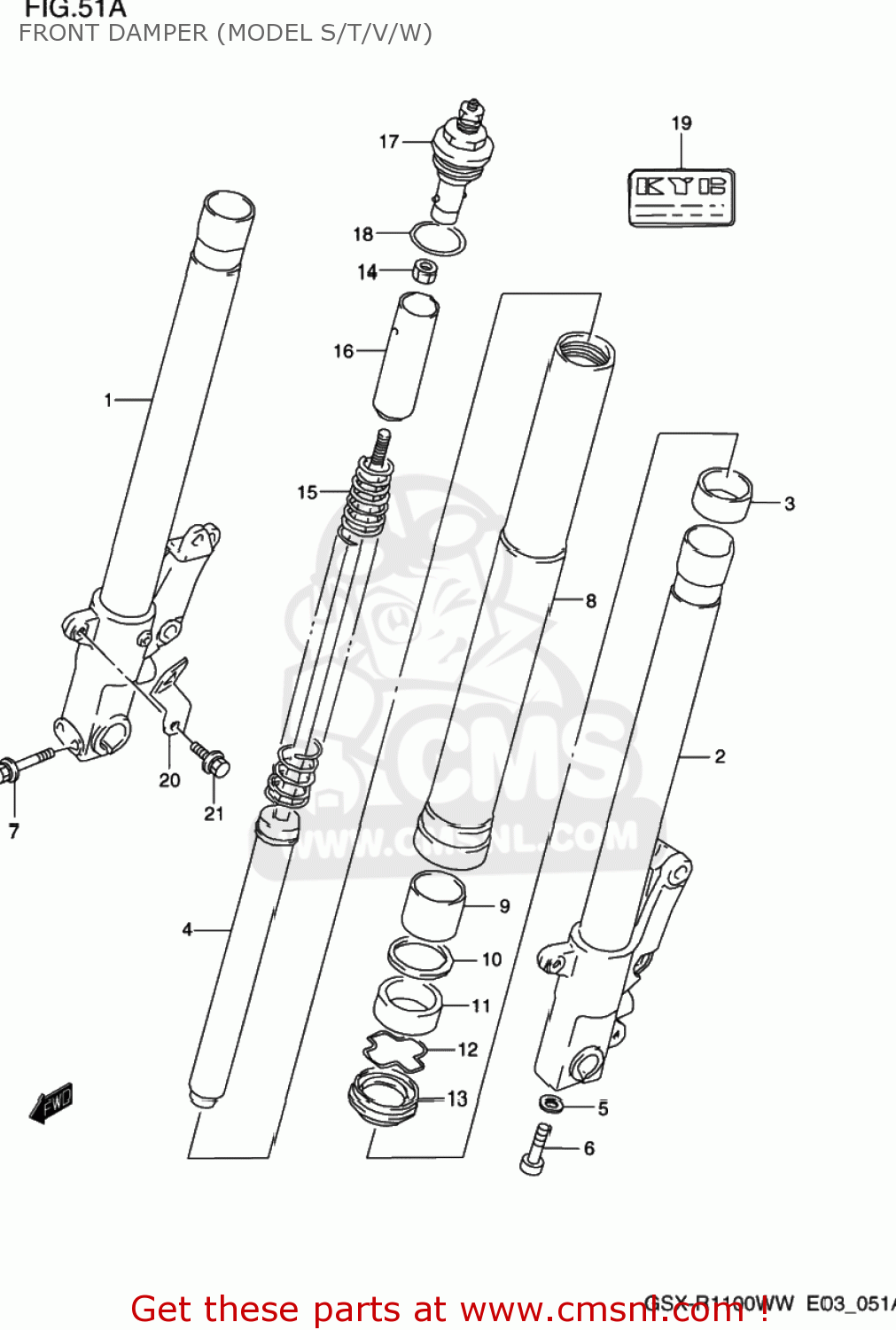

Front damper (model s/t/v/w) diagram GSXR1100W 1994 (R) USA (E03)
FRONT DAMPER (MODEL S/T/V/W) GSXR1100W 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110346E30
ref:
DAMPER ASSEMBLY,RIGHT
€ 0.00
5110446E20
ref:
DAMPER ASSEMBLY,LEFT
€ 1,312.00
1
5111046E20
ref: 1
TUBE,INNER,R
€ 467.00
2
5112046E20
ref: 2
TUBE,INNER,L
€ 452.00
3
5112140C00
ref: 3
PISTON
€ 11.50
4
5114646E20
ref: 4
CYLINDER ASSY
€ 520.50
5
5114840300
ref: 5
GASKET,CYLINDER (NAS)
€ 2.50
6
5114740C00
ref: 6
BOLT,OIL LOCK PIECE,12X22
€ 24.50
7
0155008507
ref: 7
BOLT
€ 3.50
8
5113046E20
ref: 8
TUBE,OUTER
€ 583.50
9
5116746E20
ref: 9
METAL,SLIDE
€ 18.50
10
5115814200
ref: 10
WASHER
€ 4.00
11
5115346E20
ref: 11
SEAL,OIL
€ 15.50
12
5115614200
ref: 12
RING,STOPPER
€ 4.50
13
5117346E20
ref: 13
SEAL,DUST
€ 19.50
14
5135213A60
ref: 14
NUT,ROD
€ 1.50
15
5117146E20
ref: 15
SPRING,MAIN
€ 53.50
16
5117646E20
ref: 16
SPACER,SPRING
€ 24.50
17
5135146E20
ref: 17
BOLT ASSY,FORK
€ 138.50
18
6227814100
ref: 18
O RING
€ 3.50
19
5149841C00
ref: 19
LABEL
€ 0.00
20-1
5159017D10
ref: 20-1
51590-17D1V
PLATE,FRONT FENDER,LEFT
€ 10.00
20-2
5158017D10
ref: 20-2
51580-17D1V
PLATE,FRONT FENDER,RIGHT
€ 11.50
21
0155008123
ref: 21
01550-0812A
BOLT
€ 3.50
