SEAT
GSXR1100W 1994 (R) USA (E03)

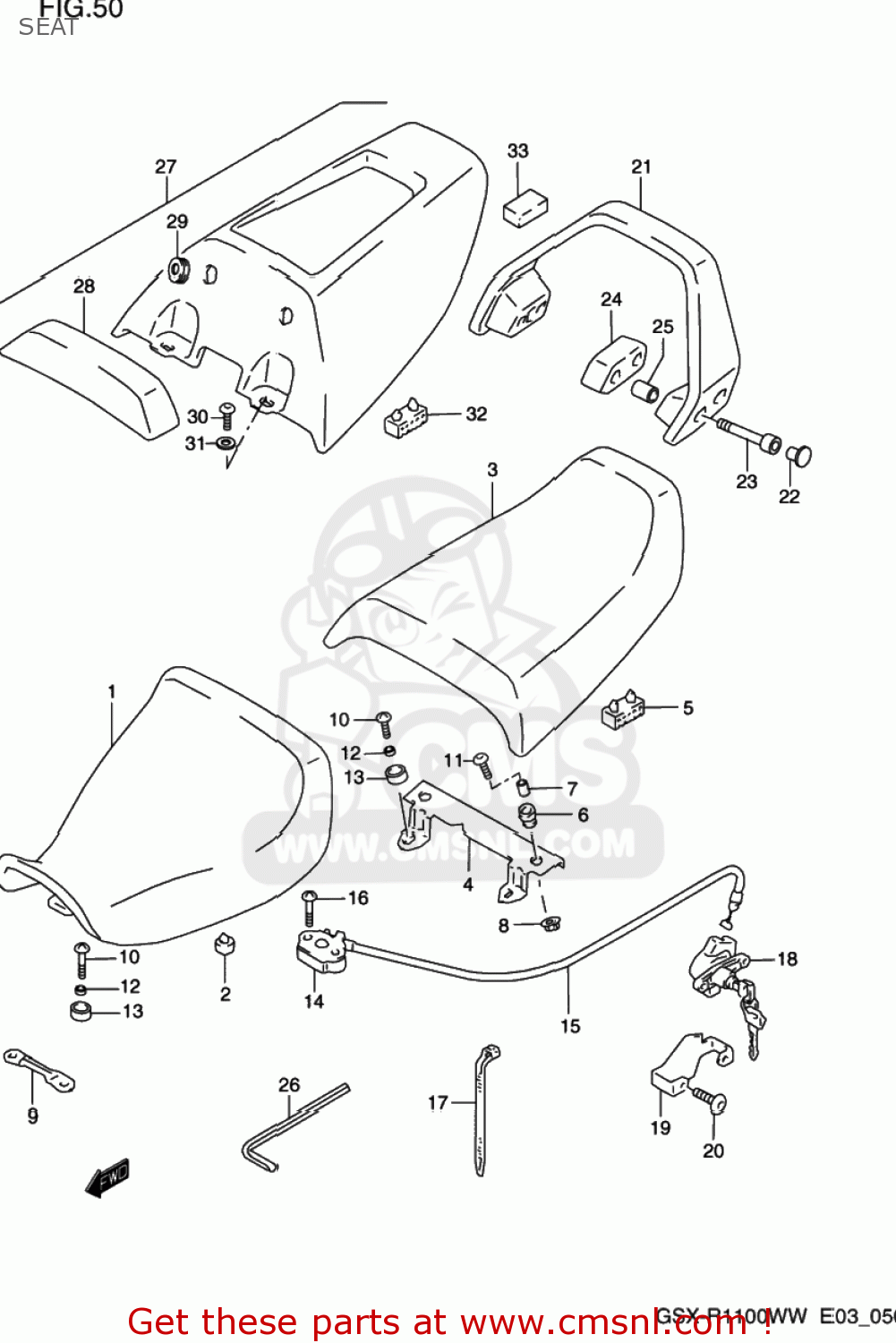

Seat diagram GSXR1100W 1994 (R) USA (E03)
SEAT GSXR1100W 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510046E0058R
ref: 1
SEAT ASSY
€ 251.50
2
0932110011
ref: 2
CUSHION
€ 3.00
3-1
4530046E0058R
ref: 3-1
SEAT ASSY,PILLION
€ 247.00
3-2
4530046E005FM
ref: 3-2
45300-46E00-58R
SEAT ASSEMBLY,PILLION
€ 247.00
4
4532146E00
ref: 4
PLATE,FR HOOK
€ 43.00
5
4514931300
ref: 5
CUSHION,SEAT(40X20X15)
€ 2.00
6
4521506B00
ref: 6
CUSHION
€ 4.50
7
4521606B00
ref: 7
SPACER
€ 2.50
8
0831610063
ref: 8
08316-1006B
NUT
€ 2.50
9-1
4511946E00
ref: 9-1
45119-17E00
PLATE,SEAT HOOK,FRONT
€ 9.00
9-2
4511917E00
ref: 9-2
PLATE,SEAT FR HOOK
€ 9.00
10-1
0214206164
ref: 10-1
02142-0616A
SCREW
€ 2.50
10-2
0913906052
ref: 10-2
09122-66007
SCREW (6X14)
€ 2.00
10-3
0913906081
ref: 10-3
09122-66007
SCREW
€ 2.00
11
0913906027
ref: 11
SCREW(6X12)
€ 3.00
12
0918006053
ref: 12
09180-06309
SPACER (6.8X10X4.7)
€ 2.00
13
4514904A00
ref: 13
CUSHION,TAIL COVER UPR
€ 2.00
14
4522046E00
ref: 14
BRACKET,SEAT SUPPORT RR
€ 39.00
15
4528046E00
ref: 15
CABLE,SEAT LOCK
€ 16.50
16-1
0211206255
ref: 16-1
02112-0625A
SCREW
€ 1.50
16-2
0212206253
ref: 16-2
02122-0625A
SCREW
€ 2.00
17
0940718403
ref: 17
09407-18402
CLAMP L:165
€ 2.50
18
9570012852
ref: 18
95700-12853
LOCK SET,SEAT
€ 110.50
19
4528945D01
ref: 19
PLATE,SEAT LOCK GUARD
€ 10.50
20
0913906075
ref: 20
SCREW(6X12)
€ 3.00
21-1
4621146E000JW
ref: 21-1
HANDLE,PILLION RIDER
€ 194.00
21-2
4621146E0033J
ref: 21-2
HANDLE,PILLION RIDER
€ 217.50
21-3
4621146E0017U
ref: 21-3
HANDLE,PILLION RIDER
€ 217.50
21-4
4621146E0035W
ref: 21-4
HANDLE,PILLION RIDER
€ 217.50
22
0925006004
ref: 22
CAP(OD:14.5)
€ 1.50
23-1
0711008655
ref: 23-1
07130-0865B
BOLT
€ 3.50
23-2
0713008653
ref: 23-2
07130-0865B
BOLT
€ 3.50
24-1
4623846E00
ref: 24-1
CUSHION,PILLION RIDER HANDLE,R
€ 12.50
24-2
4623946E00
ref: 24-2
CUSHION,PILLION RIDER HANDLE,L
€ 9.50
25
0918008180
ref: 25
09180-08180-XC0
SPACER (8.5X16X37)
€ 5.50
26
0981600103
ref: 26
SPANNER,HEXAGON(4)
€ 3.00
27-1
45500468100JW
ref: 27-1
BOX SET,SEAT TAIL
€ 176.50
27-2
455004681033J
ref: 27-2
BOX SET,SEAT TAIL
€ 181.00
27-3
455004681017U
ref: 27-3
BOX SET,SEAT TAIL
€ 220.00
27-4
455004681035W
ref: 27-4
BOX SET,SEAT TAIL
€ 0.00
28
4622046E0058R
ref: 28
BACKREST,SEAT(BLACK)
€ 120.50
29
0932012031
ref: 29
CUSHION
€ 3.00
30
0913906067
ref: 30
SCREW(6X16)
€ 3.00
31
0916006066
ref: 31
WASHER(6.5X20X1.6)
€ 2.00
32
4514931300
ref: 32
CUSHION,SEAT(40X20X15)
€ 2.00
33
4559112C00
ref: 33
PROTECTOR,TAIL BOX
€ 3.50
