TRANSMISSION
GSXR1100W 1994 (R) USA (E03)

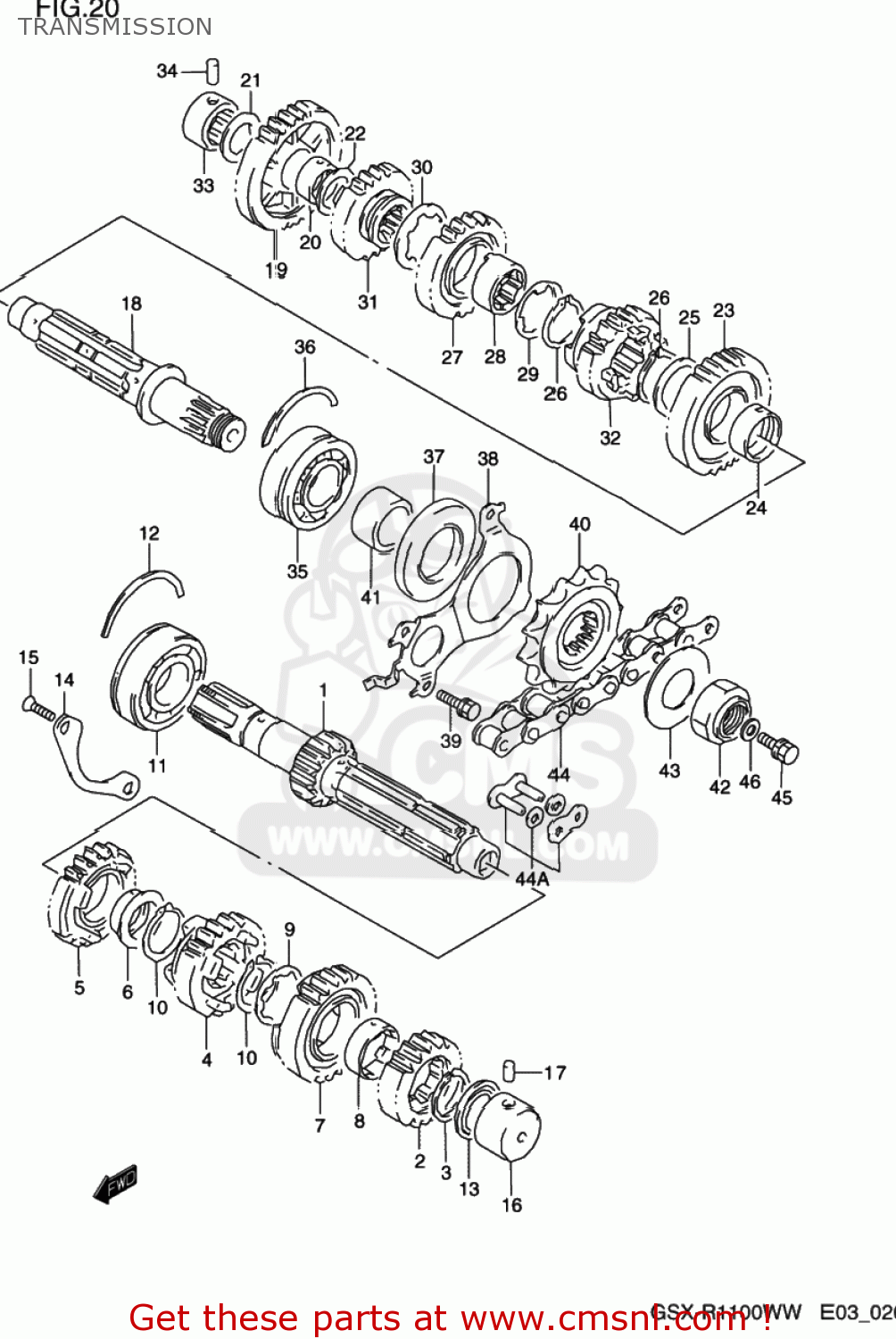

Transmission diagram GSXR1100W 1994 (R) USA (E03)
TRANSMISSION GSXR1100W 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412026D10
ref: 1
SHAFT COMP,COUNTER
€ 292.50
2
2422126D00
ref: 2
GEAR,2ND DRIVE
€ 86.50
3
0938028008
ref: 3
CIRCLIP
€ 5.00
4
2423126D02
ref: 4
GEAR,THIRD DRIVE
€ 164.50
5
2424126D10
ref: 5
GEAR,FOURTH DRIVE
€ 149.50
6
0930128001
ref: 6
BUSH(28X32X2)
€ 19.50
7-1
2425126D01
ref: 7-1
24251-26D02
GEAR,FIFTH DRIVE
€ 115.50
7-2
2425126D02
ref: 7-2
GEAR,5TH DRIVE
€ 115.50
8
2433224A00
ref: 8
BUSH
€ 18.00
9
0916728001
ref: 9
WASHER,LOCK
€ 3.00
10
0833131286
ref: 10
08331-3128A
CIRCLIP
€ 2.50
11-1
0926225051
ref: 11-1
09262-25105
BEARING(25X62X17)
€ 59.50
11-2
0926225105
ref: 11-2
BEARING(25X62X17)
€ 59.50
12
0939062012
ref: 12
C RING
€ 5.00
13
0928520006
ref: 13
SEAL,OIL(20X31.2X2.7)
€ 7.00
14
2474127A00
ref: 14
RETAINER,CNTR SHAFT BEARING
€ 7.00
15-1
0212206167
ref: 15-1
SCREW
€ 2.00
15-2
0212206163
ref: 15-2
02122-0616A
SCREW ,6X16
€ 2.00
16
0926320082
ref: 16
09263-20085
BEARING
€ 50.50
17
0422107129
ref: 17
PIN
€ 1.50
18
2413146E10
ref: 18
SHAFT,DRIVE
€ 194.00
19-1
2431126D00
ref: 19-1
GEAR,1ST DRIVEN
€ 127.50
19-1
2431126D00
ref: 19-1
GEAR,1ST DRIVEN
€ 127.50
19-2
2431126D10
ref: 19-2
GEAR,1ST DRIVEN
€ 117.00
19-2
2431126D10
ref: 19-2
GEAR,1ST DRIVEN
€ 117.00
20
0930022005
ref: 20
24312-02F00
BUSHING
€ 19.50
21-1
0821120341
ref: 21-1
WASHER
€ 2.00
21-2
0918120251
ref: 21-2
SHIM(20X34X1)
€ 3.00
22-1
0821122341
ref: 22-1
WASHER
€ 3.00
22-2
0918122223
ref: 22-2
SHIM(22X34X1)
€ 3.00
23
2432126D01
ref: 23
GEAR,2ND DRIVEN
€ 174.50
24
0930028002
ref: 24
BUSH(28X32X11)
€ 15.50
25-1
0821128381
ref: 25-1
09181-28195
WASHER, THRUST
€ 3.50
25-2
0918128195
ref: 25-2
SHIM(28X38X1)
€ 3.50
26
0833131286
ref: 26
08331-3128A
CIRCLIP
€ 2.50
27
2433126D10
ref: 27
GEAR,3RD DRIVEN
€ 285.00
28-1
2433248B00
ref: 28-1
24332-48B01
BUSHING,THIRD DRIVEN GEAR
€ 28.50
28-2
2433248B01
ref: 28-2
BUSH,3RD DRIVEN GEAR
€ 28.50
29
0916728001
ref: 29
WASHER,LOCK
€ 3.00
30
0916728008
ref: 30
WASHER,LOCK
€ 6.00
31-1
2434126D00
ref: 31-1
GEAR,4TH DRIVEN
€ 130.50
31-1
2434126D00
ref: 31-1
GEAR,4TH DRIVEN
€ 130.50
31-2
2434126D10
ref: 31-2
24341-26D11
GEAR,FOURTH DRIVEN
€ 138.00
31-2
2434126D10
ref: 31-2
24341-26D11
GEAR,FOURTH DRIVEN
€ 138.00
31-3
2434126D11
ref: 31-3
GEAR,4TH DRIVEN
€ 138.00
32-1
2435126D20
ref: 32-1
24351-26D21
GEAR,FIFTH DRIVEN
€ 134.50
32-2
2435126D21
ref: 32-2
GEAR,5TH DRIVEN
€ 134.50
33
0926320040
ref: 33
BEARING(20X34X20)
€ 42.50
34
0422107209
ref: 34
PIN
€ 1.50
35
0926228025
ref: 35
BEARING(28X70X18)
€ 97.50
36
0939070001
ref: 36
C RING
€ 5.50
37
0928336008
ref: 37
SEAL,OIL(34.8X70X6)
€ 16.50
38
2475117E00
ref: 38
RETAINER,DRIVE SHAFT OIL SEAL
€ 9.00
39-1
0110706127
ref: 39-1
01500-06127
BOLT
€ 2.00
39-2
0150006123
ref: 39-2
01500-0612A
BOLT
€ 2.00
40-1
2751048B00
ref: 40-1
SPROCKET,ENGINE(15T)
€ 53.50
40-2
2751046E00
ref: 40-2
SPROCKET,ENGINE (16T)
€ 52.50
41
0918025098
ref: 41
SPACER(25X36X17.7)
€ 19.00
42
0915920004
ref: 42
NUT
€ 12.00
43-1
0821125402
ref: 43-1
09181-25268
WASHER,THRUST
€ 3.00
43-2
0918125268
ref: 43-2
SHIM(25X40X1.5)
€ 3.00
44A
2762046E20
ref: 44A
27620-24F20
JOINT SET
€ 8.00
44-1
2760040C20114
ref: 44-1
27600-46E20-116
CHAIN,DRIVE #532GSV2
€ 307.50
44-2
2760046E20116
ref: 44-2
CHAIN,DRIVE(116LE)
€ 307.50
45-1
0114706168
ref: 45-1
01570-06167
BOLT
€ 2.50
45-2
0157006163
ref: 45-2
01570-0616A
BOLT
€ 2.50
46
0821206222
ref: 46
WASHER
€ 1.50
