WATER PUMP

GSXR1100W 1994 (R) USA (E03)

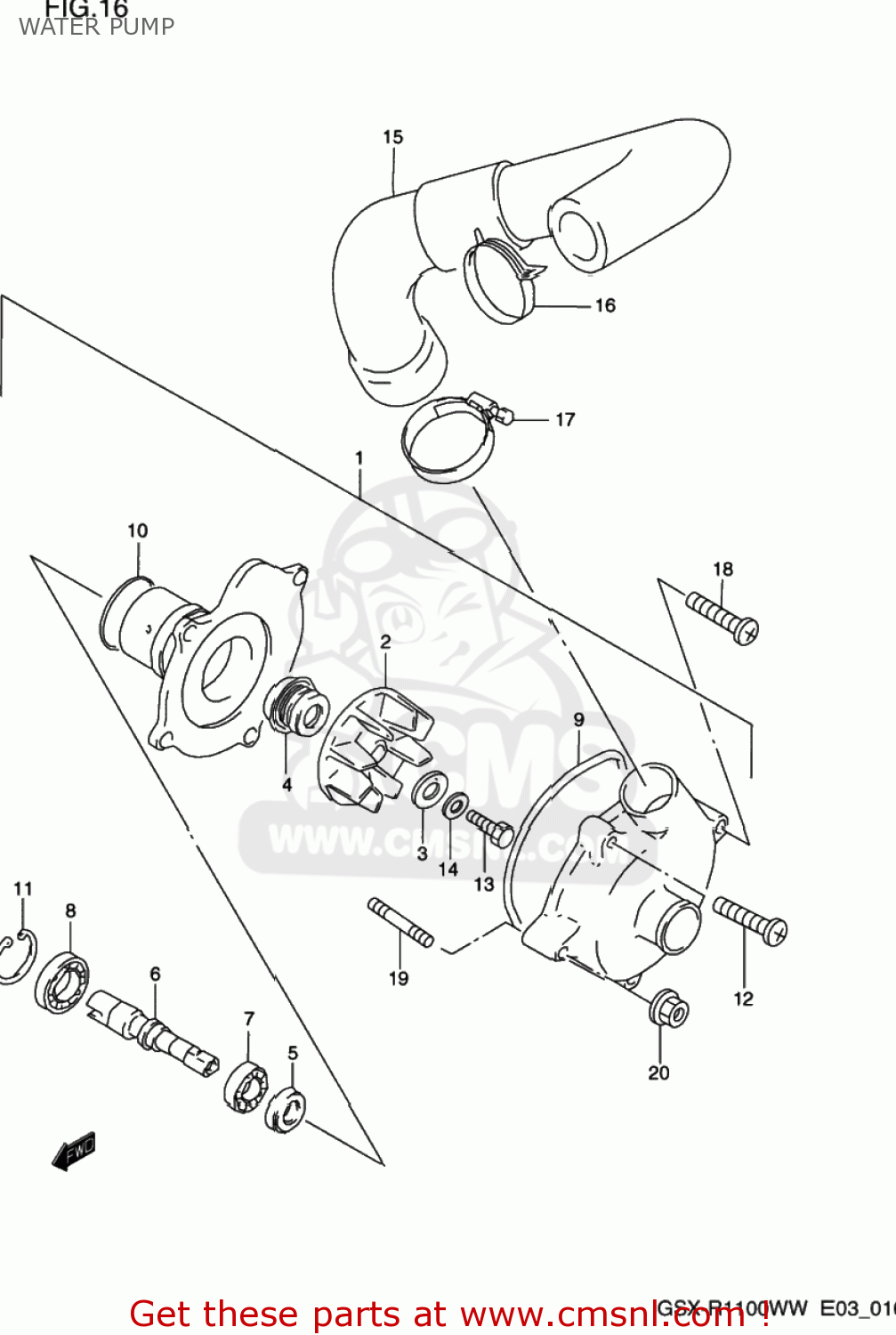

Water pump diagram GSXR1100W 1994 (R) USA (E03)

WATER PUMP GSXR1100W 1994 (R) USA (E03)

WATER PUMP GSXR1100W 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1740017E00
ref: 1-1
17400-17E01

PUMP ASSEMBLY,WATER

€ 385.50

1-2

1740017E01
ref: 1-2

PUMP ASSY,WATER

€ 385.50

2

1749117E00
ref: 2
17491-17E01

IMPELLER

€ 15.00

3

0916806025
ref: 3

GASKET(6X15X2.2) (NAS)

€ 3.00

4

1747046A00
ref: 4
17470-02F00

SEAL,MECHANICAL

€ 21.50

5-1

1746138A00
ref: 5-1
09283-10004

OILSEAL

€ 4.50

5-2

0928310004
ref: 5-2

SEAL,OIL(10X21X5)

€ 4.50

6-1

1751117E00
ref: 6-1

SHAFT

€ 86.00

6-2

1751117E01
ref: 6-2

SHAFT

€ 109.50

7-1

0811369010
ref: 7-1

BEARING

€ 19.00

7-2

0926210014
ref: 7-2

BEARING(10X26X8)

€ 13.00

8-1

0926215008
ref: 8-1

BALL BEARING 15X28X7

€ 17.00

8-2

0926212001
ref: 8-2

BEARING(12X28X8)

€ 15.00

9

1741833400
ref: 9

O RING

€ 4.00

10

1743533400
ref: 10

O RING,WATER PUMP HOLDER

€ 13.00

11

0833141286
ref: 11
08331-4128A

CIRCLIP

€ 3.50

12-1

0211206166
ref: 12-1
02112-0616A

SCREW

€ 2.00

12-2

0211206163
ref: 12-2
02112-0616A

SCREW 6X16

€ 2.00

13

0910006099
ref: 13

BOLT(6X13)

€ 2.00

14

0916406006
ref: 14

WASHER

€ 2.50

15

1785417E01
ref: 15

HOSE,WATER PUMP OUTLET

€ 24.50

16

0940126404
ref: 16
09401-26407

CLAMP

€ 3.00

17-1

0940233502
ref: 17-1
09402-38511

CLAMP

€ 10.50

17-2

0940238511
ref: 17-2

CLAMP

€ 10.50

18-1

0211206357
ref: 18-1

SCREW

€ 2.50

18-2

0211206353
ref: 18-2
02112-0635B

SCREW

€ 2.50

19

0910806117
ref: 19

BOLT,STUD

€ 3.00

20

0831610063
ref: 20
08316-1006B

NUT

€ 2.50
