GSXR1100WSK 1996 (T) BRAZIL (E37)

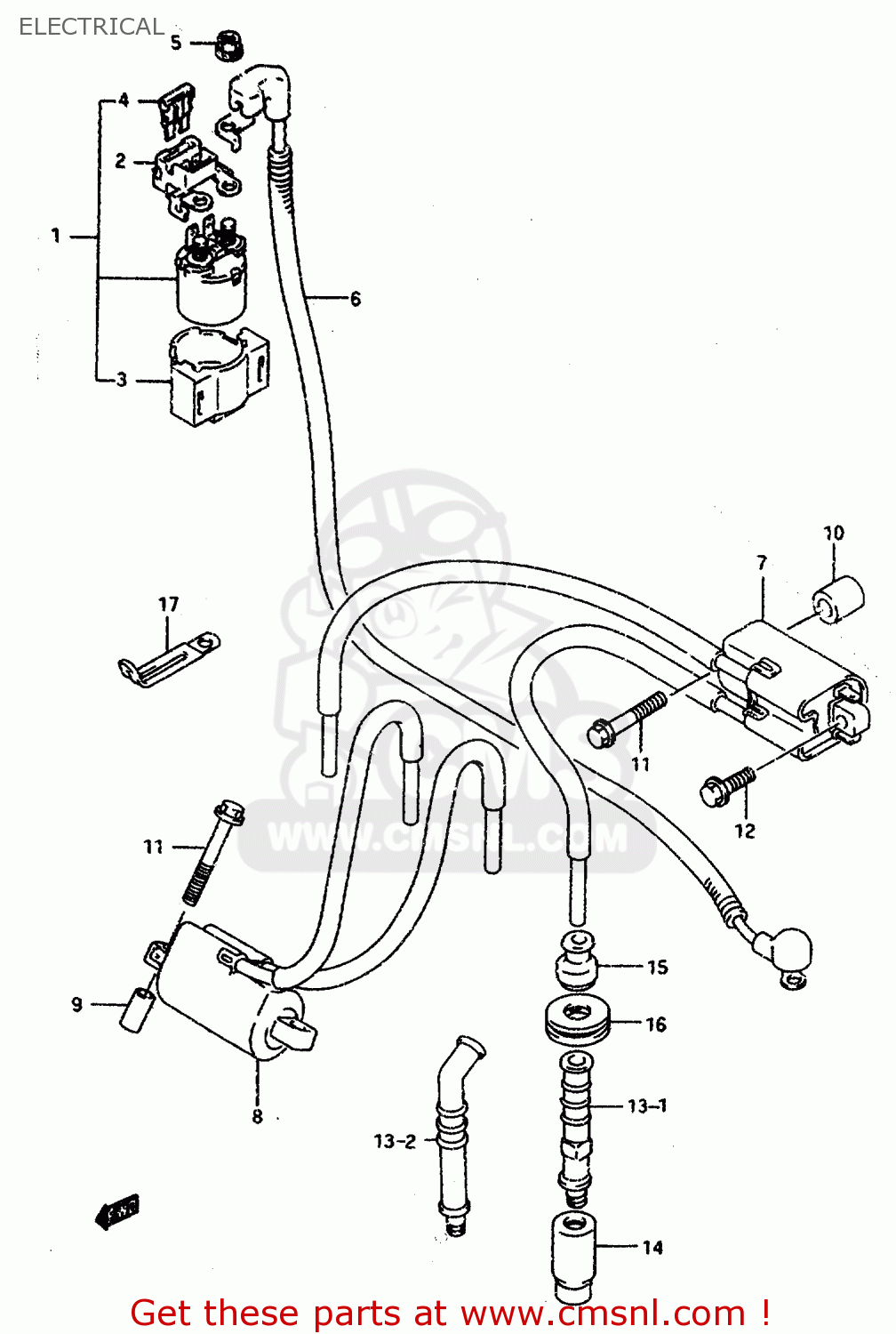

Electrical diagram GSXR1100WSK 1996 (T) BRAZIL (E37)
ELECTRICAL GSXR1100WSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
3180007D00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 87.50
2
3184107D00
ref: 2
TERMINAL,RELAY
€ 19.00
3
3189207D00
ref: 3
BRACKET,STARTING MOTOR RELAY
€ 12.00
4
0948130201
ref: 4
FUSE (30A)
€ 6.00
5
0836135068
ref: 5
NUT
€ 2.00
6-1
3381046E00
ref: 6-1
MODEL P
WIRE,STARTER MOTOR
€ 36.50
6-2
3381046E01
ref: 6-2
MODEL R/S/T
WIRE,STARTER MOTOR LEAD
€ 36.50
7-1
3341017E00
ref: 7-1
MODEL P/R
COIL ASSY,IGNITION
€ 109.50
7-2
3341046E00
ref: 7-2
MODEL S/T/V
COIL ASSY,IGNITION
€ 101.00
8
3342017E00
ref: 8
COIL ASSY,IGNITION
€ 101.50
9
0918006271
ref: 9
-09180-06072
SPACER(6.5X9X18)
€ 2.00
10
3341917E00
ref: 10
SPACER,IGNITION COIL 1
€ 4.50
11-1
0151706408
ref: 11-1
MODEL P/R
BOLT
€ 2.50
11-2
0155006403
ref: 11-2
MODEL S/T/V
BOLT
€ 2.00
12-1
0151706207
ref: 12-1
MODEL P/R
BOLT 6X20
€ 2.50
12-2
0155006203
ref: 12-2
MODEL S/T/V
BOLT
€ 2.50
13-1
3351017E00
ref: 13-1
MODEL P/R
CAP,SPARK PLUG
€ 41.00
13-2
3351017E11
ref: 13-2
MODEL S/T/V
CAP ASSY,SPARK PLUG
€ 46.00
14
3354120C00
ref: 14
SEAL,SPARK PLUG
€ 19.50
15
3354238B00
ref: 15
SEAL,HIGH TENSION CORD
€ 4.50
16-1
3354317E00
ref: 16-1
MODEL P/R
COVER,SPARK PLUG CAP
€ 19.00
16-2
3354317E01
ref: 16-2
MODEL S/T/V
COVER,SPARK PLUG CAP
€ 19.00
17-1
0940406404
ref: 17-1
MODEL P/R
CLAMP
€ 3.00
17-2
0940406431
ref: 17-2
MODEL S/T/V
CLAMP(L:65)
€ 2.50
