OIL PAN - OIL PUMP
GSXR1100WSK 1996 (T) BRAZIL (E37)

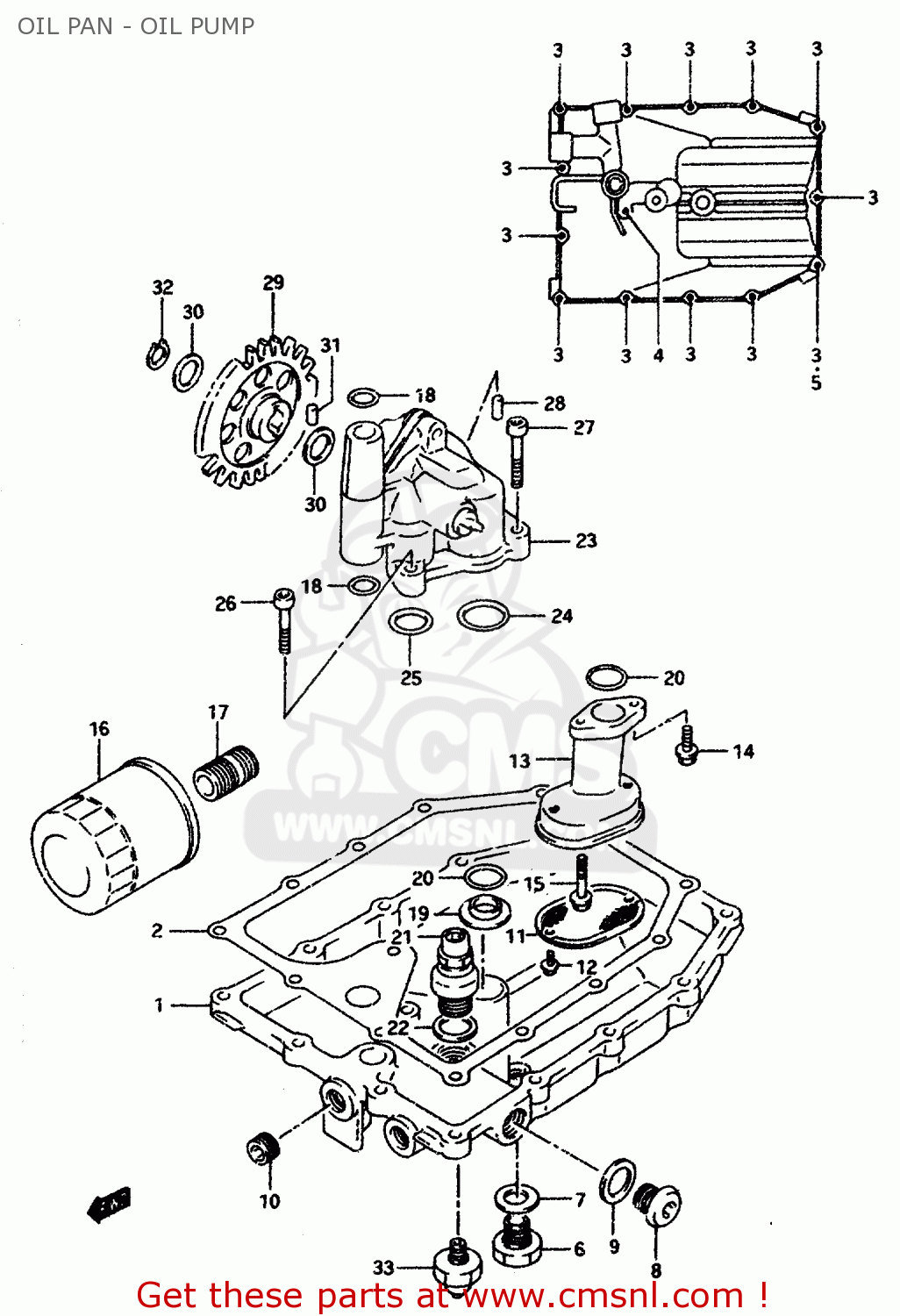

Oil pan - oil pump diagram GSXR1100WSK 1996 (T) BRAZIL (E37)
OIL PAN - OIL PUMP GSXR1100WSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
1151146E02
ref: 1
PAN,OIL
€ 539.00
2
1148917E01
ref: 2
-11489-17E00
GASKET,OIL PAN (NAS)
€ 18.50
3-1
0154706257
ref: 3-1
MODEL P
BOLT
€ 2.50
3-2
0154706253
ref: 3-2
MODEL R/S/T/V
SCREW
€ 2.50
4-1
0154706357
ref: 4-1
MODEL P
BOLT
€ 2.50
4-2
0154706353
ref: 4-2
MODEL R/S/T/V
BOLT
€ 3.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
€ 2.00
6
0924714001
ref: 6
PLUG
€ 5.00
7
0916814002
ref: 7
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
8
0924816010
ref: 8
PLUG
€ 4.50
9
0916816002
ref: 9
GASKET(16X22X2) (NAS)
€ 2.00
10
1153246E00
ref: 10
JET,OIL PAN GALLERY
€ 7.50
11
1652038A00
ref: 11
STRAINER,ENGINE OIL
€ 7.50
12-1
0211275123
ref: 12-1
MODEL P/R
SCREW
€ 2.50
12-2
0158005123
ref: 12-2
MODEL S/T/V
BOLT
€ 2.00
13
1652546E01
ref: 13
PROTECTOR,OIL STRAINER
€ 26.50
14-1
0151706206
ref: 14-1
MODEL P
BOLT 6X20
€ 2.50
14-2
0155006203
ref: 14-2
MODEL R/S/T/V
BOLT
€ 2.50
15-1
0151706556
ref: 15-1
MODEL P
BOLT
€ 2.00
15-2
0155006553
ref: 15-2
MODEL R/S/T/V
BOLT, HYDRAULIC UNIT NO.2
€ 2.00
16
1651006B01
ref: 16
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
17
1659106B00
ref: 17
UNION,OIL STAND
€ 6.00
18
0928012012
ref: 18
O RING(D:2.4,ID:11.8)
€ 5.00
19
1652927A01
ref: 19
GASKET,OIL OUTLET (NAS)
€ 2.00
20
0928018009
ref: 20
O RING(D:3.2,ID:17.8)
€ 8.00
21-1
1644017C00
ref: 21-1
~E.NO.109413
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
21-2
1644017C01
ref: 21-2
E.NO.109414~
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
22
0916816002
ref: 22
GASKET(16X22X2) (NAS)
€ 2.00
23
1640046E00
ref: 23
PUMP ASSY,ENGINE OIL
€ 267.50
24
0928026005
ref: 24
O RING(D:2.4,ID:26.2)
€ 2.50
25
0928018009
ref: 25
O RING(D:3.2,ID:17.8)
€ 8.00
26-1
0711006307
ref: 26-1
MODEL P
BOLT
€ 3.00
26-2
0713006303
ref: 26-2
MODEL R/S/T/V
BOLT
€ 3.00
27-1
0711006357
ref: 27-1
MODEL P
BOLT
€ 3.50
27-2
0713006353
ref: 27-2
MODEL R/S/T/V
BOLT
€ 3.50
28
0421109129
ref: 28
PIN
€ 2.00
29
1633219C00
ref: 29
GEAR,OIL PUMP DRIVEN(NT:37)
€ 60.00
30
0822112205
ref: 30
SHIM
€ 1.50
31
0926105006
ref: 31
PIN(5X18)
€ 1.50
32
0833131126
ref: 32
CIRCLIP,12 MM
€ 2.00
33
3782033D00
ref: 33
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
