FRONT CALIPERS (MODEL S/T/V)

GSXR1100WSK 1996 (T) BRAZIL (E37)

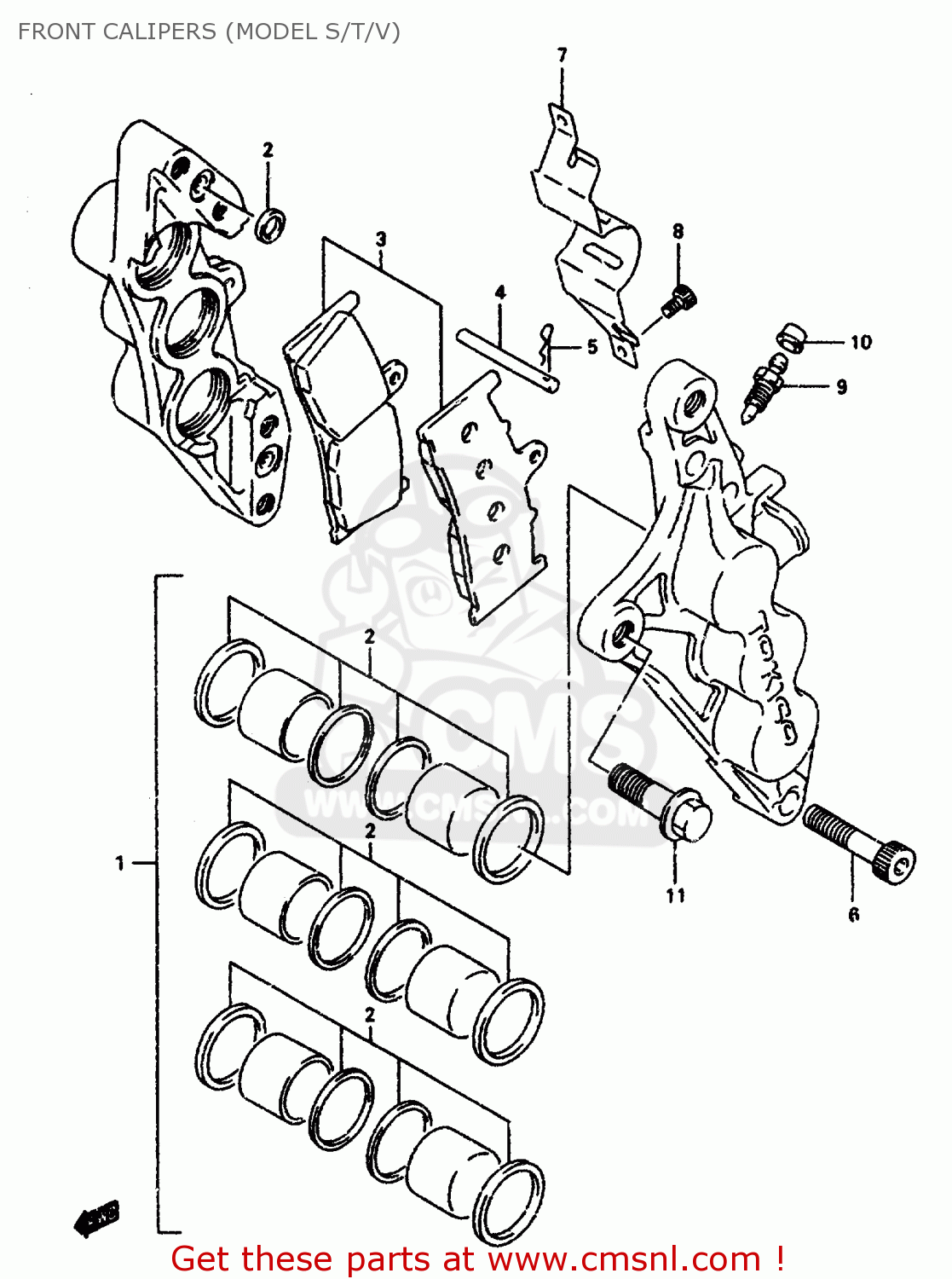

Front calipers (model s/t/v) diagram GSXR1100WSK 1996 (T) BRAZIL (E37)

FRONT CALIPERS (MODEL S/T/V) GSXR1100WSK 1996 (T) BRAZIL (E37)

FRONT CALIPERS (MODEL S/T/V) GSXR1100WSK 1996 (T) BRAZIL (E37)

prices are in EUR

ref

part #

description

quantity

0

5910046E20
ref: 0
MODEL S

CALIPER ASSEMBLY,FRONT,RIGHT

€ 704.00

0

5930046E20
ref: 0
MODEL S

CALIPER ASSEMBLY,FRONT,LEFT

€ 695.50

0

5910046E21
ref: 0
MODEL T/V

CALIPER ASSEMBLY,FRONT,RIGHT

€ 704.00

0

5930046E21
ref: 0
MODEL T/V

CALIPER ASSEMBLY,FRONT,LEFT

€ 695.50

1

5910046810
ref: 1

PISTON SET

€ 99.00

2

5910004860
ref: 2

SEAL SET,PISTON

€ 48.50

3

5930046840
ref: 3

PAD SET (NAS)

€ 90.00

4

6914145000
ref: 4

PIN,PAD

€ 6.50

5

6914245000
ref: 5

CLIP,PAD PIN

€ 4.50

6-1

5914500A00
ref: 6-1
MODEL S

BOLT,CALIPER

€ 18.00

6-2

5914533E00
ref: 6-2
MODEL T/V

BOLT,HOUSING

€ 9.00

7

5915146E00
ref: 7

COVER,CALIPER

€ 27.00

8

5915322D00
ref: 8

SCREW

€ 4.50

9

5912118410
ref: 9

BLEEDER

€ 8.00

10

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

11

0155010303
ref: 11

BOLT

€ 3.00
