WATER PUMP
GSXR1100WSK 1996 (T) BRAZIL (E37)

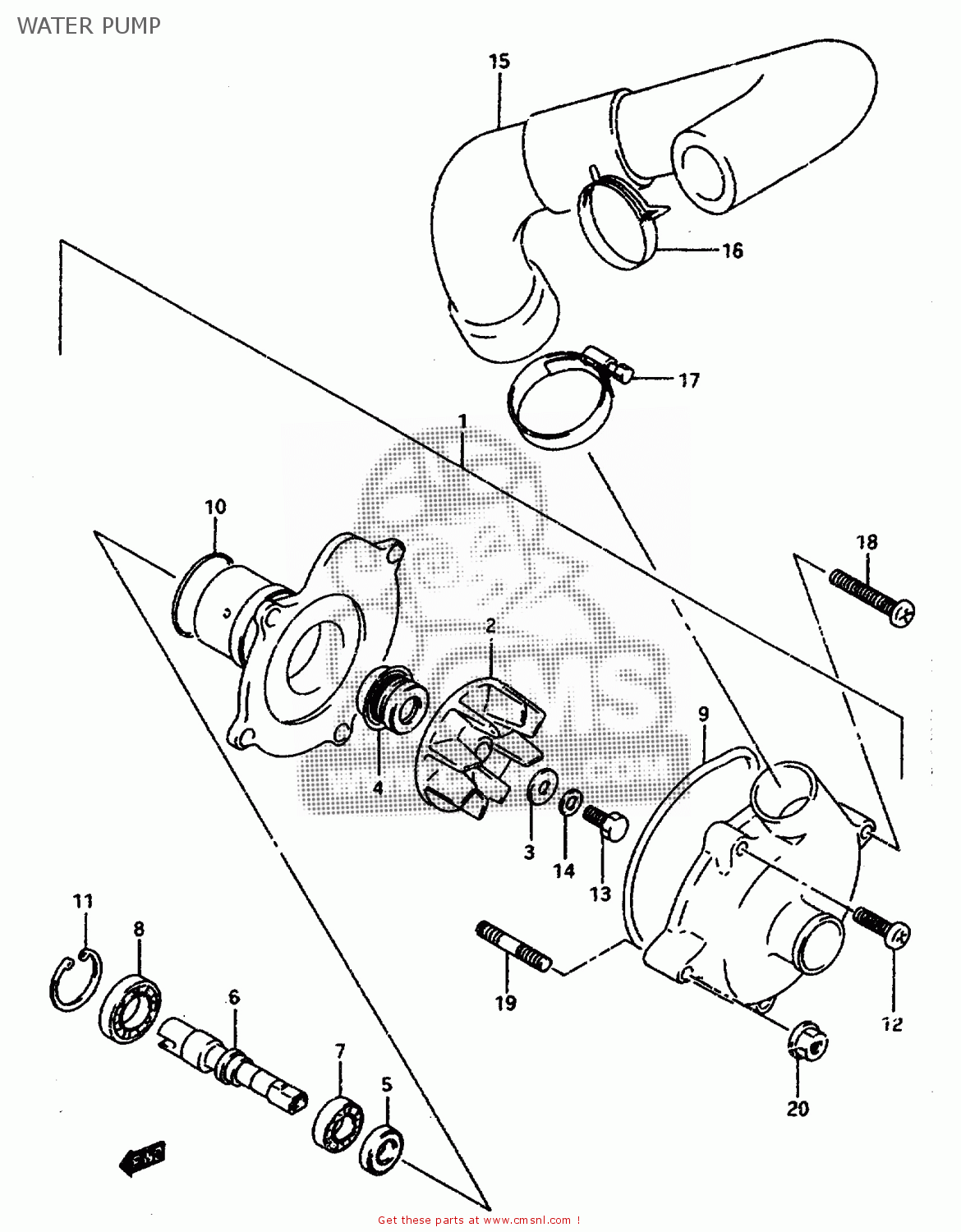

Water pump diagram GSXR1100WSK 1996 (T) BRAZIL (E37)
WATER PUMP GSXR1100WSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
1740017E00
ref: 1-1
MODEL P/R
PUMP ASSEMBLY,WATER
€ 385.50
1-2
1740017E01
ref: 1-2
MODEL S/T/V
PUMP ASSY,WATER
€ 385.50
2
1749117E00
ref: 2
IMPELLER
€ 15.00
3
0916806025
ref: 3
GASKET(6X15X2.2) (NAS)
€ 3.00
4
1747046A00
ref: 4
SEAL,MECHANICAL
€ 21.50
5-1
1746138A00
ref: 5-1
MODEL P/R/S
OILSEAL
€ 4.50
5-2
0928310004
ref: 5-2
MODEL T/V
SEAL,OIL(10X21X5)
€ 4.50
6-1
1751117E00
ref: 6-1
MODEL S/T/V
SHAFT
€ 86.00
6-2
1751117E01
ref: 6-2
MODEL S/T/V
SHAFT
€ 109.50
7-1
0811369010
ref: 7-1
MODEL P/R
BEARING
€ 19.00
7-2
0926210014
ref: 7-2
MODEL S/T/V
BEARING(10X26X8)
€ 13.00
8-1
0926215008
ref: 8-1
MODEL P/R
BALL BEARING 15X28X7
€ 17.00
8-2
0926212001
ref: 8-2
MODEL S/T/V
BEARING(12X28X8)
€ 15.00
9
1741833400
ref: 9
O RING
€ 4.00
10
1743533400
ref: 10
O RING,WATER PUMP HOLDER
€ 13.00
11
0833141286
ref: 11
MODEL P/R
CIRCLIP
€ 3.50
12-1
0211206163
ref: 12-1
MODEL P/R
SCREW 6X16
€ 2.00
12-2
0211206163
ref: 12-2
MODEL S/T/V
SCREW 6X16
€ 2.00
13
0910006099
ref: 13
BOLT(6X13)
€ 2.00
14
0916406006
ref: 14
WASHER
€ 2.50
15-1
1785417E00
ref: 15-1
MODEL P
HOSE,WATER PUMP,OUTLET
€ 24.50
15-2
1785417E01
ref: 15-2
MODEL R/S/T/V
HOSE,WATER PUMP OUTLET
€ 24.50
16
0940126404
ref: 16
CLAMP
€ 3.00
17-1
0940233502
ref: 17-1
MODEL P/R
CLAMP
€ 10.50
17-2
0940238511
ref: 17-2
MODEL S/T/V
CLAMP
€ 10.50
18-1
0211206357
ref: 18-1
MODEL P/R
SCREW
€ 2.50
18-2
0211206353
ref: 18-2
MODEL S/T/V
SCREW
€ 2.50
19
0910806117
ref: 19
MODEL S/T/V
BOLT,STUD
€ 3.00
20
0831610063
ref: 20
MODEL S/T/V
NUT
€ 2.50
