MUFFLER (MODEL S/T/V)
GSXR1100WSK 1996 (T) BRAZIL (E37)

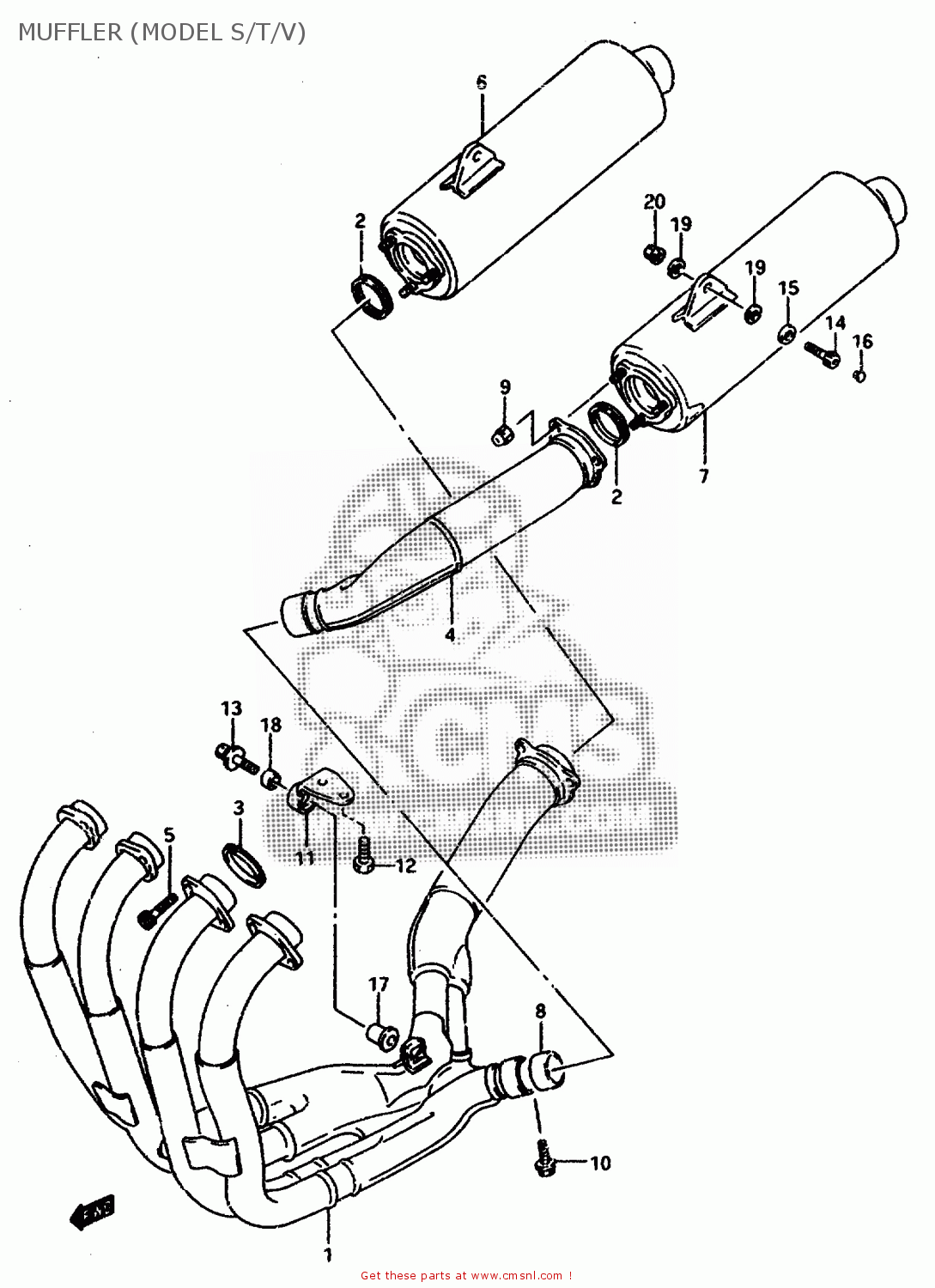

Muffler (model s/t/v) diagram GSXR1100WSK 1996 (T) BRAZIL (E37)
MUFFLER (MODEL S/T/V) GSXR1100WSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
1410046E50
ref: 1
EXHAUST
€ 1,370.50
2
1418131E00
ref: 2
GASKET,MUFFLER JOINT
€ 6.50
3
1418146E00
ref: 3
GASKET,EXHAUST PIPE
€ 6.50
4
1424046E50
ref: 4
PIPE,JOINT,L
€ 316.00
5
0713008253
ref: 5
BOLT
€ 3.50
6
1431046E50H01
ref: 6
BODY,MUFFLER.R
€ 1,220.50
7
1434046E50H01
ref: 7
BODY,MUFFLER,L
€ 1,220.50
8
1477146E00
ref: 8
CONNECTOR,MUFFLER
€ 13.50
9
0915908101
ref: 9
NUT
€ 7.50
10
0155008403
ref: 10
BOLT
€ 3.50
11
1477046E50
ref: 11
BRACKET,EXHAUST SUPPORT
€ 35.50
12
0910008240
ref: 12
BOLT(8X20)
€ 3.50
13
0911808068
ref: 13
BOLT 8X40
€ 7.50
14
0713010407
ref: 14
BOLT
€ 3.50
15
0916010095
ref: 15
WASHER
€ 2.00
16
0925008012
ref: 16
CAP(OD:12)
€ 2.00
17
0918008157
ref: 17
SPACER(8.6X12X18.5)
€ 5.50
18
0932012062
ref: 18
CUSHION
€ 14.50
19
0916010505
ref: 19
WASHER (10.5X24X2.3)
€ 2.00
20
0831610103
ref: 20
NUT
€ 2.00
10
1477046E00
ref: 10
DAMPER COMP,MUFFLER SUPPORT C
€ 41.00
11
0910008240
ref: 11
BOLT(8X20)
€ 3.50
12
0911808080
ref: 12
BOLT(8X35)
€ 2.50
13
0911610122
ref: 13
BOLT
€ 2.50
14
0918008157
ref: 14
SPACER(8.6X12X18.5)
€ 5.50
15
0932012062
ref: 15
CUSHION
€ 14.50
16-1
0916010066
ref: 16-1
MODEL P
WASHER (10.5X24X2.3)
€ 2.00
16-2
0916010505
ref: 16-2
MODEL R
WASHER (10.5X24X2.3)
€ 2.00
17-1
0831616105
ref: 17-1
MODEL P
NUT
€ 2.00
17-2
0831610103
ref: 17-2
MODEL R
NUT
€ 2.00
