FUEL TANK (MODEL V)
GSXR1100WSK 1996 (T) BRAZIL (E37)

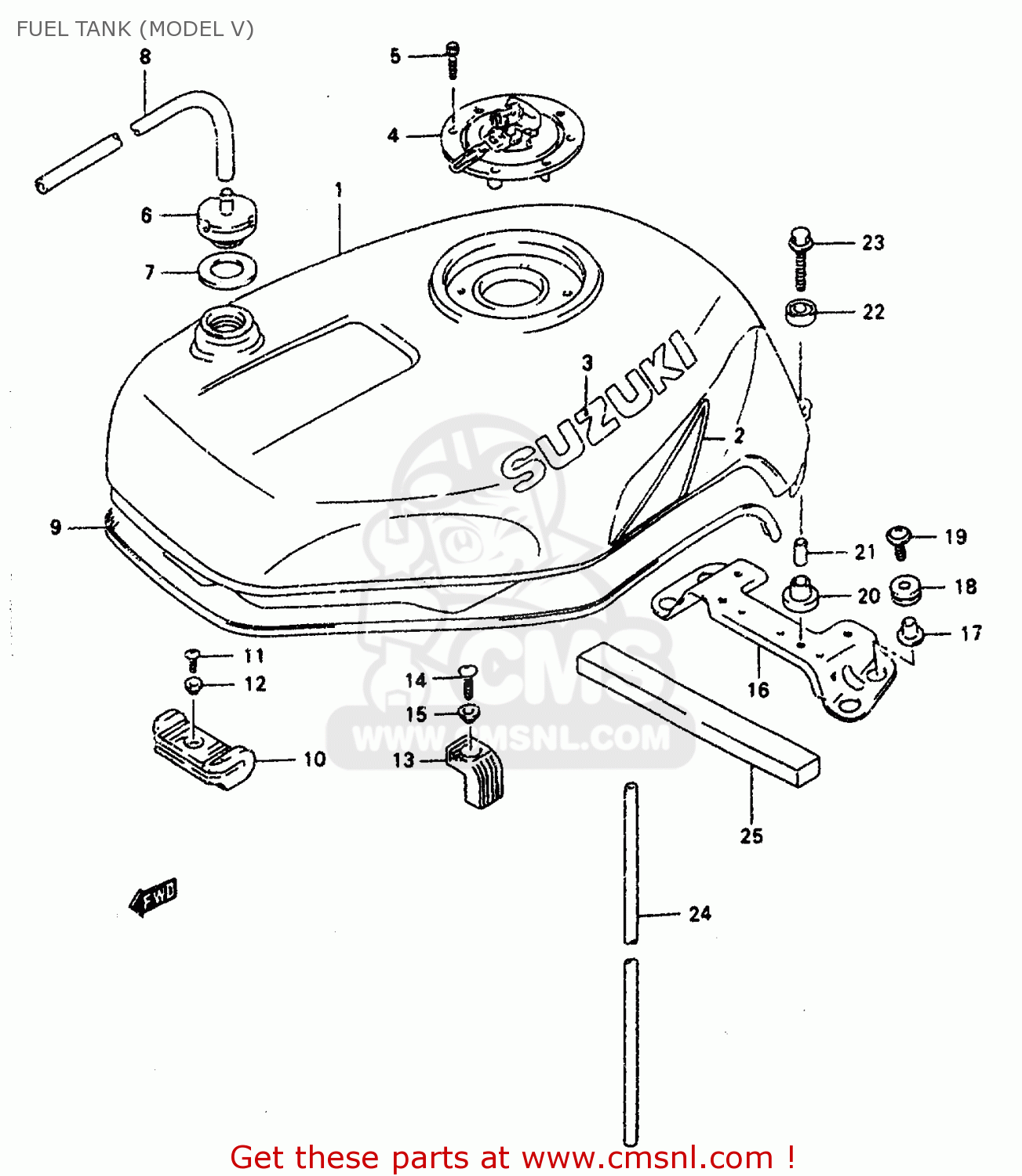

Fuel tank (model v) diagram GSXR1100WSK 1996 (T) BRAZIL (E37)
FUEL TANK (MODEL V) GSXR1100WSK 1996 (T) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410046EK0G4V
ref: 1-1
TANK ASSY,FUEL
€ 675.50
1-2
4410046EK0G2P
ref: 1-2
TANK ASSEMBLY,FUEL
€ 0.00
1-3
4410046EL0G4V
ref: 1-3
E22
TANK ASSY, FUEL
€ 0.00
1-4
4410046EL0G2P
ref: 1-4
E22
TANK ASSY, FUEL
€ 0.00
2-1
6811046E10G6L
ref: 2-1
FOR G4V
TAPE SET,FUEL TANK
€ 0.00
2-2
6811046E10G6M
ref: 2-2
FOR G2P
TAPE SET,FUEL TANK
€ 0.00
3-1
6811112C0020H
ref: 3-1
FOR G4V
EMBLEM,FUEL TANK
€ 15.50
3-2
6811112C000AT
ref: 3-2
FOR G2P
EMBLEM,FUEL TANK
€ 14.50
4
4420101852
ref: 4
CAP SET,FUEL TANK
€ 166.50
5
0910605017
ref: 5
BOLT(5X20)
€ 3.00
6
4424006B10
ref: 6
PLUG,FUEL TANK BREATHER
€ 36.00
7
0916812012
ref: 7
GASKET(12.5X20X2.5) (NAS)
€ 2.00
8
0935250823600
ref: 8
HOSE(5X8.2X600)
€ 13.00
9
6824104X5000B
ref: 9
MOLDING
€ 23.00
10
4451141C00
ref: 10
CUSHION,FUEL TANK FR
€ 13.50
11
0214205103
ref: 11
SCREW
€ 2.50
12
0916905012
ref: 12
WASHER
€ 3.00
13
4454533C01
ref: 13
CUSHION,TANK SIDE
€ 11.50
14
0214206203
ref: 14
SCREW
€ 2.00
15
0916906045
ref: 15
WASHER
€ 2.50
16
4453046E01
ref: 16
BRACKET,FUEL TANK RR
€ 38.50
17
0916906062
ref: 17
WASHER
€ 3.00
18
0932009009
ref: 18
CUSHION
€ 5.00
19
0913606126
ref: 19
SCREW(6X25)
€ 2.50
20
0932010038
ref: 20
CUSHION
€ 4.00
21
0918006271
ref: 21
SPACER(6.5X9X18)
€ 2.00
22
0932014017
ref: 22
CUSHION
€ 3.00
23
0155006353
ref: 23
BOLT
€ 2.50
24
093527010300B
ref: 24
HOSE(7X10.2X2000)
€ 17.50
25
1384117E00
ref: 25
CUSHION,AIR SEAL
€ 18.00
22
0932014017
ref: 22
CUSHION
€ 3.00
23
0155006353
ref: 23
BOLT
€ 2.50
24
093527010300B
ref: 24
HOSE(7X10.2X2000)
€ 17.50
25
1384117E00
ref: 25
CUSHION,AIR SEAL
€ 18.00
