REAR MASTER CYLINDER (MODEL S/T/V)

GSXR1100WSK 1996 (T) BRAZIL (E37)

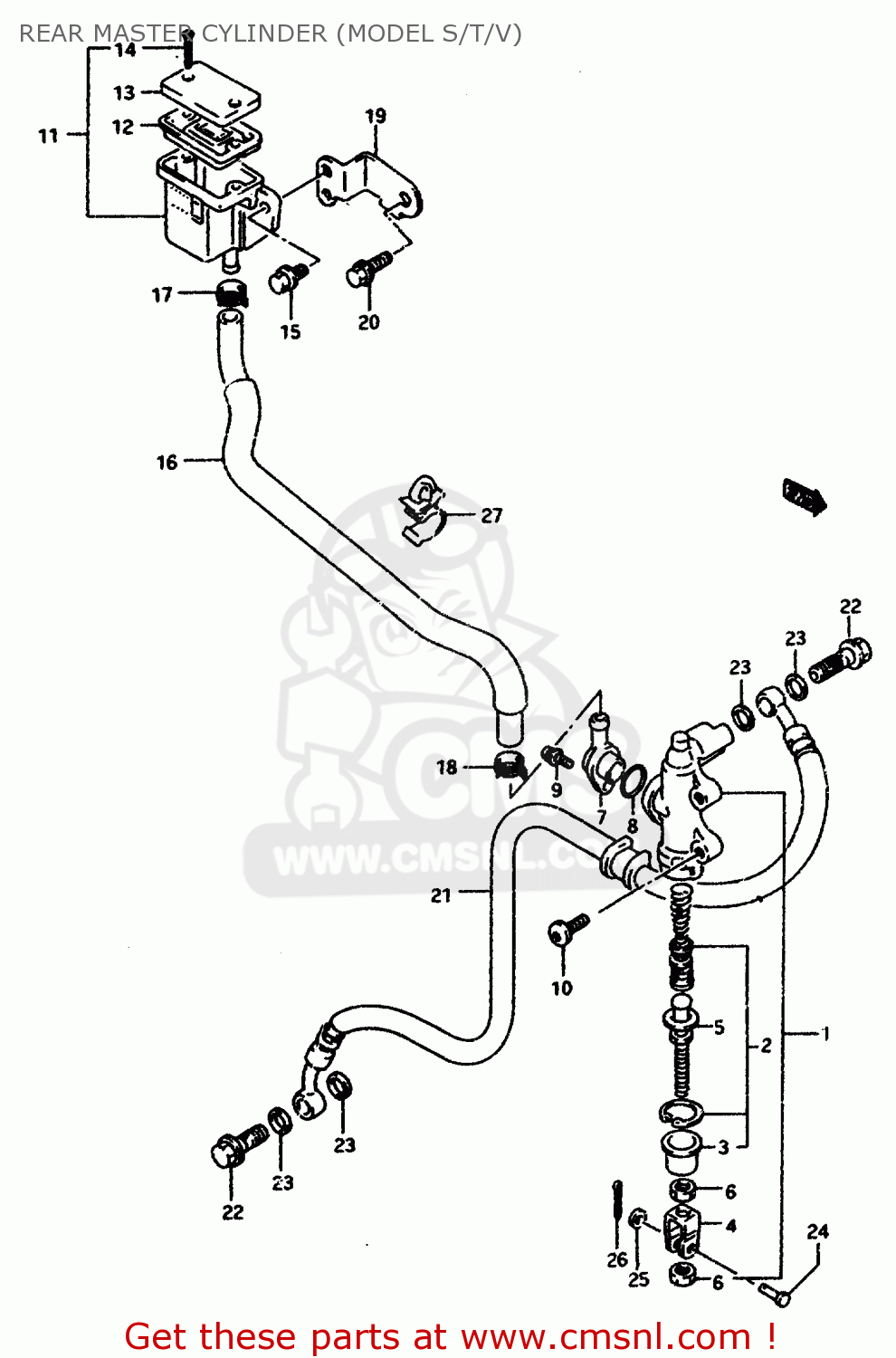

Rear master cylinder (model s/t/v) diagram GSXR1100WSK 1996 (T) BRAZIL (E37)

REAR MASTER CYLINDER (MODEL S/T/V) GSXR1100WSK 1996 (T) BRAZIL (E37)
REAR MASTER CYLINDER (MODEL S/T/V) GSXR1100WSK 1996 (T) BRAZIL (E37)
REAR MASTER CYLINDER (MODEL S/T/V) GSXR1100WSK 1996 (T) BRAZIL (E37)
prices are in EUR
ref
part #
description
quantity
1
6960017E00
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 151.00
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969227A30
ref: 4
YOKE
6969227A30
€ 12.50
5
6967017E00
ref: 5
ROD,PUSH
6967017E00
€ 25.00
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
6967205A00
€ 4.50
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
0211274123
ref: 9
SCREW
€ 2.50
10
0910608118
ref: 10
BOLT 8X20
€ 4.00
11
6974024A01
ref: 11
TANK ASSY,RESERVOIR
6974024A01
€ 99.50
12
5966704700
ref: 12
DIAPHRAGM
5966704700
€ 8.00
13
5966905D00
ref: 13
CAP
5966905D00
€ 13.50
14
6968904A00
ref: 14
SCREW
6968904A00
€ 2.00
15
0155006163
ref: 15
BOLT
0155006163
€ 2.50
16
6973117E00
ref: 16
HOSE,RESERVOIR TANK
6973117E00
€ 29.00
17
0940113413
ref: 17
CLIP
€ 2.50
18
0940113413
ref: 18
CLIP
€ 2.50
19
6975046E00
ref: 19
PLATE,RESERVOIR TANK
€ 8.50
20
0155006163
ref: 20
BOLT
0155006163
€ 2.50
21
6948046E10
ref: 21
HOSE,RR BRAKE
€ 60.00
22
0936010039
ref: 22
BOLT UNION
€ 6.50
23
0916110009
ref: 23
WASHER(10X15X1.5)
0916110009
€ 2.00
24
0920006037
ref: 24
PIN
0920006037
€ 5.00
25
0832201063
ref: 25
WASHER
0832201063
€ 2.00
26
0411120158
ref: 26
PIN
0411120158
€ 1.50
27
0940316307
ref: 27
CLAMP
0940316307
€ 2.00
25-1
0832221067
ref: 25-1
MODEL P
WASHER
0832221067
€ 2.00
25-2
0832201063
ref: 25-2
MODEL R
WASHER
0832201063
€ 2.00
26
0411120158
ref: 26
PIN
0411120158
€ 1.50
27
0940316307
ref: 27
CLAMP
0940316307
€ 2.00
28-1
0832121088
ref: 28-1
MODEL P
LOCK WASHER
0832121088
€ 2.00
28-2
0832101083
ref: 28-2
MODEL R
LOCK WASHER
0832101083
€ 2.50
