CRANKCASE
GSXR600 1998 (W) USA (E03)

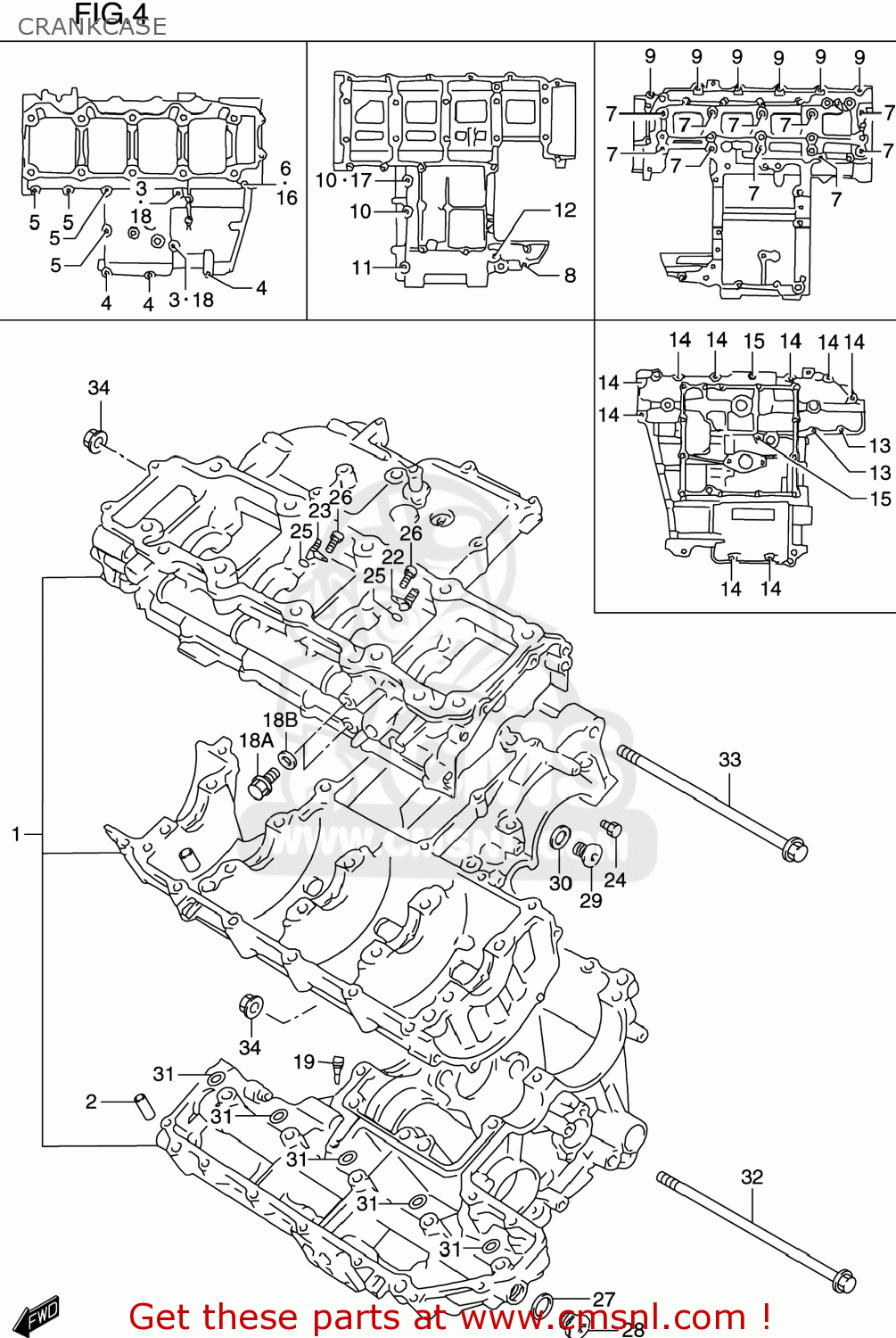

Crankcase diagram GSXR600 1998 (W) USA (E03)
CRANKCASE GSXR600 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130134840
ref: 1-1
CRANKCASE SET
€ 1,990.50
1-1
1130134840
ref: 1-1
CRANKCASE SET
€ 1,990.50
1-2
1130134850
ref: 1-2
11301-33861
CRANKCASE SET
€ 1,990.50
1-2
1130134850
ref: 1-2
11301-33861
CRANKCASE SET
€ 1,990.50
1-3
1130134841
ref: 1-3
11301-33852
CRANKCASE SET
€ 1,990.50
1-3
1130134841
ref: 1-3
11301-33852
CRANKCASE SET
€ 1,990.50
1-4
1130134851
ref: 1-4
11301-33861
CRANKCASE SET
€ 1,990.50
1-4
1130134851
ref: 1-4
11301-33861
CRANKCASE SET
€ 1,990.50
1-5
1130133850
ref: 1-5
11301-33852
CRANKCASE SET
€ 1,990.50
1-6
1130133851
ref: 1-6
11301-33852
CRANKCASE SET
€ 1,990.50
1-7
1130133860
ref: 1-7
11301-33861
CRANKCASE SET
€ 1,990.50
1-8
1130133852
ref: 1-8
CRANKCASE SET
€ 1,990.50
1-9
1130133861
ref: 1-9
CRANKCASE SET
€ 1,990.50
2-1
1131933E00
ref: 2-1
PIN,CRANKCASE
€ 4.00
2-2
1131933E50
ref: 2-2
PIN,CRANKCASE
€ 4.00
3
0910608139
ref: 3
BOLT(8X120)
€ 10.00
4
0154706353
ref: 4
01547-0635B
BOLT
€ 3.00
5
0154706403
ref: 5
01547-0640B
BOLT
€ 3.00
6
0154706803
ref: 6
01547-0680B
BOLT
€ 3.50
7
0910309012
ref: 7
BOLT(9X95)
€ 7.00
8
0154706453
ref: 8
01547-0645B
BOLT
€ 3.00
9
0154706503
ref: 9
01547-0650B
BOLT
€ 3.50
10
0712008603
ref: 10
07120-0860B
BOLT
€ 4.50
11-1
0713008553
ref: 11-1
07130-0855B
BOLT
€ 3.50
11-2
0712008603
ref: 11-2
07120-0860B
BOLT
€ 4.50
12
0713008803
ref: 12
07130-0880B
BOLT
€ 3.00
13
0154706303
ref: 13
01547-0630B
BOLT,G/S SWITC
€ 3.00
14
0154706403
ref: 14
01547-0640B
BOLT
€ 3.00
15
0154706903
ref: 15
01547-0690B
BOLT
€ 3.00
16-1
0916806024
ref: 16-1
GASKET(5.8X11X1.2) (NAS)
€ 2.00
16-2
0916806023
ref: 16-2
GASKET(5.8X13X1.2) (NAS)
€ 2.00
17
0916808016
ref: 17
GASKET(8.2X14X1) (NAS)
€ 1.00
18
0916808016
ref: 18
GASKET(8.2X14X1) (NAS)
€ 1.00
18A
0155006123
ref: 18A
01550-0612A
BOLT
€ 2.50
18B
0916806023
ref: 18B
GASKET(5.8X13X1.2) (NAS)
€ 2.00
18B
0916806023
ref: 18B
GASKET(5.8X13X1.2) (NAS)
€ 2.00
19
0949328012
ref: 19
JET(140)
€ 8.00
20
1222817E000D0
ref: 20
BEARING,CRANK THRUST(GREEN)
€ 8.00
20
1222817E000D0
ref: 20
BEARING,CRANK THRUST(GREEN)
€ 8.00
21-1
1222817E000A0
ref: 21-1
BEARING,CRANK THRUST(RED)
€ 7.50
21-1
1222817E000A0
ref: 21-1
BEARING,CRANK THRUST(RED)
€ 7.50
21-2
1222817E000B0
ref: 21-2
BEARING,CRANK THRUST(BLACK)
€ 7.50
21-3
1222817E000C0
ref: 21-3
BEARING,CRANK THRUST(BLUE)
€ 7.50
21-4
1222817E000D0
ref: 21-4
BEARING,CRANK THRUST(GREEN)
€ 8.00
21-5
1222817E000E0
ref: 21-5
BEARING,CRANK THRUST(YELLOW)
€ 7.50
21-6
1222817E000F0
ref: 21-6
BEARING,CRANK THRUST(WHITE)
€ 7.50
22
1139034E00
ref: 22
JET,PISTON COOLINGR
€ 13.50
23
1139034E10
ref: 23
JET,PISTON COOLING
€ 13.50
24
1139333E01
ref: 24
JET,MAGNETO COOLING
€ 14.00
25
0928004004
ref: 25
O RING(D:1.2,ID:4)
€ 2.00
25
0928004004
ref: 25
O RING(D:1.2,ID:4)
€ 2.00
26
0910606075
ref: 26
BOLT(6X12)
€ 2.50
27
0916816002
ref: 27
GASKET(16X22X2) (NAS)
€ 2.00
28
0924816012
ref: 28
PLUG,16X8
€ 4.50
29
0924814005
ref: 29
PLUG,14X12
€ 5.00
30
0916814002
ref: 30
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
31
0928008012
ref: 31
O RING(D:1.9,ID:7.8)
€ 4.00
31
0928008012
ref: 31
O RING(D:1.9,ID:7.8)
€ 4.00
32
0910310145
ref: 32
BOLT(10X205)
€ 13.00
33
0910310219
ref: 33
BOLT(10X185)
€ 16.50
34
0915910058
ref: 34
09159-10115
NUT
€ 4.00
