FOOTREST
GSXR600 1998 (W) USA (E03)

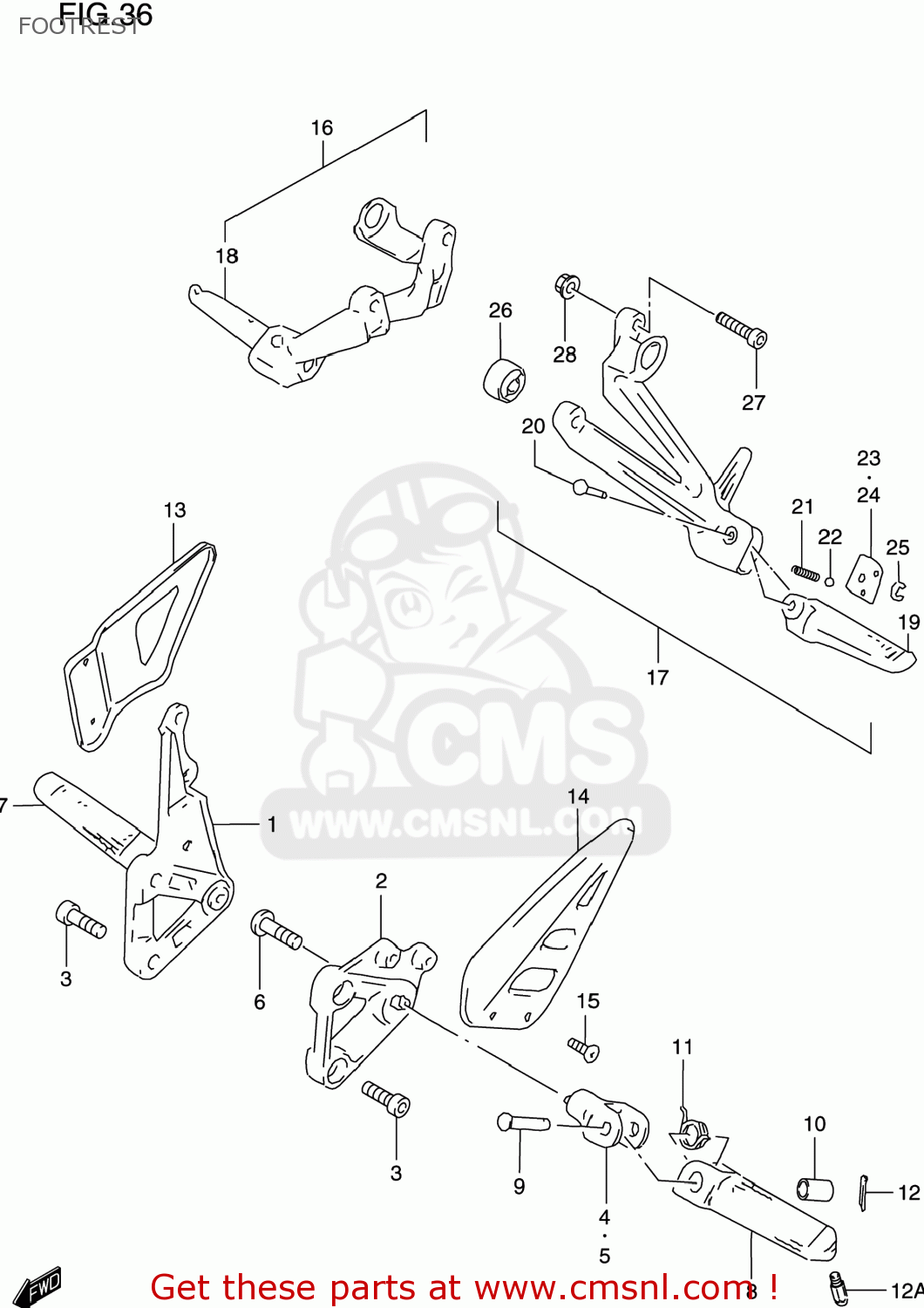

Footrest diagram GSXR600 1998 (W) USA (E03)
FOOTREST GSXR600 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351133E10
ref: 1
BRACKET,FR FOOTREST,R
€ 85.00
2
4352133E00
ref: 2
BRACKET,FR FOOTREST,L
€ 66.00
3
0713008203
ref: 3
07130-0820B
BOLT
€ 3.00
4-1
4353017E00
ref: 4-1
43530-17E01
HOLDER,FOOTREST,RIGHT
€ 33.00
4-2
4353017E01
ref: 4-2
HOLDER,FOOTREST,R
€ 33.00
5
4354017E00
ref: 5
HOLDER,FOOTREST,L
€ 33.00
6
0910610064
ref: 6
BOLT(10X28)
€ 4.50
7-1
4358133E00
ref: 7-1
43531-33D01
BAR,FOOTREST,RIGHT
€ 37.00
7-2
4353133D00
ref: 7-2
43531-33D01
BAR,FRONT FOOTREST,RIGHT
€ 37.00
7-3
4353133D01
ref: 7-3
BAR,FOOTREST,R
€ 37.00
8-1
4359133E00
ref: 8-1
43591-02F01
BAR,FOOTREST,LEFT
€ 44.50
8-2
4359102F00
ref: 8-2
43591-02F01
BAR,FRONT FOOTREST,LEFT
€ 44.50
8-3
4359102F01
ref: 8-3
BAR,FOOTREST,L
€ 44.50
9
0920008057
ref: 9
PIN
€ 3.00
10
0918008149
ref: 10
SPACER(8.1X12X22)
€ 7.00
11
0944818022
ref: 11
SPRING
€ 3.50
12
0411125158
ref: 12
04111-2515A
PIN 20X15
€ 1.50
12A
4357607D01
ref: 12A
BOLT,BANK SENSOR
€ 8.00
13-1
4357133E00
ref: 13-1
43571-33E01
GUARD,FRONT FOOTREST,RIGHT
€ 34.50
13-2
4357133E01
ref: 13-2
GUARD,FR FOOTREST,R
€ 34.50
14-1
4357633E00
ref: 14-1
43576-33E01
GUARD,FRONT FOOTREST,LEFT
€ 50.00
14-2
4357633E01
ref: 14-2
GUARD,FR FOOTREST,L
€ 50.00
15
0913905033
ref: 15
SCREW(5X10)
€ 2.00
16
4360033E00
ref: 16
FOOTREST ASSY,PILLION,R
€ 111.50
17
4370033E00
ref: 17
FOOTREST ASSY,PILLION,L
€ 162.00
18-1
4361133E00
ref: 18-1
43611-33E11
BAR,PILLION FOOTREST,RIGHT
€ 23.50
18-2
4361133E10
ref: 18-2
43611-33E11
BAR,PILLION FOOTREST,RIGHT
€ 23.50
19-1
4362133E00
ref: 19-1
43621-33E11
BAR,PILLION FOOTREST,LEFT
€ 23.50
19-2
4362133E10
ref: 19-2
43621-33E11
BAR,PILLION FOOTREST,LEFT
€ 23.50
20
8725985510
ref: 20
PIN
€ 4.50
21
0944005005
ref: 21
SPRING
€ 1.50
22
0611107004
ref: 22
BALL
€ 1.50
23-1
4381623E10
ref: 23-1
PLATE,PILLION FOOT,R
€ 4.50
23-2
4381633E20
ref: 23-2
43816-33E21
PLATE,PILLION,RIGHT
€ 15.00
23-3
4381633E21
ref: 23-3
PLATE,PILLION FOOT,R
€ 15.00
24-1
4382623E10
ref: 24-1
PLATE,PILLION FOOT,L
€ 4.50
24-2
4382633E20
ref: 24-2
43826-33E22
PLATE,PILLION,LEFT
€ 15.00
24-3
4382633E21
ref: 24-3
43826-33E22
PLATE,PILLION FOOT,LEFT
€ 15.00
25
0833211043
ref: 25
08332-1104A
E-RING
€ 2.00
26
0931908028
ref: 26
BUSH
€ 17.00
27
0713008303
ref: 27
07130-0830A
BOLT
€ 3.00
28
0831931083
ref: 28
08319-3108A
NUT
€ 2.50
