RADIATOR HOSE
GSXR600 1998 (W) USA (E03)

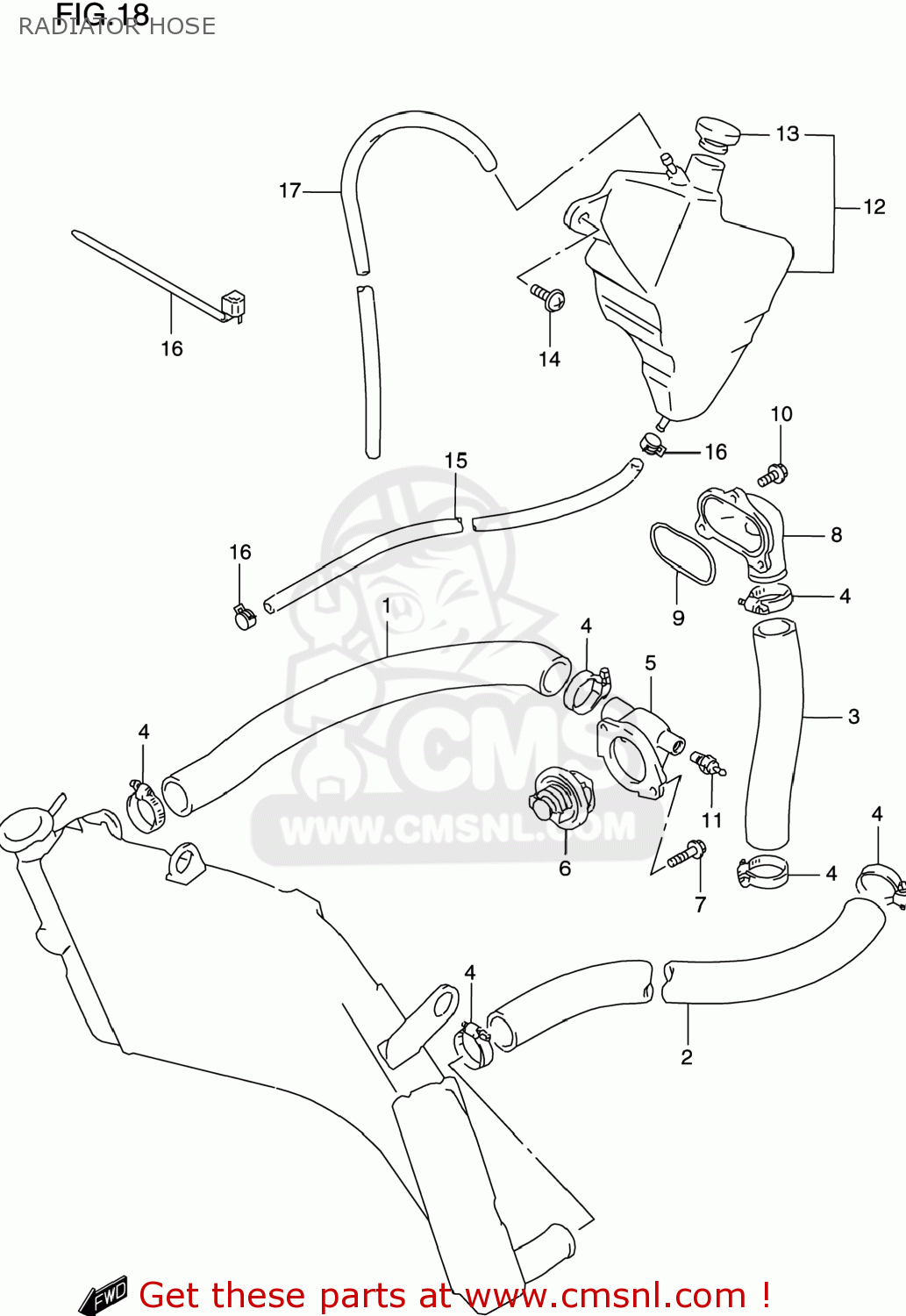

Radiator hose diagram GSXR600 1998 (W) USA (E03)
RADIATOR HOSE GSXR600 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1785133E00
ref: 1
HOSE,RADIATOR INLET
€ 30.00
2
1785233E00
ref: 2
HOSE,RADIATOR OUTLET
€ 32.50
3
1785333E00
ref: 3
HOSE,CYLINDER INLET
€ 18.00
4
0940238511
ref: 4
CLAMP
€ 10.50
5
1766233E00
ref: 5
CONNECTOR,THERMOSTAT INLET
€ 30.50
6-1
1767032C01
ref: 6-1
THERMOSTAT,WATER
€ 41.00
6-2
1767032C10
ref: 6-2
THERMOSTAT,WATER
€ 41.00
7
0712006203
ref: 7
07120-0620B
BOLT
€ 3.50
8
1786133E00
ref: 8
17861-33E20
CONNECTOR,CYLINDER WATER,INTAKE
€ 19.00
9
1786333E00
ref: 9
O RING,CYL WATER CONNECTOR
€ 4.50
10
0155006203
ref: 10
01550-0620A
BOLT
€ 2.50
11
3485033E00
ref: 11
GAUGE ASSY,WATER TEMP
€ 56.50
12
1791033E00
ref: 12
TANK ASSY,RESERVOIR
€ 112.50
13
1793212C00
ref: 13
CAP,RESERVOIR TANK
€ 3.50
14
0913606022
ref: 14
SCREW(6X20)
€ 2.50
15
1798112C00
ref: 15
17900-41810
HOSE,RESERVOIR TANK INLET
€ 27.00
16
0940108411
ref: 16
CLIP
€ 3.00
17
1798238810
ref: 17
HOSE,RESERVOIR TANK OUTLET
€ 16.00
18-1
0940718403
ref: 18-1
09407-18402
CLAMP L:165
€ 2.50
18-2
0940718402
ref: 18-2
CLAMP(L:165)
€ 2.50
