REAR SWINGING ARM
GSXR600 1998 (W) USA (E03)

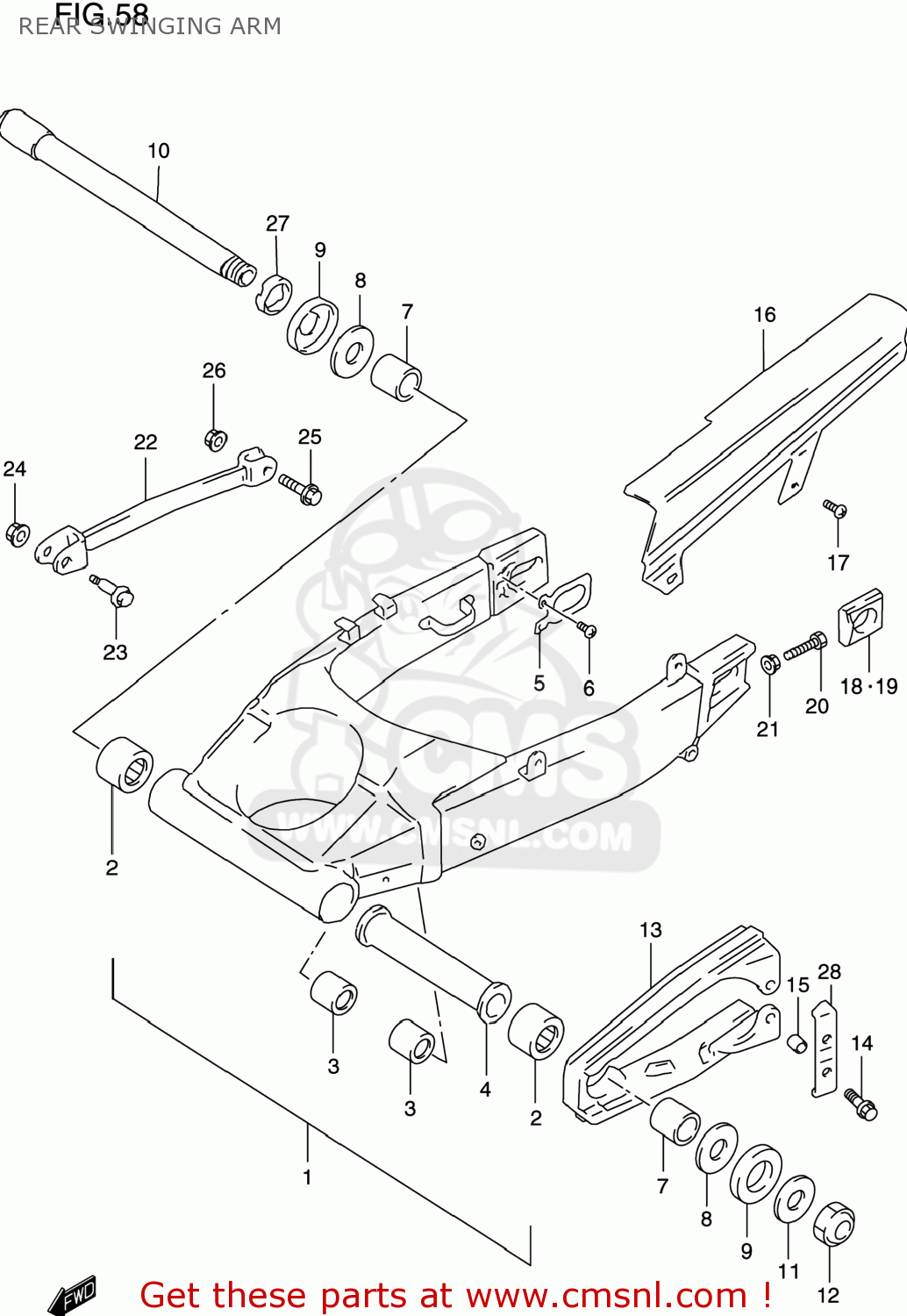

Rear swinging arm diagram GSXR600 1998 (W) USA (E03)
REAR SWINGING ARM GSXR600 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100034E00
ref: 1
SWINGINGARM ASSY,RR
€ 1,529.00
2
0926330040
ref: 2
BEARING(30X40X25)
€ 31.50
3
0926317039
ref: 3
BEARING(17X24X20)
€ 18.00
4
6128133E10
ref: 4
61281-33E20
SPACER,REAR SWING PIVOT,CENTER
€ 26.00
5
6112433E00
ref: 5
PLATE,RR SWING ARM BRKT
€ 3.50
6
0214206163
ref: 6
02142-0616A
SCREW
€ 2.50
7
6125117E10
ref: 7
SPACER,REAR SWING ARM PIVOT
€ 7.00
8
0821125481
ref: 8
WASHER
€ 5.50
9
6126217E10
ref: 9
DUST SEAL,RR SWGARM PIVOT
€ 6.50
10
6121133E00
ref: 10
SHAFT,RR SWINGINGARM PIVOT
€ 100.00
11
0916025070
ref: 11
WASHER(25.2X42X3.2)
€ 4.50
12
0915925001
ref: 12
09159-25003
NUT
€ 29.00
13
6127334E01
ref: 13
BUFFER,CHAIN TOUCH DEFENSE
€ 32.50
14
0911606152
ref: 14
BOLT(6X20)
€ 2.00
15
0918006306
ref: 15
SPACER(6.5X9X5)
€ 2.00
16
6131034E00
ref: 16
CASE,CHAIN
€ 44.00
17
0913906083
ref: 17
SCREW(6X16)
€ 2.50
18
6144533E00
ref: 18
ADJUSTER,CHAIN,R
€ 42.00
19
6144633E10
ref: 19
ADJUSTER,CHAIN,L
€ 42.50
20
0910008287
ref: 20
BOLT(8X50)
€ 3.00
21
0831610083
ref: 21
08316-1008B
NUT
€ 3.00
22
6431033E00
ref: 22
TORQUELINK,RR
€ 82.00
23
0911108083
ref: 23
BOLT(8X44)
€ 6.00
24
0831931087
ref: 24
NUT
€ 2.50
25
0910310019
ref: 25
BOLT(10X37)
€ 2.50
26
0831931107
ref: 26
NUT
€ 3.00
27
6121440C31
ref: 27
NUT,RR SWGARM PIVOT BOLT
€ 16.50
28
6127934E00
ref: 28
PLATE,CHAIN BUFFER
€ 6.50
