FRONT DAMPER (MODEL W/X/Y)
GSXR600 1998 (W) USA (E03)

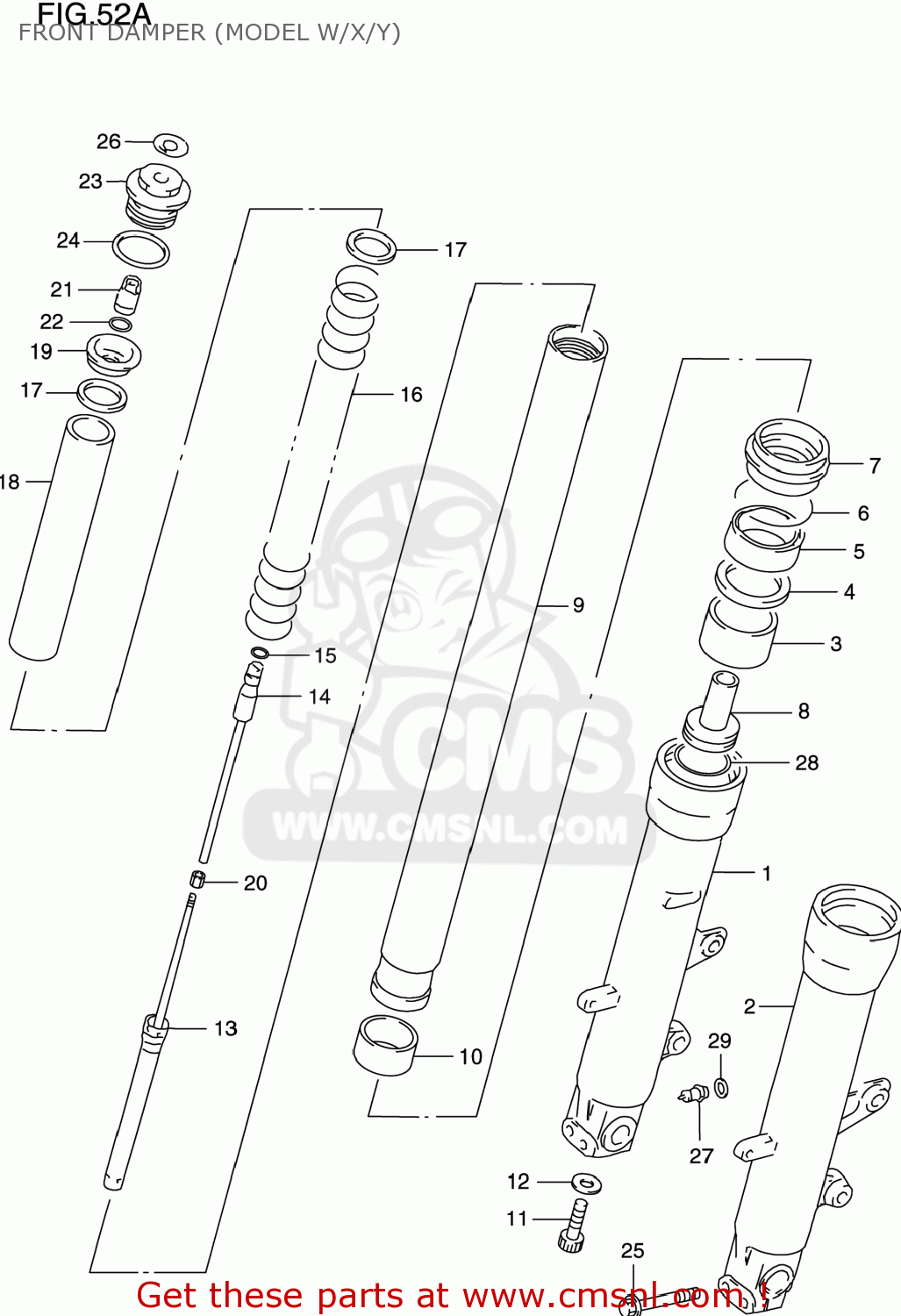

Front damper (model w/x/y) diagram GSXR600 1998 (W) USA (E03)
FRONT DAMPER (MODEL W/X/Y) GSXR600 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110334E20
ref:
DAMPER ASSY,FR FORK,R
€ 1,208.50
5110434E20
ref:
DAMPER ASSY,FR FORK,L
€ 1,208.50
1
5113034E20
ref: 1
TUBE,OUTER,R
€ 491.50
2
5114034E20
ref: 2
TUBE,OUTER,L
€ 479.50
3
5115234E00
ref: 3
BUSH,GUIDE
€ 22.00
4
5115827C40
ref: 4
SPACER,SEAL
€ 6.00
5
5115334E00
ref: 5
SEAL,OIL
€ 16.50
6
5115627C40
ref: 6
RING,OIL SEAL STOPPER
€ 3.50
7
5117328E40
ref: 7
SEAL,DUST
€ 22.00
8
5119534E20
ref: 8
PIECE,OIL LOCK
€ 41.50
9
5111034E20
ref: 9
TUBE,INNER
€ 529.00
10
5112134E00
ref: 10
BUSH,SLIDE
€ 24.00
11
5114717C00
ref: 11
BOLT
€ 21.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13
5211034E20
ref: 13
ROD,FRONT DAMPER
€ 367.00
14
5211134E00
ref: 14
ROD,ADJUST
€ 24.50
15
0928003002
ref: 15
O RING(D:1.9,ID:3.8)
€ 2.00
16
5117134E20
ref: 16
SPRING,FR
€ 62.00
17
5117229EA0
ref: 17
JOINT,SPRING
€ 7.00
18
5117634E00
ref: 18
COLLAR,SPRING
€ 10.50
19
5117217C00
ref: 19
SEAT,SPRING UPR
€ 11.50
20
5182727E00
ref: 20
NUT
€ 6.50
21
5118534E00
ref: 21
ADJUSTER,SPRING
€ 49.00
22
0928014011
ref: 22
O RING(D:2.5,ID:13.8)
€ 3.50
23
5118934E00
ref: 23
BOLT,FORK
€ 62.00
24
5111729EA0
ref: 24
O RING
€ 5.50
25
0155008457
ref: 25
BOLT
€ 4.00
26
5114934E00
ref: 26
LABEL
€ 4.50
27
5183033E00
ref: 27
PIECE,ADJUST
€ 73.50
28
5111734E20
ref: 28
O RING
€ 3.50
29
5116942E00
ref: 29
LABEL,ADJUST PIECE LWR
€ 4.00
