REAR CUSHION LEVER
GSXR600 1998 (W) USA (E03)

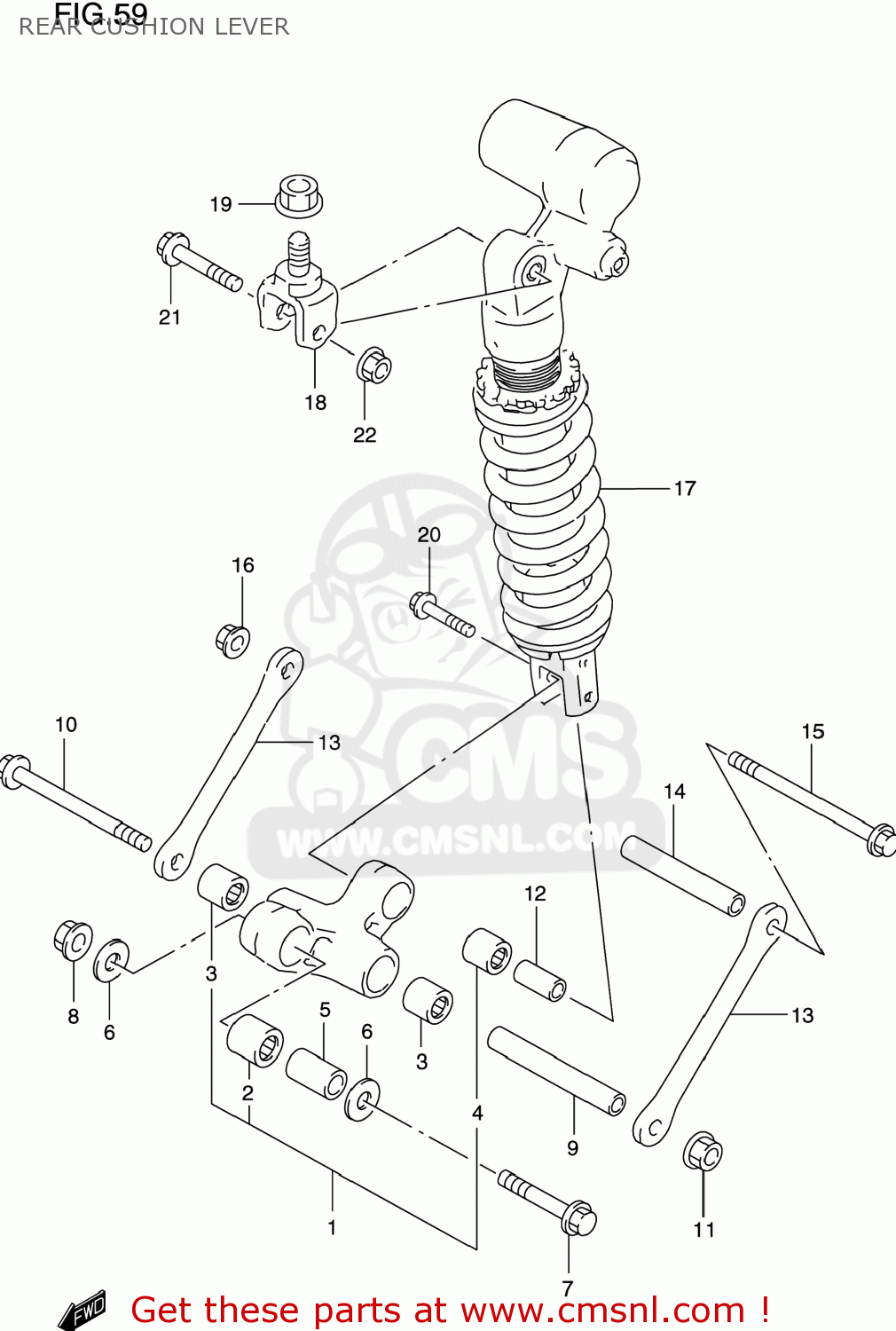

Rear cushion lever diagram GSXR600 1998 (W) USA (E03)
REAR CUSHION LEVER GSXR600 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260034820
ref: 1
LEVER SET,RR CUSHION
€ 343.50
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926317039
ref: 3
BEARING(17X24X20)
€ 18.00
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
6268412C00
ref: 5
SPACER,RR CUSHION LEVER FR
€ 12.50
6
0821112301
ref: 6
WASHER
€ 2.00
7
6265833E00
ref: 7
BOLT,RR CUSHION LEVER FR
€ 19.50
8
0831931128
ref: 8
08319-3112A
NUT 12MM
€ 4.00
9
6262633D00
ref: 9
SPACER,RR CUSHION LEVER CTR
€ 17.50
10
6262133D00
ref: 10
BOLT,RR CUSHION LEVER CTR
€ 10.00
11
0831931128
ref: 11
08319-3112A
NUT 12MM
€ 4.00
12
6268440A10
ref: 12
SPACER,RR CUSHION LEVER
€ 11.50
13
6264133E00
ref: 13
ROD,RR CUSHION LEVER
€ 41.50
14
6262633D00
ref: 14
SPACER,RR CUSHION LEVER CTR
€ 17.50
15
6262133D00
ref: 15
BOLT,RR CUSHION LEVER CTR
€ 10.00
16
0831931128
ref: 16
08319-3112A
NUT 12MM
€ 4.00
17-1
6210034E10
ref: 17-1
ABSORBER ASSEMBLY,REAR SHOCK
€ 0.00
17-2
6210034E20
ref: 17-2
62100-34E21
ABSORBER ASSEMBLY,REAR SHOCK
€ 836.00
18
6299333E11
ref: 18
BRACKET,RR SHOCK ABSORBER UP
€ 86.50
19
0915920006
ref: 19
NUT
€ 19.00
20
0910310049
ref: 20
BOLT(10X44)
€ 5.50
21
0910310101
ref: 21
BOLT(10X54)
€ 3.00
22
0831931107
ref: 22
NUT
€ 3.00
