HEADLAMP

GSXR600 1998 (W) USA (E03)

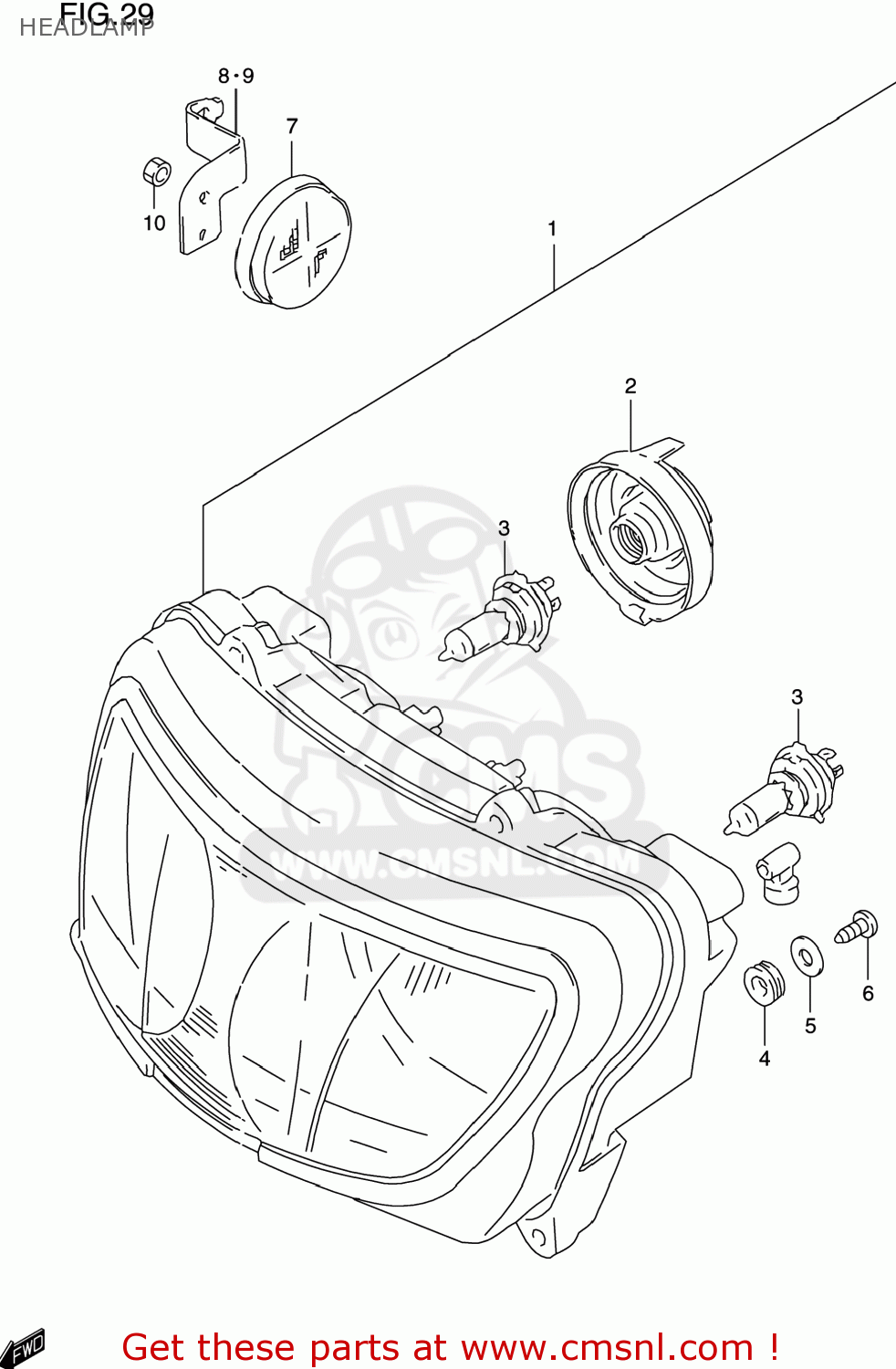

Headlamp diagram GSXR600 1998 (W) USA (E03)

HEADLAMP GSXR600 1998 (W) USA (E03)

HEADLAMP GSXR600 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510033E02999
ref: 1

HEADLAMP ASSY

€ 350.00

2

3512574F00
ref: 2

COVER,SOCKET

€ 11.50

3

0947112163
ref: 3

BULB(12V55/50W)

€ 22.00

4

3513733E00
ref: 4

CUSHION,HEADLAMP

€ 3.00

5-1

0916005003
ref: 5-1
09160-05045

WASHER (5.5X18X1)

€ 2.00

5-2

0916005045
ref: 5-2

WASHER(5.5X18X1)

€ 2.00

6

0351105163
ref: 6
03511-0516A

SCREW,SIDE HOL

€ 2.50

7

3595014A00
ref: 7

REFLECTOR,REFLEX FR

€ 15.00

8

3595617D00
ref: 8

BRACKET,FR SIDE RR,R

€ 6.50

9

3595717D00
ref: 9

BRACKET,FR SIDE RR,L

€ 6.50

10

0831000053
ref: 10
08310-0005A

NUT

€ 2.50
