CYLINDER HEAD
GSXR600 2006 (K6) USA (E03)

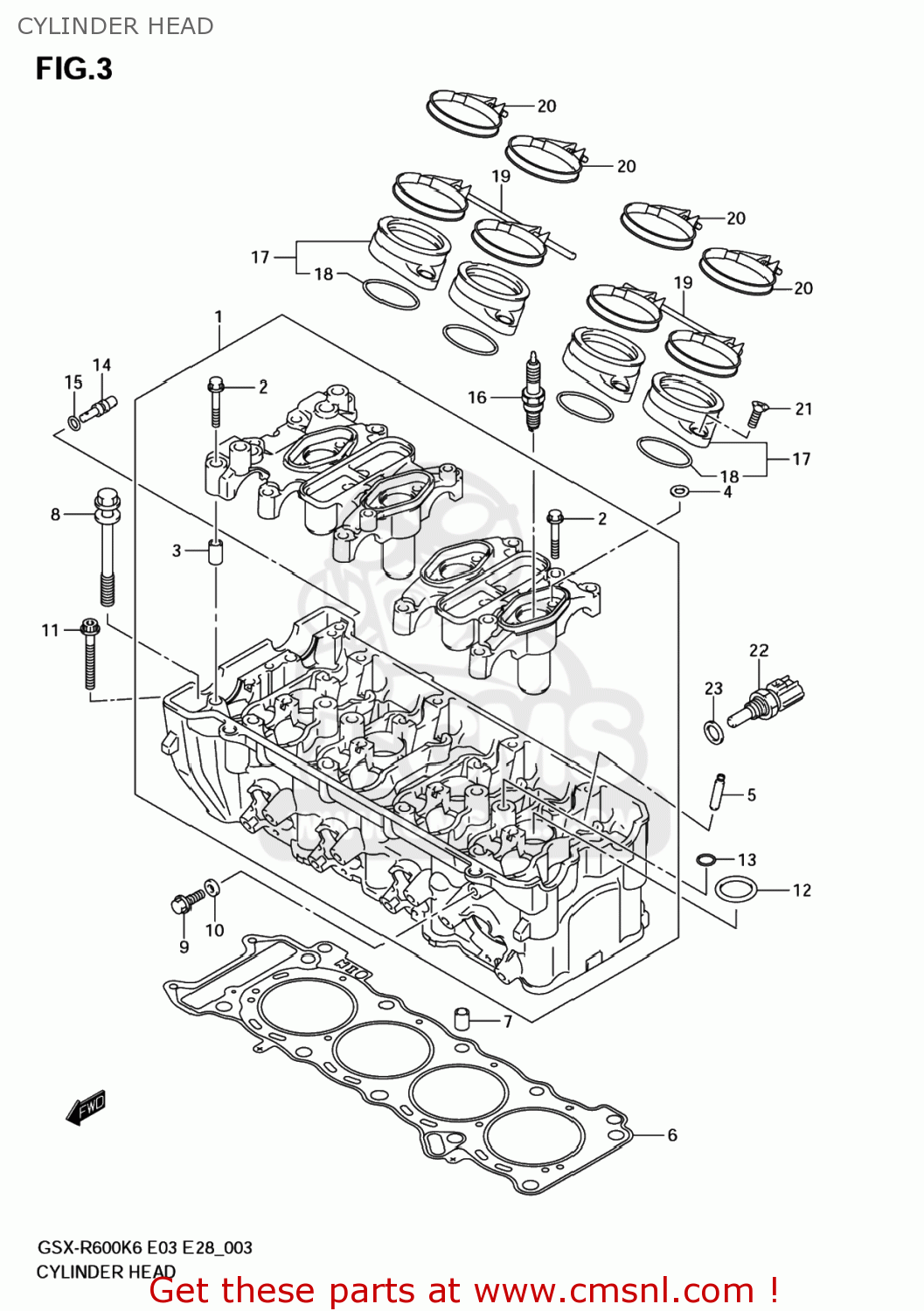

Cylinder head diagram GSXR600 2006 (K6) USA (E03)
CYLINDER HEAD GSXR600 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110001H00
ref: 1
HEAD ASSY,CYLINDER
€ 2,617.00
2
0910306266
ref: 2
BOLT(6X40)
€ 2.50
3
0920608007
ref: 3
PIN(6.2X8X16)
€ 2.50
4
0916806018
ref: 4
GASKET(6.2X13X1.2) (NAS)
€ 2.00
5
1111529G70
ref: 5
GUIDE,VALVE(OS:0.3)
€ 18.50
6
1114101H00
ref: 6
GASKET,CYLINDER HEAD (NAS)
€ 72.50
7
0421111169
ref: 7
PIN
€ 2.00
8
1111729G00
ref: 8
BOLT,CYLINDER HEAD
€ 7.50
9
0910306222
ref: 9
BOLT(6X12)
€ 2.00
10
0916806023
ref: 10
GASKET(5.8X13X1.2) (NAS)
€ 2.00
11
071200650A
ref: 11
BOLT
€ 2.50
12
1117981402
ref: 12
O-RING
€ 8.50
13
0928011001
ref: 13
O RING(D:2.4,ID:10.8)
€ 4.50
14
0949380005
ref: 14
JET(8)
€ 12.00
15
0928004004
ref: 15
O RING(D:1.2,ID:4)
€ 2.00
16-1
0948200458
ref: 16-1
PLUG,SPARK(NGK CR9E)
€ 8.50
16-2
0948200459
ref: 16-2
PLUG,SPARK(U27ESR-N)
€ 8.50
16-3
0948200456
ref: 16-3
PLUG,SPARK(CR8E)
€ 7.00
16-4
0948200460
ref: 16-4
PLUG,SPARK(CR10E)
€ 8.50
16-5
0948200457
ref: 16-5
PLUG,SPARK(U24ESR-N)
€ 7.00
16-6
0948200461
ref: 16-6
PLUG,SPARK(U31ESR-N)
€ 8.50
17
1310101H00
ref: 17
PIPE ASSY,INTAKE
€ 51.00
18
0928042003
ref: 18
O RING(D:2.4,ID:41.7)
€ 8.50
19
1317001H00E00
ref: 19
13170-01H00
CLAMP COMP,INT
€ 27.00
20
0940256208
ref: 20
09402-56901
CLAMP
€ 3.50
21
0912006007A05
ref: 21
09120-06007
SCREW (86X15.4
€ 2.50
22
1365010G00
ref: 22
SENSOR,WATER TEMP
€ 64.50
23
0916812017
ref: 23
GASKET(12X17X1) (NAS)
€ 2.00
