FRONT BRAKE HOSE

GSXR600 2006 (K6) USA (E03)

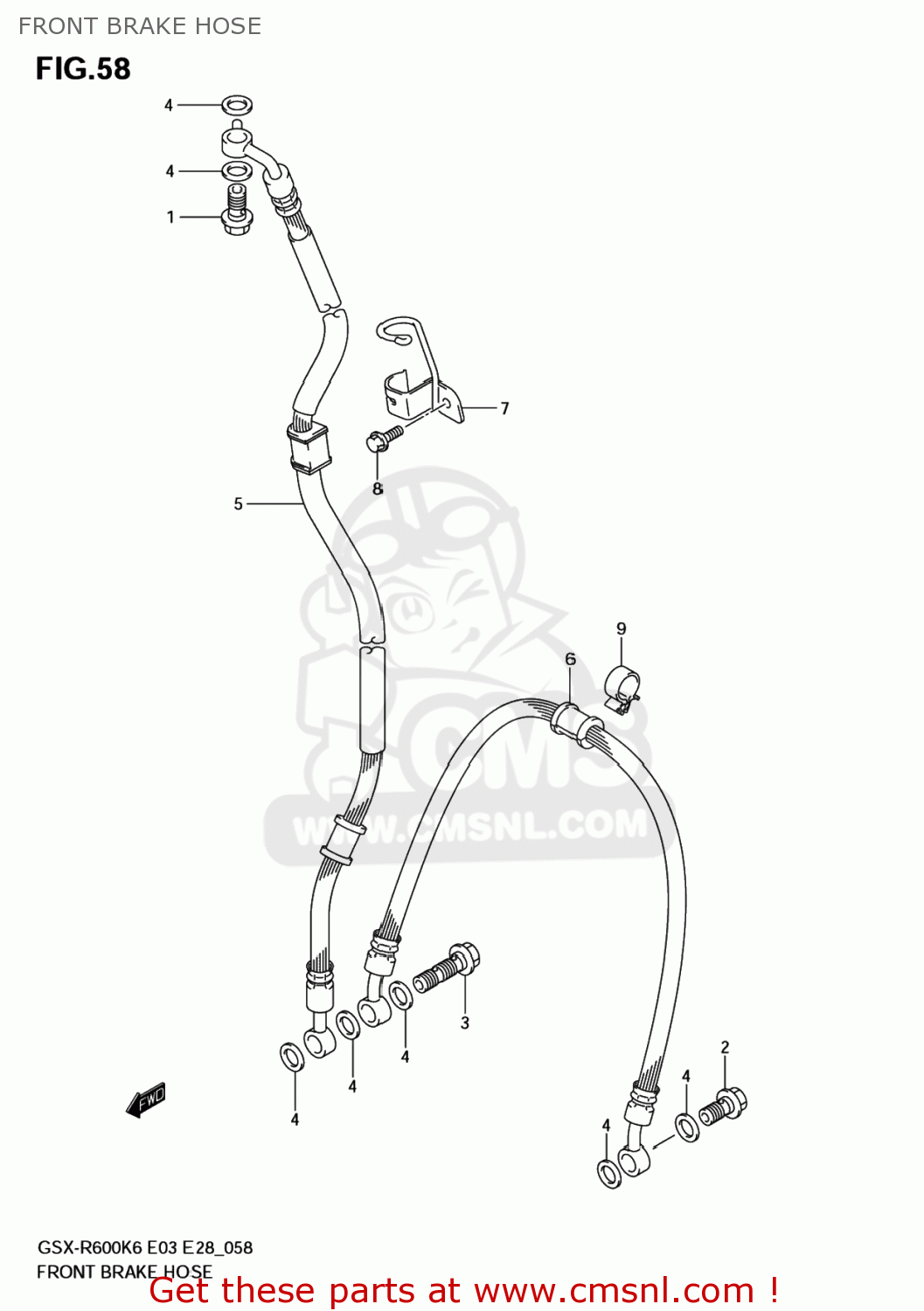

Front brake hose diagram GSXR600 2006 (K6) USA (E03)

FRONT BRAKE HOSE GSXR600 2006 (K6) USA (E03)

FRONT BRAKE HOSE GSXR600 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

0936010040A08
ref: 1
09360-10062

BOLT (10X22)

€ 5.00

2

0936010040A08
ref: 2
09360-10062

BOLT (10X22)

€ 5.00

3

0936010038A08
ref: 3

BOLT (10X36)

€ 5.00

4

0916110009
ref: 4

WASHER(10X15X1.5)

€ 2.00

5

5948001H00
ref: 5

HOSE,FR BRAKE NO.1

€ 102.00

6

5924001H00
ref: 6

HOSE,FR BRAKE NO.2

€ 164.00

7

5926041G00A05
ref: 7
59260-41G00

CLAMP, BRAKE HOSE NO.1

€ 17.00

8

015470612A
ref: 8

BOLT

€ 2.00

9

0940316412
ref: 9

CLAMP

€ 4.00
