FRONT FENDER

GSXR600 2006 (K6) USA (E03)

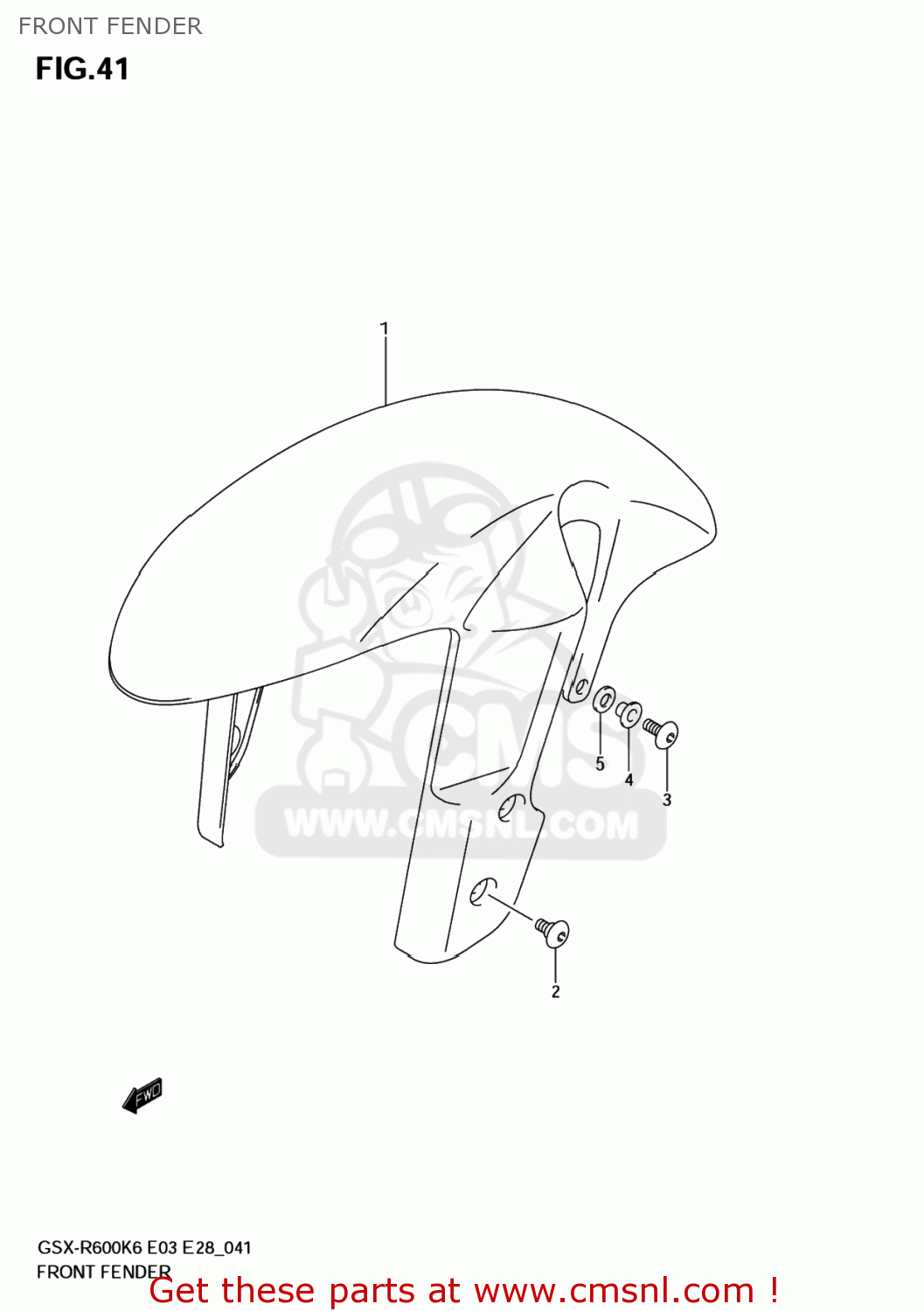

Front fender diagram GSXR600 2006 (K6) USA (E03)

FRONT FENDER GSXR600 2006 (K6) USA (E03)

FRONT FENDER GSXR600 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5311041G00019
ref: 1

FENDER,FR

€ 217.50

2

0913906144
ref: 2

SCREW(6X12)

€ 3.00

3

0913906030
ref: 3

SCREW(6X16)

€ 3.50

4

0916906063
ref: 4

WASHER

€ 3.50

5

5312133E00
ref: 5

WASHER,FR FENDER FR NO.2

€ 3.00
