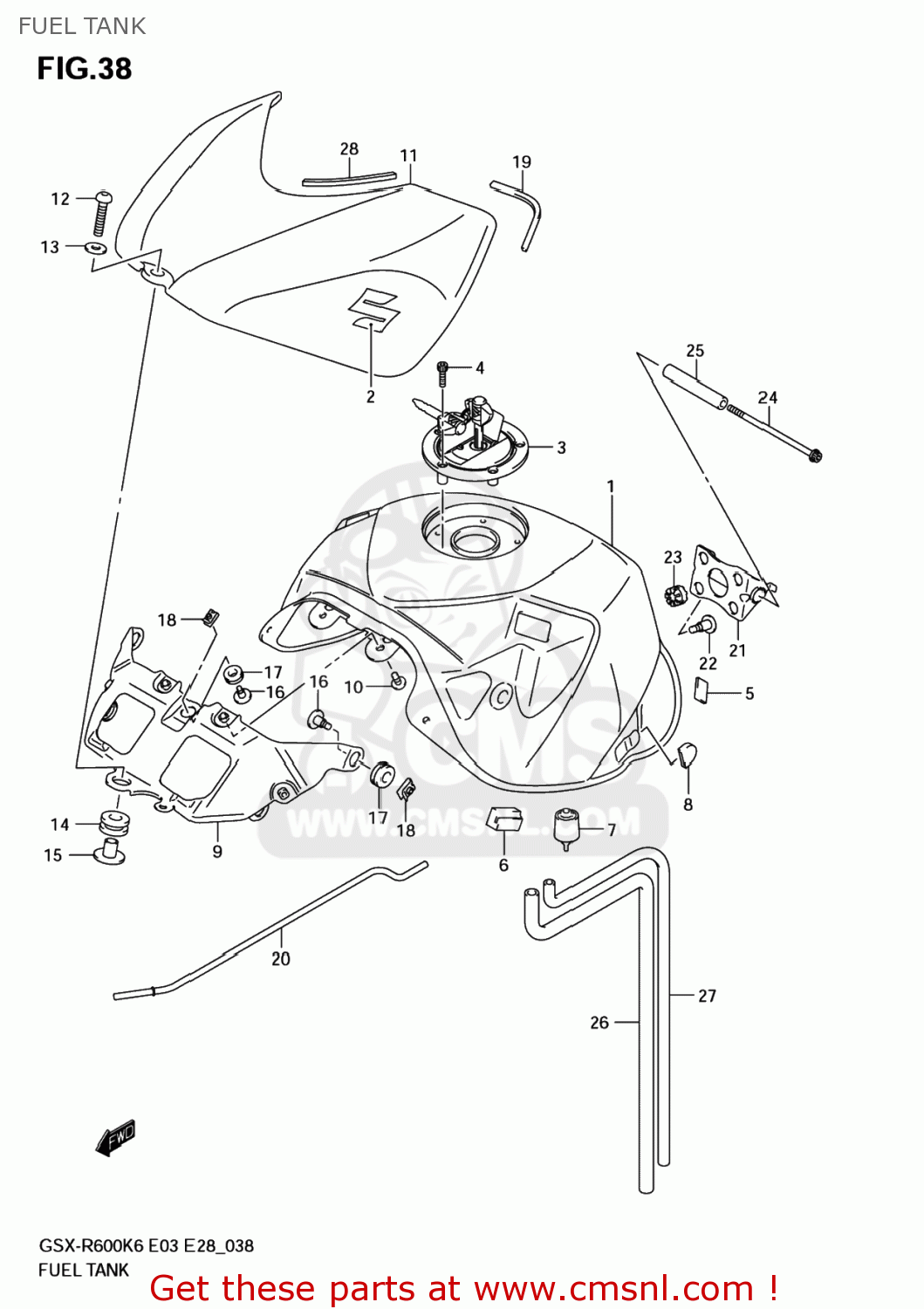

FUEL TANK

ref

part #

description

quantity

1-1

4410001H00YHH
ref: 1-1

TANK ASSY,FUEL(RED)

€ 0.00

1-2

4410001H00019
ref: 1-2

TANK ASSY,FUEL(BLACK)

€ 764.00

1-3

4410001H00YKY
ref: 1-3

TANK ASSY,FUEL(BLUE)

€ 764.00

1-4

4410001H00YD8
ref: 1-4

TANK ASSY,FUEL(SILVER)

€ 677.00

1-5

4410001H20YHH
ref: 1-5

TANK ASSY,FUEL(RED)

€ 0.00

1-6

4410001H20019
ref: 1-6

TANK ASSY,FUEL(BLACK)

€ 0.00

1-7

4410001H20YKY
ref: 1-7

TANK ASSY,FUEL(BLUE)

€ 764.00

1-8

4410001H20YD8
ref: 1-8

TANK ASSY,FUEL(SILVER)

€ 0.00

2

6811118G20
ref: 2

EMBLEM,S

€ 22.50

3-1

4420016850
ref: 3-1

CAP SET,FUEL TANK

€ 155.50

3-2

4420016860
ref: 3-2

CAP SET,FUEL TANK

€ 0.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

4457213G00
ref: 5

FASTENER

€ 6.00

6

4454133E00
ref: 6

CUSHION,FUEL TANK SIDE

€ 20.50

7

4454241G00
ref: 7

CUSHION,FUEL TANK RR

€ 7.00

8

0932918001
ref: 8

CUSHION

€ 2.50

9

4452001H00
ref: 9

BRACKET,FUEL TANK FR

€ 51.00

10

0913906122
ref: 10

SCREW(6X10)

€ 3.00

11-1

4429101H00YHH
ref: 11-1

COVER,FUEL TANK FR

€ 579.00

11-2

4429101H00019
ref: 11-2

COVER,FUEL TANK FR

€ 485.50

11-3

4429101H00YKY
ref: 11-3

COVER,FUEL TANK FR

€ 526.00

11-4

4429101H00YD8
ref: 11-4

COVER,FUEL TANK FR

€ 125.50

12

0910608156
ref: 12

BOLT(8X37)

€ 8.50

13

0916008054
ref: 13

WASHER(8.5X20X1.6)

€ 1.50

14

0932012053
ref: 14

CUSHION

€ 7.50

15

0918008174A05
ref: 15
09180-08174

SPACER (8.6X12

€ 7.00

16

0913905078
ref: 16

SCREW(5X16.4)

€ 3.50

17

0932008021
ref: 17

CUSHION

€ 4.00

18

0914805052
ref: 18

NUT

€ 3.50

19

4427701H00
ref: 19

CUSHION,FUEL TANK COVER

€ 4.50

20

4457435F00
ref: 20

STAY,FUEL TANK

€ 8.00

21

4453041G00
ref: 21

BRACKET,FUEL TANK NO.1

€ 21.50

22

0913906132
ref: 22
09139-06191

SCREW,FUEL TAN

€ 4.50

23

0932008071
ref: 23

CUSHION

€ 3.50

24

0910606119
ref: 24

BOLT(6X110)

€ 5.50

25

4456118G00
ref: 25

SPACER,FUEL TANK RR

€ 14.00

26

4442341G00
ref: 26

HOSE,TANK WATER DRAIN

€ 21.50

27

4442441G00
ref: 27

HOSE,TANK BREATHER

€ 21.50

28

4427801H00
ref: 28

CUSHION,TANK COVER

€ 3.50
