WATER PUMP
GSXR600 2006 (K6) USA (E03)

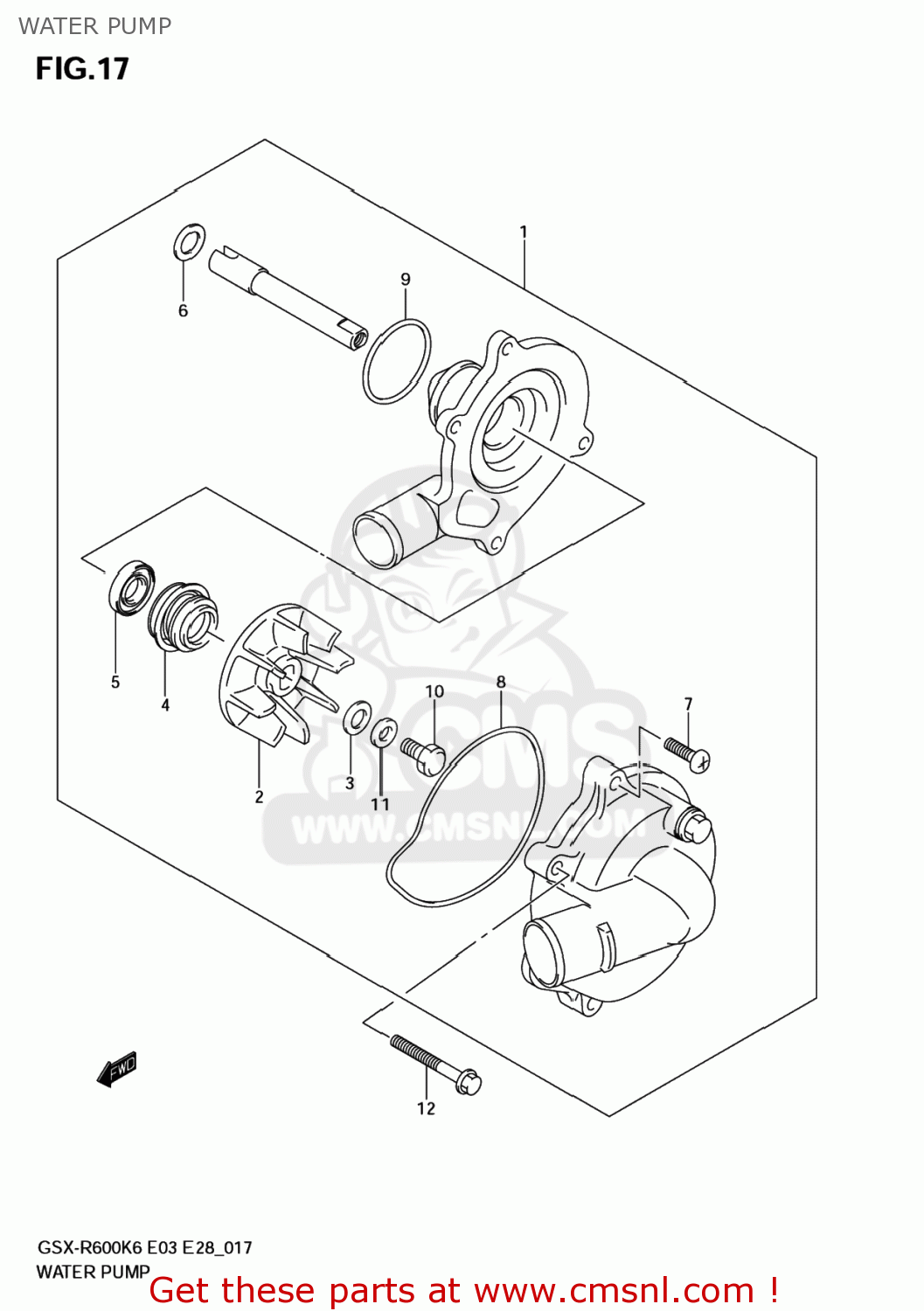

Water pump diagram GSXR600 2006 (K6) USA (E03)
WATER PUMP GSXR600 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740001H00E00
ref: 1
17400-01H00
PUMP ASSY,WATE
€ 303.50
2
1749101H00
ref: 2
IMPELLER
€ 17.00
3
0916806025
ref: 3
GASKET(6X15X2.2) (NAS)
€ 3.00
4
1747002F10
ref: 4
SEAL,MECHANICAL
€ 21.50
5
1746101H00
ref: 5
SEAL,OIL
€ 15.50
6
0918110167
ref: 6
SHIM(10X18X1)
€ 3.00
7
0211206163
ref: 7
02112-0616A
SCREW 6X16
€ 2.00
8
1741833400
ref: 8
O RING
€ 4.00
9
1743533400
ref: 9
O RING,WATER PUMP HOLDER
€ 13.00
10
0910006099
ref: 10
BOLT(6X13)
€ 2.00
11
0916406006
ref: 11
WASHER
€ 2.50
12
015470635A
ref: 12
BOLT
€ 3.00
