OIL COOLER

GSXR600 2006 (K6) USA (E03)

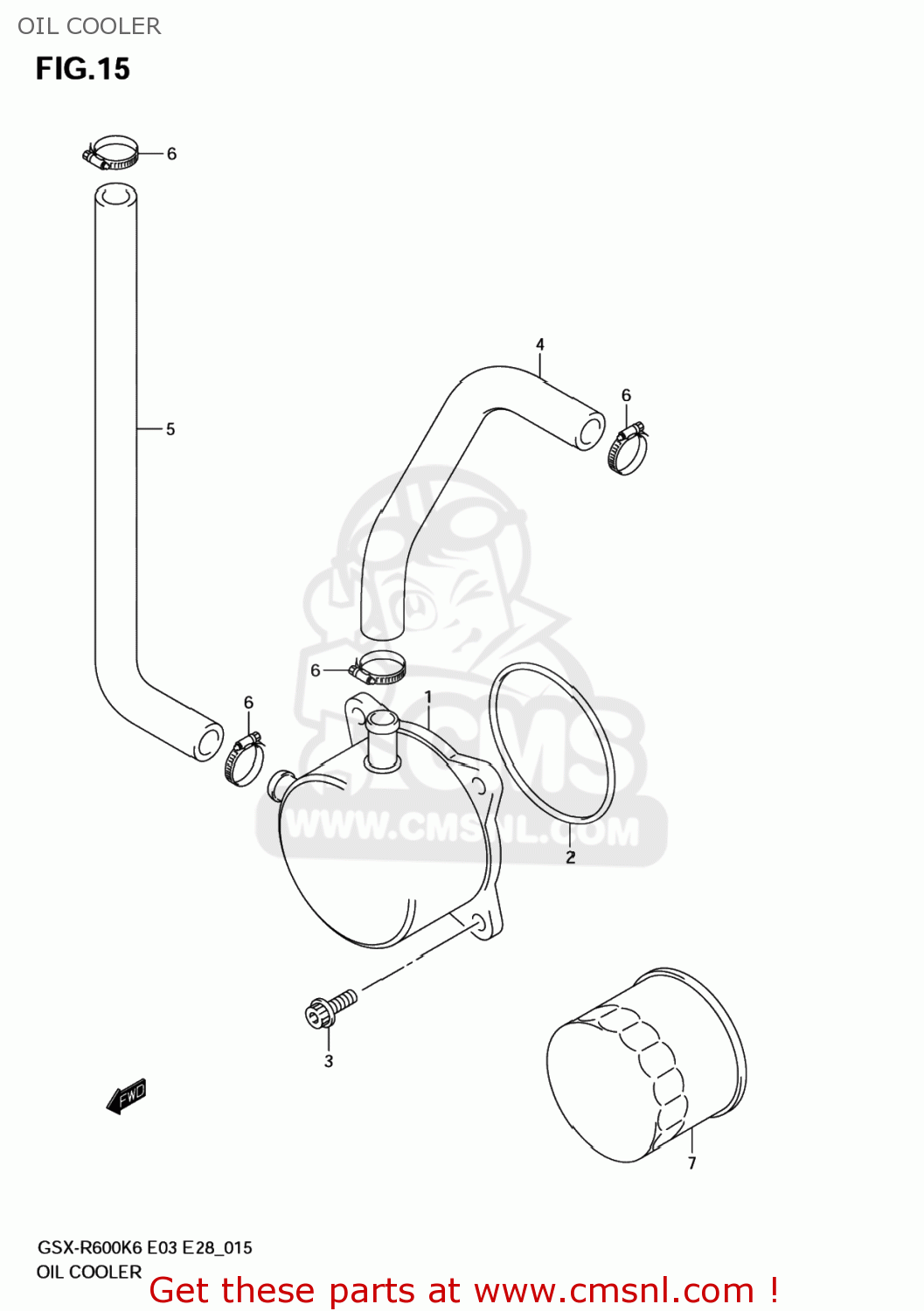

Oil cooler diagram GSXR600 2006 (K6) USA (E03)

OIL COOLER GSXR600 2006 (K6) USA (E03)

OIL COOLER GSXR600 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660001H00
ref: 1

COOLER ASSY,OIL

€ 533.50

2

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

3

0910606099A05
ref: 3
09106-06099

BOLT (6X16)

€ 2.50

4

1646101H00
ref: 4

HOSE,OIL COOLER WATER INLET

€ 13.00

5

1647101H00
ref: 5

HOSE,OIL COOLER WATER OUTLET

€ 23.00

6

0940222511A05
ref: 6
09402-22512

CLAMP

€ 6.00

7

1651003G00X07
ref: 7
16510-07J00

FILTER ASSY,EN

€ 12.50
