STARTING MOTOR

GSXR600 2006 (K6) USA (E03)

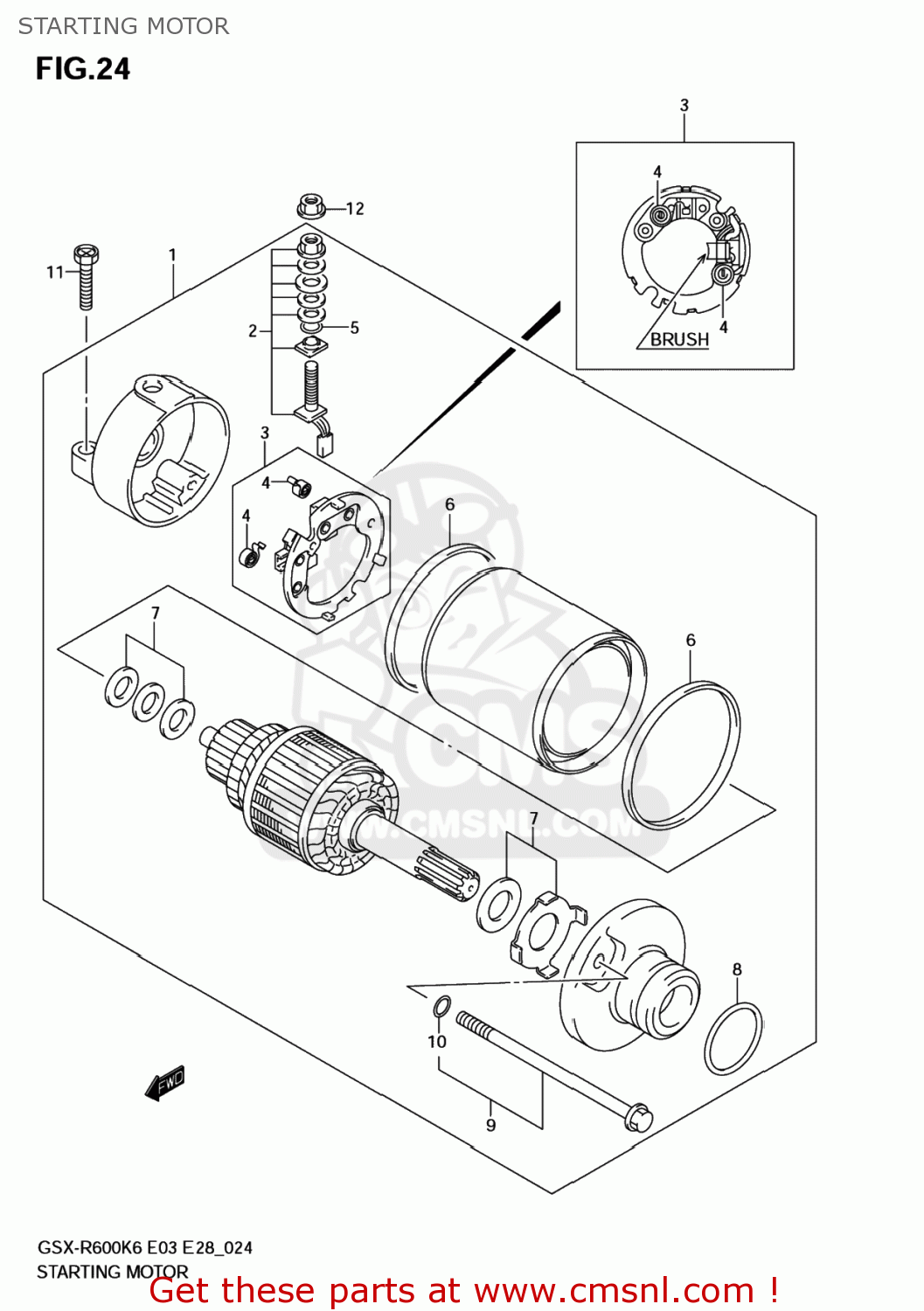

Starting motor diagram GSXR600 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110001H00
ref: 1

MOTOR ASSY,STARTING

€ 682.00

3113013E00
ref: 2

BRUSH TERMINAL SET

€ 42.50

3113213E00
ref: 3

BRUSH HOLDER SET

€ 47.50

3113531300
ref: 4

SPRING,BRUSH

€ 4.00

3114349040
ref: 5

O RING

€ 3.00

3126413E00
ref: 6

O RING

€ 6.00

3117019B10
ref: 7

SHIM SET,STARTING MOTOR

€ 8.00

0928024003
ref: 8

O RING(D:3,ID:24.5)

€ 2.00

3128013E00
ref: 9

BOLT

€ 16.50

3115613E00
ref: 10

O RING

€ 3.00

0912806024
ref: 11
09103-06212

SCREW (6X25)

€ 2.50

083613506A
ref: 12

NUT

€ 2.00

all assemblies
