EVAP SYSTEM (GSX-R600L4 E33)

GSXR600 2014 (L4) USA (E03)

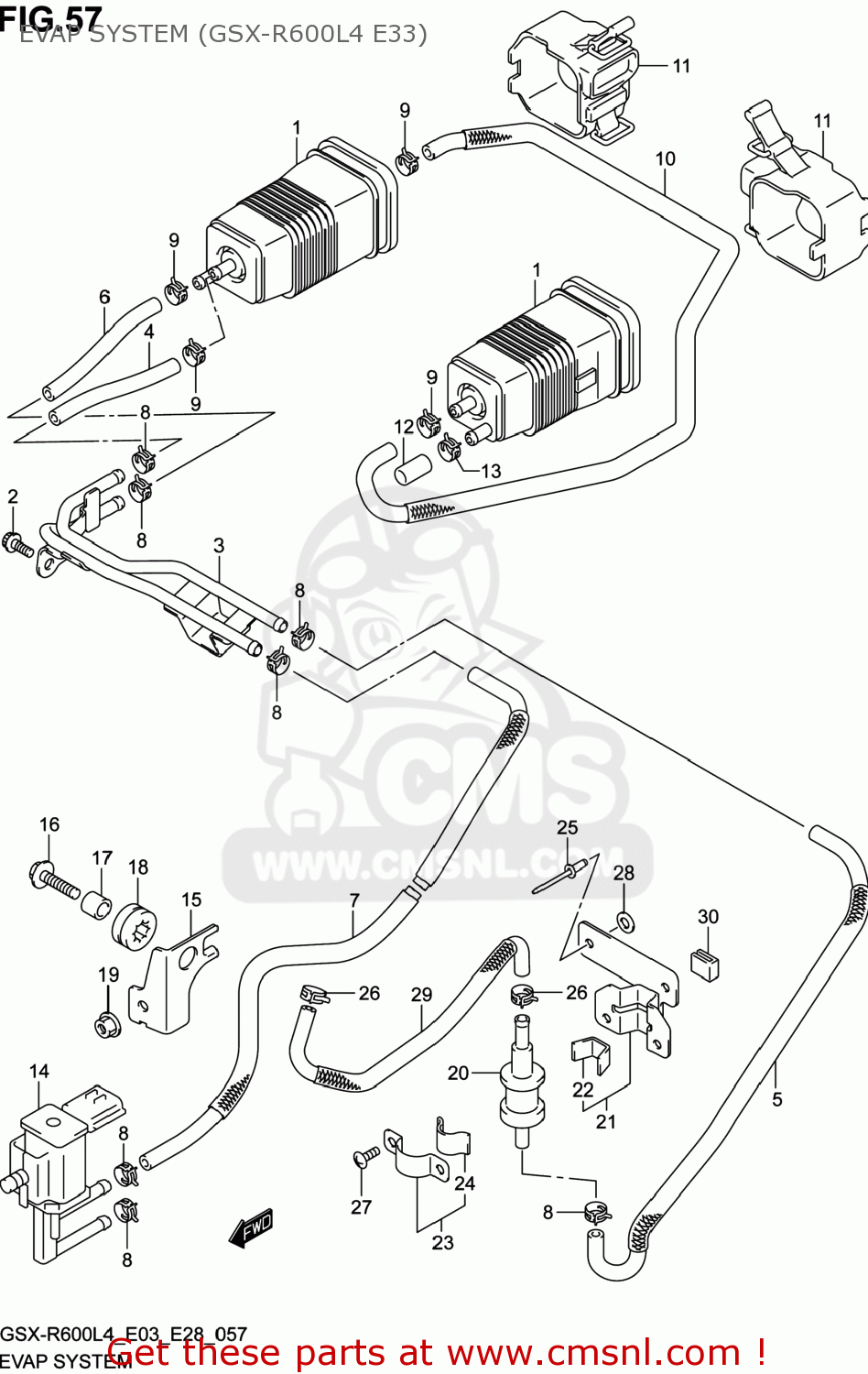

Evap system (gsx-r600l4 e33) diagram GSXR600 2014 (L4) USA (E03)

EVAP SYSTEM (GSX-R600L4 E33) GSXR600 2014 (L4) USA (E03)
EVAP SYSTEM (GSX-R600L4 E33) GSXR600 2014 (L4) USA (E03)
EVAP SYSTEM (GSX-R600L4 E33) GSXR600 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1856014J00
ref: 1
CANISTER ASSY,CHARCOAL
€ 115.50
2
071200612A
ref: 2
BOLT
071200612A
€ 3.50
3
1834014J00
ref: 3
PIPE,EVAP
€ 49.50
4
1856114J00
ref: 4
HOSE,SURGE NO.1
€ 14.50
5
1856214J00
ref: 5
HOSE,SURGE NO.2
€ 28.00
6
1856314J00
ref: 6
HOSE,PURGE NO.1
€ 14.50
7
1856414J00
ref: 7
HOSE,PURGE NO.2
€ 37.50
8
0940110409
ref: 8
CLIP
0940110409
€ 2.50
9
0940112404
ref: 9
CLIP
0940112404
€ 2.50
10
1856514J00
ref: 10
HOSE,CANISTER JOINT
€ 54.00
11
1857214J00
ref: 11
CUSHION,CANISTER
€ 13.50
12
0925107003
ref: 12
CAP,OD:11.5
0925107003
€ 2.00
13
0940111413
ref: 13
CLIP
0940111413
€ 2.50
14
1811752G00
ref: 14
VALVE ASSY,DUTY FOR PURGE
€ 66.00
15
1857114J00
ref: 15
BRACKET,PURGE VALVE
€ 7.00
16
0911606203
ref: 16
BOLT(6X30)
0911606203
€ 2.50
17
0918006319
ref: 17
SPACER(6.5X10X11.6)
0918006319
€ 3.50
18
0932010055
ref: 18
CUSHION
0932010055
€ 3.50
19
083161006A
ref: 19
NUT
083161006A
€ 2.50
20
4424038A00
ref: 20
VALVE,FUEL TANK BREATHER
4424038A00
€ 35.00
21
4489047H00
ref: 21
PLATE,BREATHER VALVE
€ 17.50
22
4489424A00
ref: 22
CUSHION
4489424A00
€ 1.50
23
4489224A00
ref: 23
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
24
4489424A00
ref: 24
CUSHION
4489424A00
€ 1.50
25
0922904038
ref: 25
RIVET
0922904038
€ 3.00
26
0940111413
ref: 26
CLIP
0940111413
€ 2.50
27
021420408A
ref: 27
SCREW
€ 1.00
28
083220104A
ref: 28
WASHER
083220104A
€ 5.00
29
4443437H00
ref: 29
HOSE,TANK & BREATHER VALVE
€ 31.00
30
4489424A00
ref: 30
CUSHION
4489424A00
€ 1.50
